Wastewater/Activity/PacpInspection/1.0Nov 29, 2016, 06:32 PM
29 0306_29 0314_11292016_122819.mp4
- Date
- 11/29/2016
- W/O
- 0607759
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z01015
- PipeID
- P24329
- Time
- 10:32 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7283
- Sewer Name
- 29 EASTSIDE INTERCEPTOR SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20161129DF_EASTSIDE_INTERCEPTOR_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0314
- Downstream MH
- 29 0306
- Dir. of Survey
- Upstream
- Length Surveyed
- 352.1 ft.
- Total Length
- 352.1 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

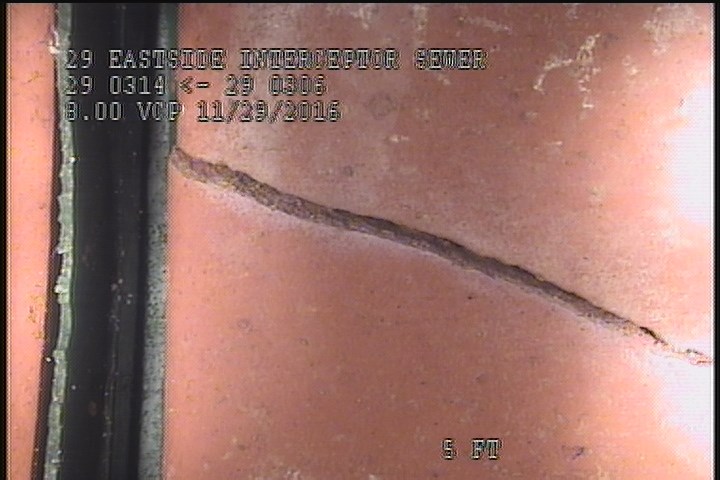

5 ft. - Broken, from 12 to 03 o'clock, within 8 inches of joint: YES

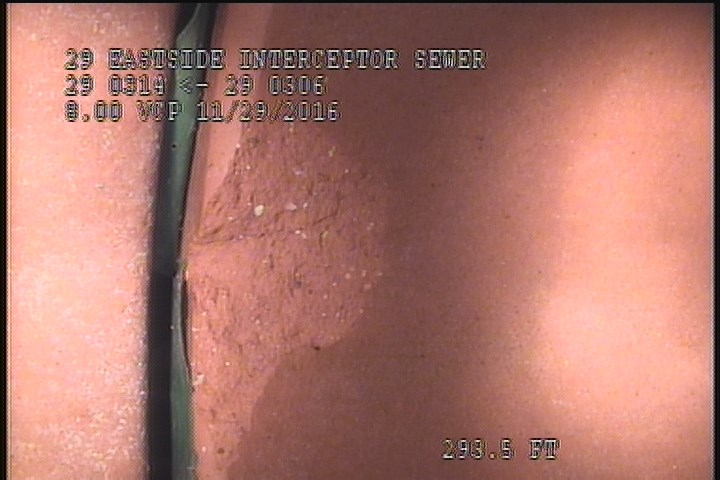

293.5 ft. - General Observation - CHIPPING @ 9 O'CLOCK

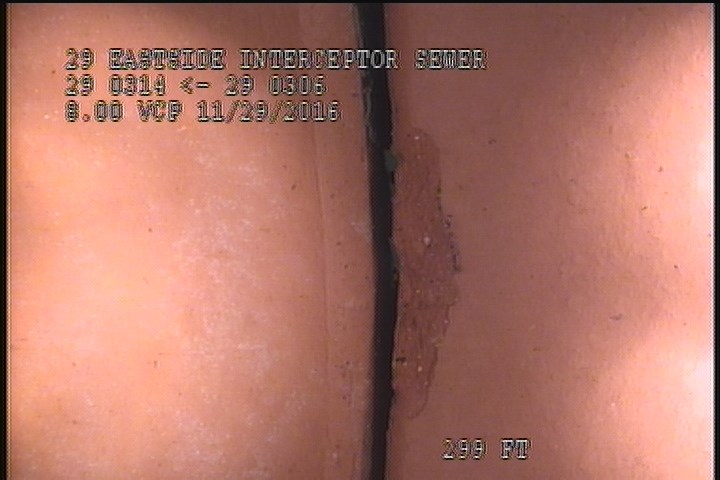

299 ft. - General Observation - CHIPPING @ 2 O'CLOCK
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 293.5 | MGO | CHIPPING @ 9 O'CLOCK |
| 0 | MWL | — |
| 299 | MGO | CHIPPING @ 2 O'CLOCK |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. OPEN |
| 0 | MWM | — |
| 5 | B | — |
| 0 | AMH | 12:34 PM |
| 352.1 | AMH | 12:54 PM |
Properties (3)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-11-29T10:32:34-08:00
