Wastewater/Activity/PacpInspection/1.0Nov 28, 2016, 12:52 PM
02 0090_02 0005_11282016_061121.mp4
- Date
- 11/28/2016
- W/O
- 0602393
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00237
- PipeID
- P02256
- Time
- 4:52 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0345
- Sewer Name
- 02 BELLFLOWER TRUNK
- City
- BELLFLOWER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- 20161128MDM_BELLFLOWER_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 02 0090
- Downstream MH
- 02 0005
- Dir. of Survey
- Downstream
- Length Surveyed
- 19.7 ft.
- Total Length
- 19.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

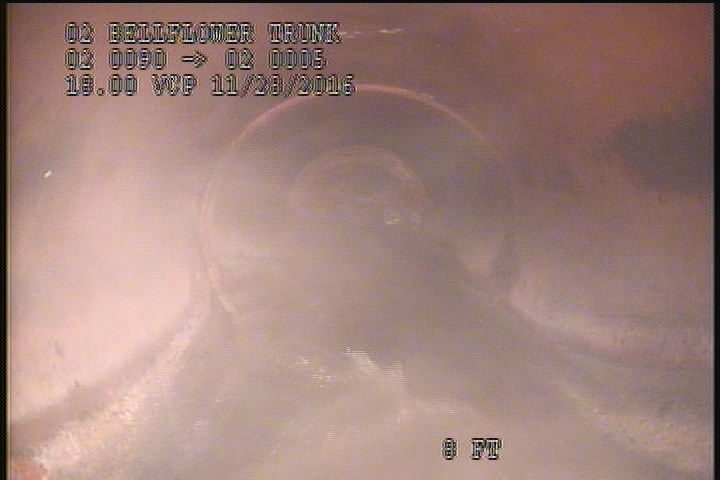

0.4 ft. - General Observation - 18" VCP

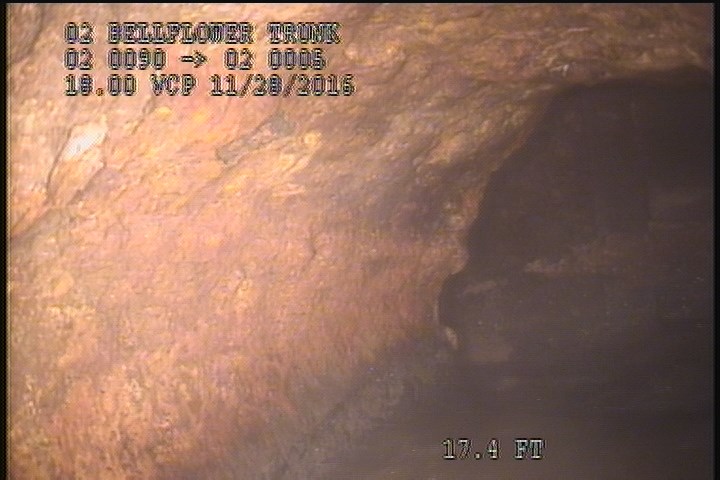

17.4 ft. - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: NO - 30% LOSS

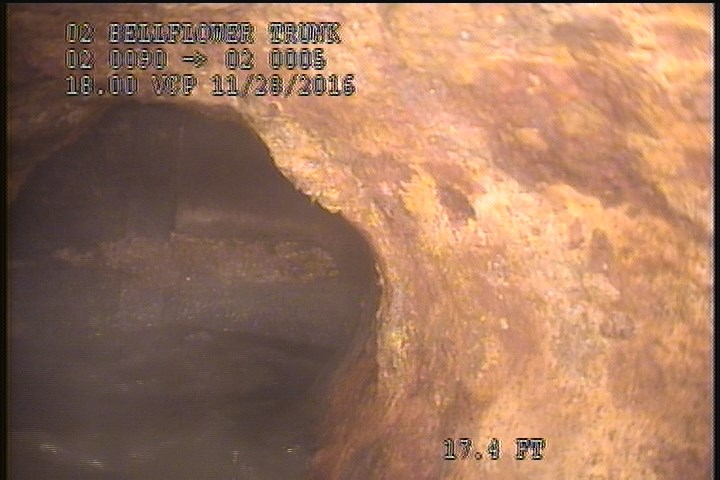

17.4 ft. - Material Change, Cast Iron
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0.4 | MGO | 18" VCP |
| 19.7 | AMH | 6:10AM |
| 0 | MWM | — |
| 0 | MWL | — |
| 17.4 | SCP | 30% LOSS |
| 0 | AMH | 5:50AM |
| 17.4 | MMC | — |
Properties (2)
- customer
- LACSD
- datetime
- 2016-11-28T04:52:01-08:00
