Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 28, 2016, 12:48 PM

  • 02 0092_02 0091_11282016_045833.mp4

Date
11/28/2016
W/O
0602393
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00237
PipeID
P02258
Time
4:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0345
Sewer Name
02 BELLFLOWER TRUNK
City
BELLFLOWER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
38
Purpose
Routine Assessment
Project
20161128MDM_BELLFLOWER_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 0092
Downstream MH
02 0091
Dir. of Survey
Downstream
Length Surveyed
321.7 ft.
Total Length
321.7 ft.
Structural Index
2
Structural Quick
312A
Structural Rating
23
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 02 0092 to 02 0091
MH: 02 0092MH: 02 0091downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN0 ft. AMH - Upstream Manhole, Survey Begins - 4:50AM6.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT6.5 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT46.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open74.8 ft. MGO - General Observation - 18"VCP74.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active94.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start121.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open125.7 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT125.7 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT181.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped184.7 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H210.5 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H221.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open226 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL238.4 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SL238.4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL238.4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H254.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL270.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped321.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish321.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active321.7 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (2)

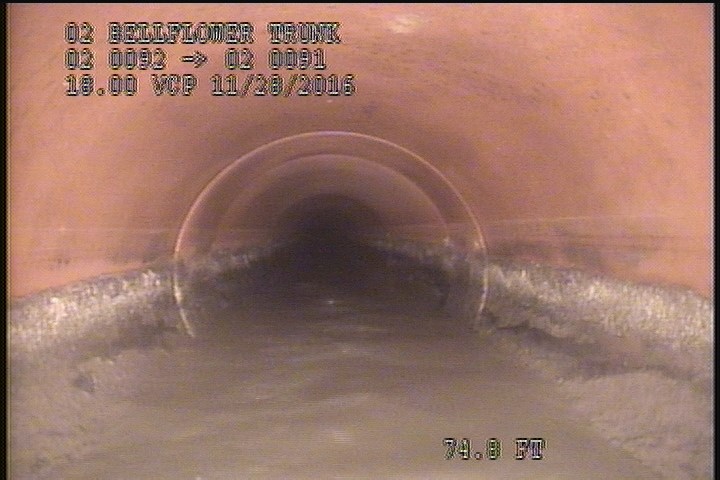

  • General Observation - 18"VCP

    74.8 ft. - General Observation - 18"VCP

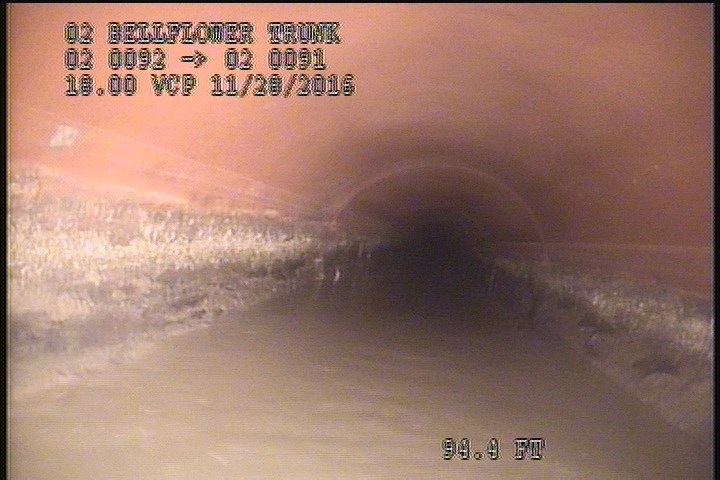

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    94.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P02258Work order 0602393

Observations (26)

DistanceCodeObservation
125.7FCSLIGHT
270.9TFCCapped
321.2DAGS—
0MWM—
46.4TFOpen
321.2MGOConn. @ Mh, 3 O' Clock. Active
238.4FCSL
221.9TFOpen
6.5FCSLIGHT
238.4FCSL
121.4TFOpen
0MWL—
6.5FCSLIGHT
226FCSL
184.7FCH
0MGOConn. @ Mh, 9 O' Clock. OPEN
210.5FCH
94.4DAGS—
238.4FCH
0AMH4:50AM
181.2TFCCapped
254.1FLSL
125.7FCSLIGHT
321.7AMH5:20AM
74.8MGO18"VCP
74.8TFActive
