Wastewater/Activity/PacpInspection/1.0Nov 19, 2016, 01:43 PM
H 1335_H 1334_11192016_060934.mp4
- Date
- 11/19/2016
- W/O
- 0602267
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01184
- PipeID
- P25878
- Time
- 5:43 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0350
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L RELIEF
- City
- AZUSA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20161119MDM_JOINT_OUTFALL_H_UNIT_8L_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- H 1335
- Downstream MH
- H 1334
- Dir. of Survey
- Downstream
- Length Surveyed
- 507.6 ft.
- Total Length
- 507.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

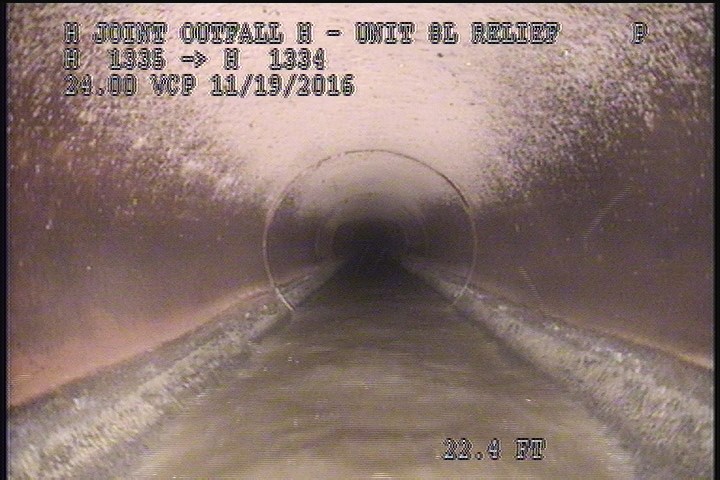

3.1 ft. - General Observation - WHITE THIN SUBSTANCE ON PIPE

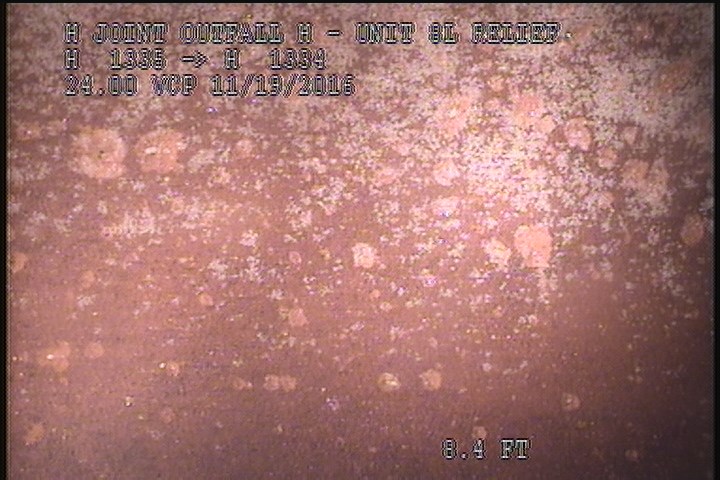

8.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - THIN TOP LAYER BLISTERING SPORATIC SPORATIC
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 6:10AM |
| 507.3 | SSS | BLISTERING THIN OUTER LAYER SPORATIC |
| 0 | MWM | — |
| 507.6 | AMH | 6:35AM |
| 3.1 | MGO | WHITE THIN SUBSTANCE ON PIPE |
| 0 | MWL | — |
| 8.4 | SSS | THIN TOP LAYER BLISTERING SPORATIC SPORATIC |
Properties (4)
- custom_field_three
- SPALLING
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-19T05:43:23-08:00
