Wastewater/Activity/PacpInspection/1.0Nov 19, 2016, 11:11 AM
H 1336_H 1335_11192016_044221.mp4
- Date
- 11/19/2016
- W/O
- 0602267
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01184
- PipeID
- P25879
- Time
- 3:11 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0349
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L RELIEF
- City
- AZUSA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20161119MDM_JOINT_OUTFALL_H_UNIT_8L_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- H 1336
- Downstream MH
- H 1335
- Dir. of Survey
- Downstream
- Length Surveyed
- 541.4 ft.
- Total Length
- 541.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

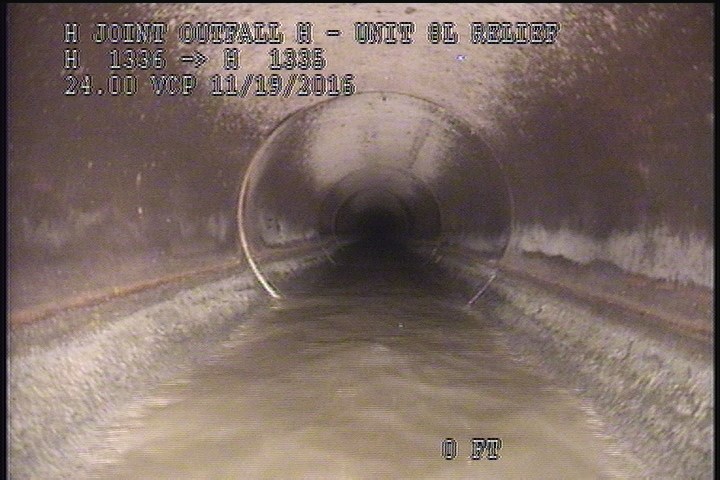

2 ft. - General Observation - WHITE THIN SUBSTANCE ON PIPE

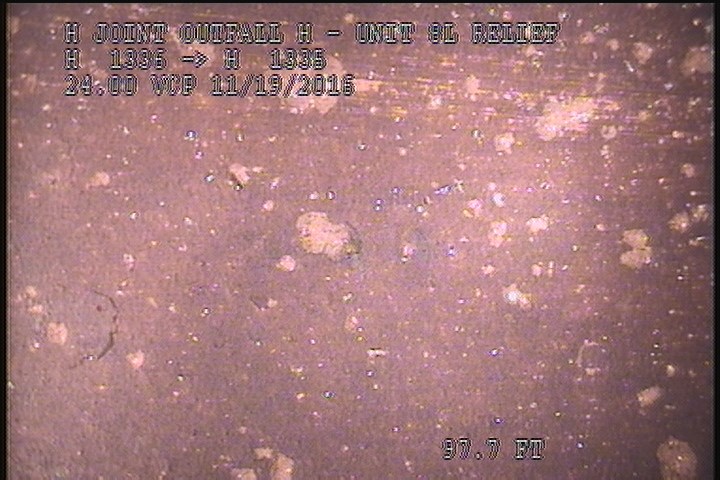

97.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - THIN BLISTERING OUTER LAYER
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 410.4 | MGO | 24" VCP |
| 541.4 | SSS | YHIN BLISTERING OUTER LAYER |
| 0 | MWL | — |
| 2 | MGO | WHITE THIN SUBSTANCE ON PIPE |
| 541.4 | AMH | 5:15AM |
| 97.7 | SSS | THIN BLISTERING OUTER LAYER |
| 0 | AMH | 4:45AM |
Properties (4)
- custom_field_three
- SPALLING
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-19T03:11:25-08:00
