Wastewater/Activity/PacpInspection/1.0Nov 19, 2016, 08:46 AM
H 1338_H 1337_11192016_012842.mp4
- Date
- 11/19/2016
- W/O
- 0602267
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01184
- PipeID
- P25882
- Time
- 12:46 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0349
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L RELIEF
- City
- AZUSA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20161119MDM_JOINT_OUTFALL_H_UNIT_8L_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- H 1339
- Downstream MH
- H 1338
- Dir. of Survey
- Downstream
- Length Surveyed
- 216.7 ft.
- Total Length
- 216.7 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (4)
20.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start - THIN OUTER SURFACE

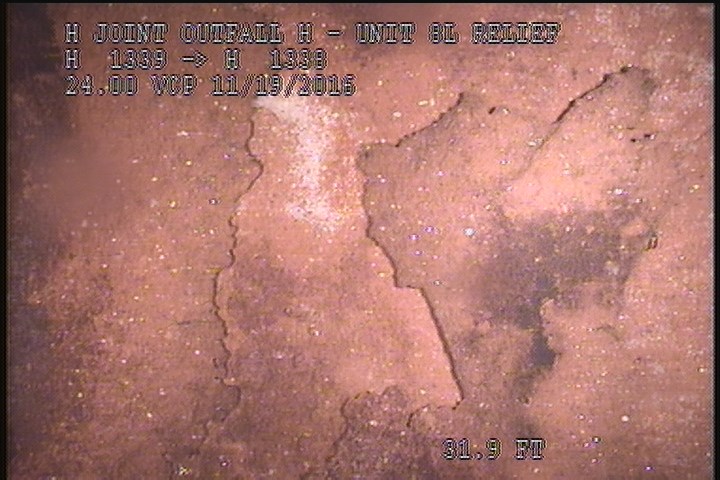

31.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - THIN OUTER SUFACE LAYERS

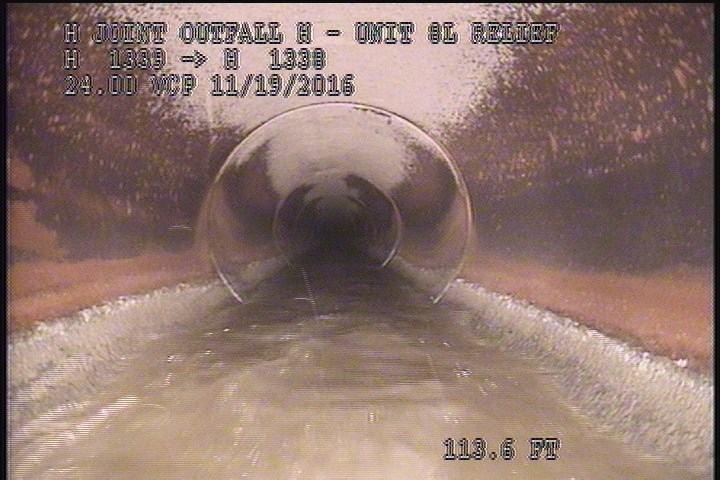

113.6 ft. - General Observation - 24" VCP

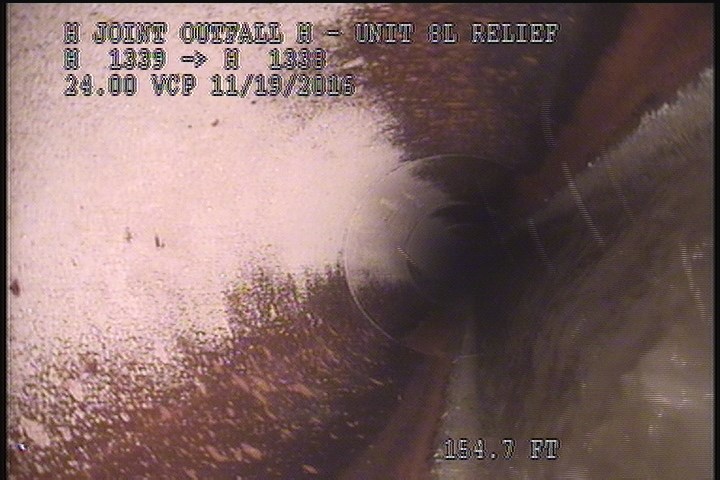

154.7 ft. - General Observation - THIN WHITE SUBATANCE ON PIPE
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 154.7 | MGO | THIN WHITE SUBATANCE ON PIPE |
| 0 | AMH | 12:50AM |
| 0 | MWM | — |
| 0 | MWL | — |
| 216.1 | SSS | THIN MULTI LAYER PEELING |
| 31.9 | SSS | THIN OUTER SUFACE LAYERS |
| 216.7 | AMH | 1:15AM |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 20.1 | SSS | THIN OUTER SURFACE |
| 113.6 | MGO | 24" VCP |
Properties (5)
- custom_field_three
- SPALLING MULTI LAYER
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-19T00:46:27-08:00
- year_laid
- 20080424
