Wastewater/Activity/PacpInspection/1.0Nov 30, 2016, 07:34 AM
29 0716_29 0715_11292016_234253.mp4
- Date
- 11/29/2016
- W/O
- 0602254
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00527
- PipeID
- P24222
- Time
- 11:34 PM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0348
- Sewer Name
- 29 ALAMITOS PUMPING PLANT TRUNK
- City
- SIGNAL HILL
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20161118MDM_ALAMITOS_PUMPING_PLANT
- Material
- Ductile Iron Pipe
- Shape
- Circular
- Height
- 16 in.
- Upstream MH
- 29 0716
- Downstream MH
- 29 0715
- Dir. of Survey
- Downstream
- Length Surveyed
- 20.7 ft.
- Total Length
- 20.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

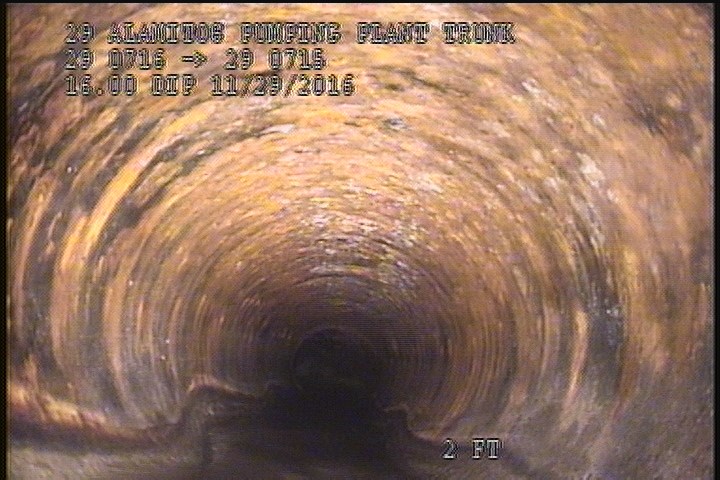

2 ft. - General Observation - 16" VCP

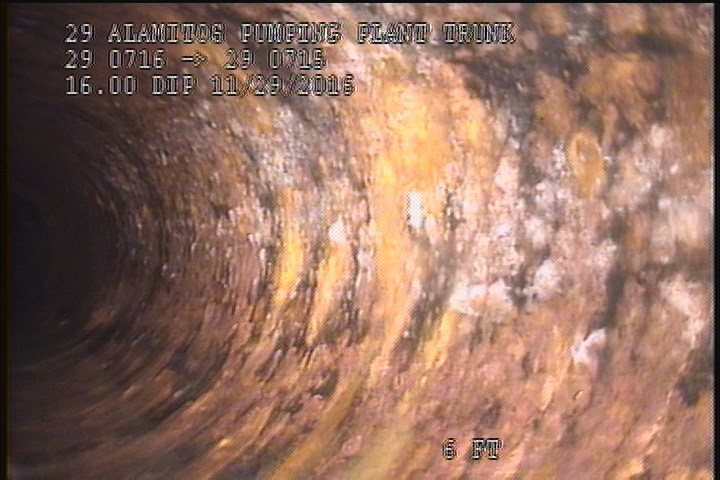

2 ft. - Surface Corrosion Metal Pipe, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - 5% LOSS 9:00 TO 3:00

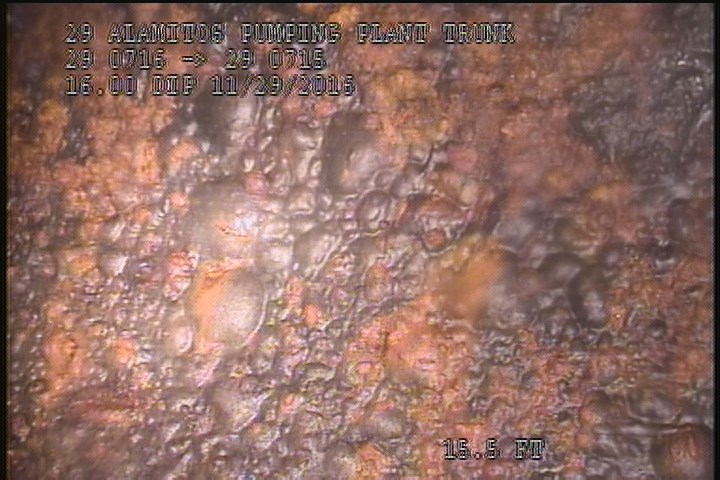

15.5 ft. - General Observation - BLISTERING
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | 16" VCP |
| 20.7 | AMH | 12:00AM |
| 15.5 | MGO | BLISTERING |
| 2 | SCP | 5% LOSS 9:00 TO 3:00 |
| 0 | MWM | — |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 0 | MWL | — |
| 0 | AMH | 11:45pm |
| 16 | SCP | 5% LOSS 9:00 TO 3:00 |
Properties (4)
- custom_field_three
- 5% MATERIAL LOSS
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-29T23:34:41-08:00
