Wastewater/Activity/PacpInspection/1.0Nov 18, 2016, 01:15 PM
29 0726_29 0725_11182016_051210.mp4
- Date
- 11/18/2016
- W/O
- 0602254
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00527
- PipeID
- P24232
- Time
- 5:15 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0348
- Sewer Name
- 29 ALAMITOS PUMPING PLANT TRUNK
- City
- SIGNAL HILL
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20161118MDM_ALAMITOS_PUMPING_PLANT
- Material
- Ductile Iron Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 29 0726
- Downstream MH
- 29 0725
- Dir. of Survey
- Downstream
- Length Surveyed
- 208.4 ft.
- Total Length
- 208.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (4)

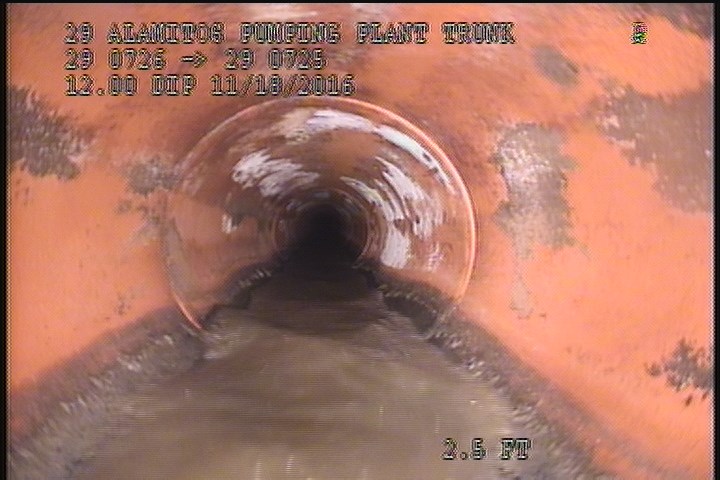

2 ft. - Material Change, Vitrified clay pipe

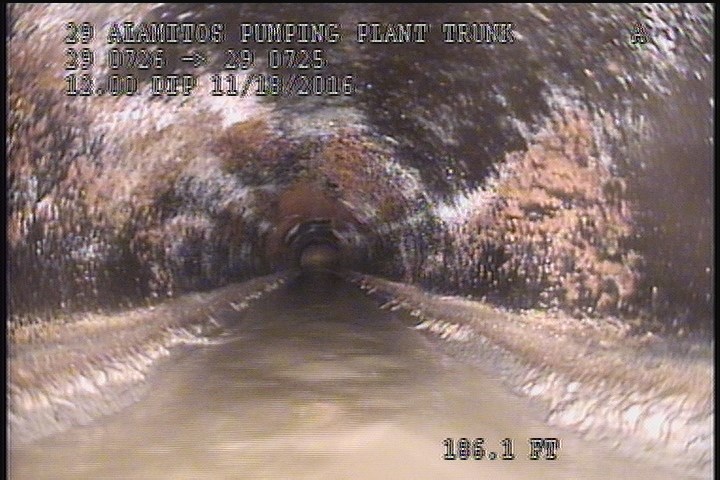

186.1 ft. - Material Change, Dictile Iron

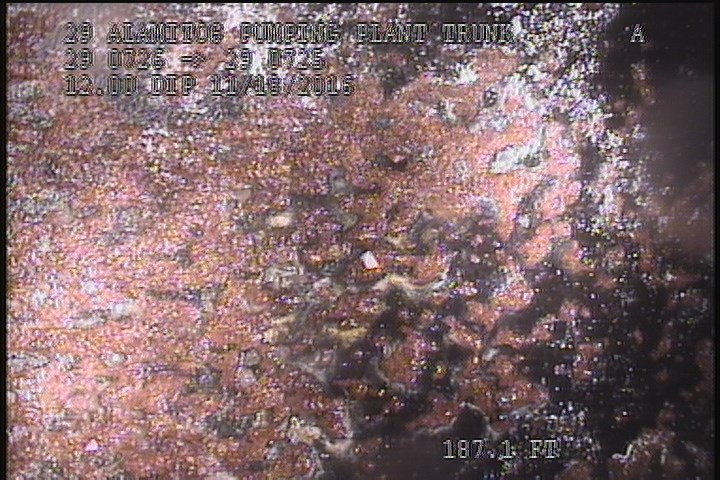

187.1 ft. - General Observation - SLIGHT WEAR ON PIPE

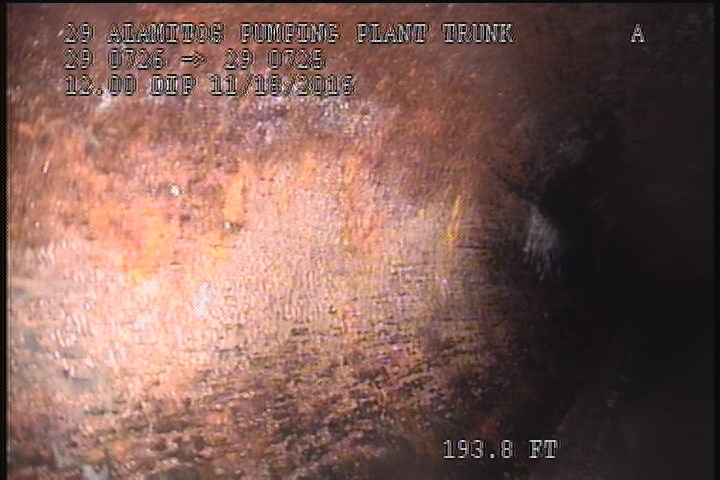

193.8 ft. - General Observation - SLIGHT WEAR ON PIPE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 187.1 | MGO | SLIGHT WEAR ON PIPE |
| 193.8 | MGO | SLIGHT WEAR ON PIPE |
| 0 | AMH | 5:15AM |
| 186.1 | MMC | — |
| 0 | MWM | — |
| 208.4 | AMH | 5:35AM |
| 0 | MWL | — |
| 2 | MMC | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-18T05:15:00-08:00
