Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 18, 2016, 11:39 AM

  • 29 0727_29 0726_11182016_044703.mp4

Date
11/18/2016
W/O
0602254
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00527
PipeID
P24233
Time
3:39 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0348
Sewer Name
29 ALAMITOS PUMPING PLANT TRUNK
City
SIGNAL HILL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
20161118MDM_ALAMITOS_PUMPING_PLANT
Material
Ductile Iron Pipe
Shape
Circular
Height
12 in.
Upstream MH
29 0727
Downstream MH
29 0726
Dir. of Survey
Downstream
Length Surveyed
327.6 ft.
Total Length
327.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 29 0727 to 29 0726
MH: 29 0727MH: 29 0726downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:50AM2.4 ft. MMC - Material Change, Vitrified clay pipe179.4 ft. MGO - General Observation - 12" VCP301.8 ft. MMC - Material Change, Dictile Iron304.3 ft. MGO - General Observation - SLIGHT WEAR ON PIPE327.6 ft. AMH - Downstream Manhole, Survey Ends - 5:10AM

Observation photos (4)

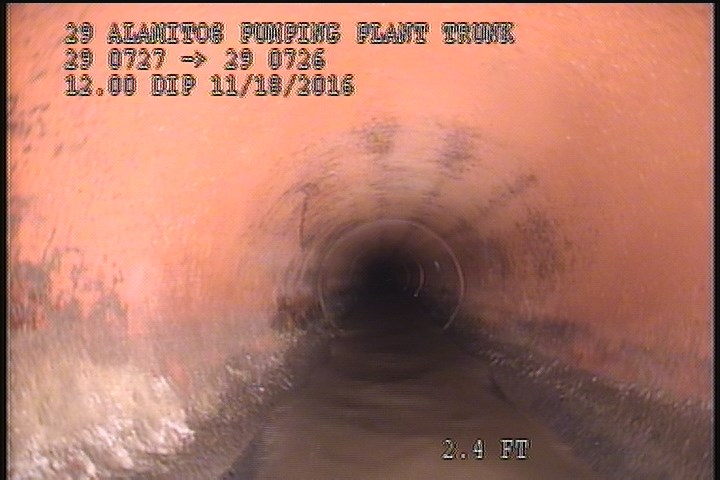

  • Material Change, Vitrified clay pipe

    2.4 ft. - Material Change, Vitrified clay pipe

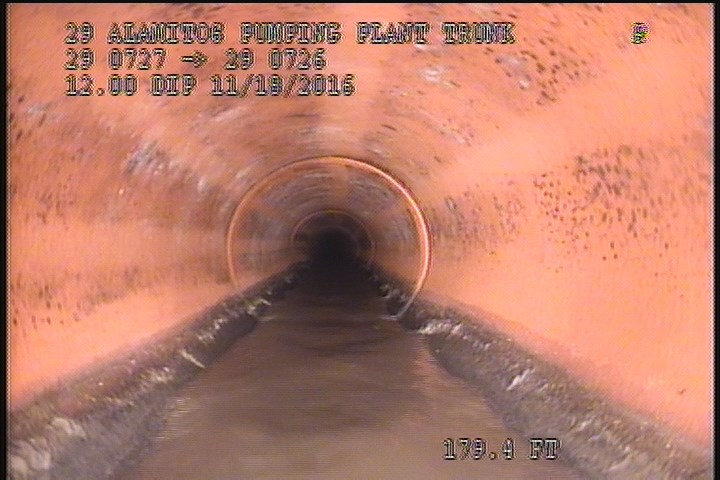

  • General Observation - 12" VCP

    179.4 ft. - General Observation - 12" VCP

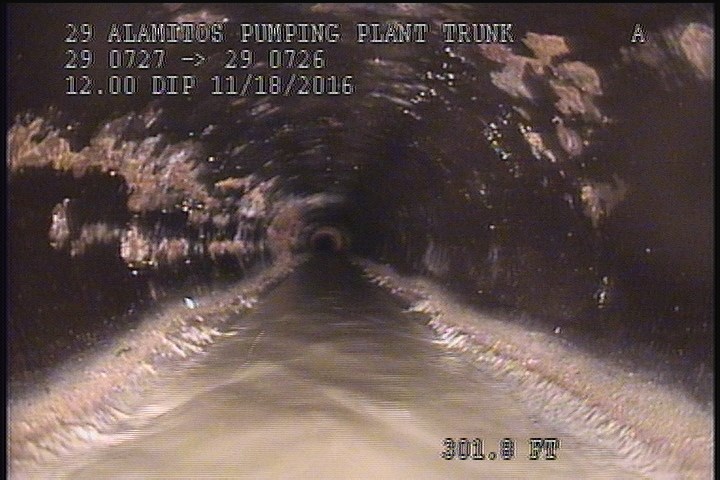

  • Material Change, Dictile Iron

    301.8 ft. - Material Change, Dictile Iron

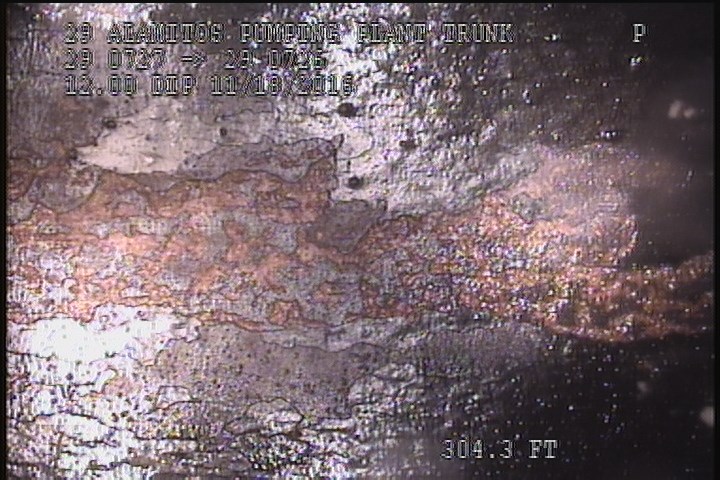

  • General Observation - SLIGHT WEAR ON PIPE

    304.3 ft. - General Observation - SLIGHT WEAR ON PIPE

All inspections of P24233Work order 0602254

Observations (9)

DistanceCodeObservation
179.4MGO12" VCP
327.6AMH5:10AM
304.3MGOSLIGHT WEAR ON PIPE
301.8MMC—
0MGOConn. @ Mh, 3 O' Clock. Active
2.4MMC—
0MWM—
0MWL—
0AMH4:50AM

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-11-18T03:39:20-08:00
