Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 18, 2016, 11:24 AM

  • 29 0729_29 0728_11182016_040339.mp4

Date
11/18/2016
W/O
0602254
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00527
PipeID
P24235
Time
3:24 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0348
Sewer Name
29 ALAMITOS PUMPING PLANT TRUNK
City
SIGNAL HILL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
20161118MDM_ALAMITOS_PUMPING_PLANT
Material
Ductile Iron Pipe
Shape
Circular
Height
12 in.
Upstream MH
29 0729
Downstream MH
29 0728
Dir. of Survey
Downstream
Length Surveyed
158.1 ft.
Total Length
158.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 29 0729 to 29 0728
MH: 29 0729MH: 29 0728downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:00AM3 ft. MMC - Material Change, Vitrified clay pipe28.5 ft. MGO - General Observation - 12" VCP139.3 ft. MMC - Material Change, Dictile Iron140.7 ft. MGP - General Photograph158.1 ft. AMH - Downstream Manhole, Survey Ends - 4:15AM

Observation photos (4)

  • Material Change, Vitrified clay pipe

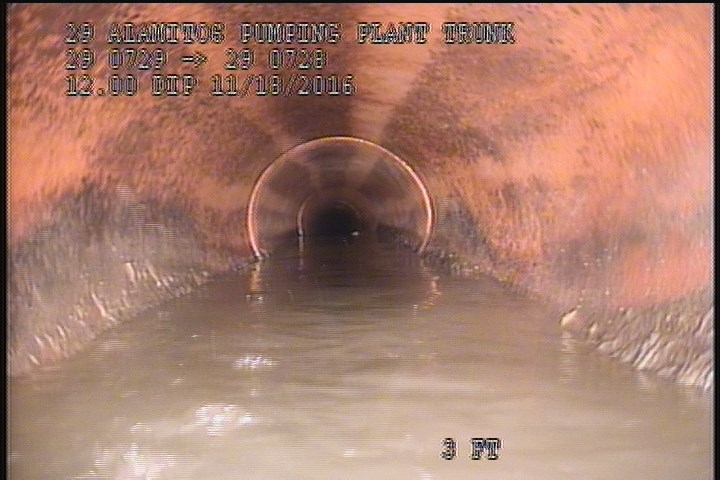

    3 ft. - Material Change, Vitrified clay pipe

  • General Observation - 12" VCP

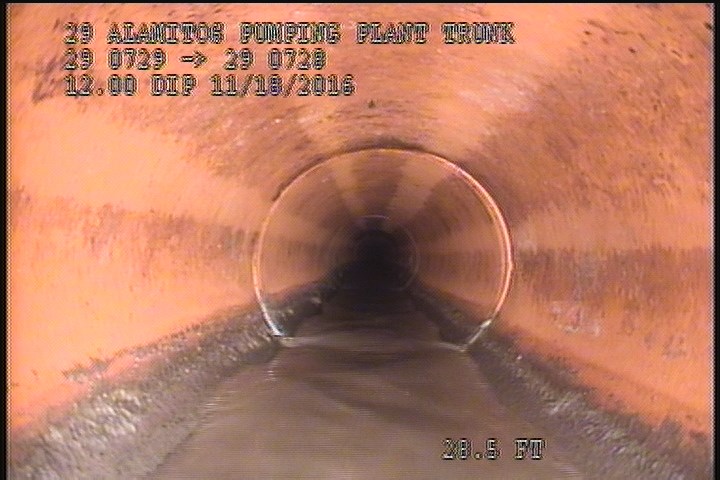

    28.5 ft. - General Observation - 12" VCP

  • Material Change, Dictile Iron

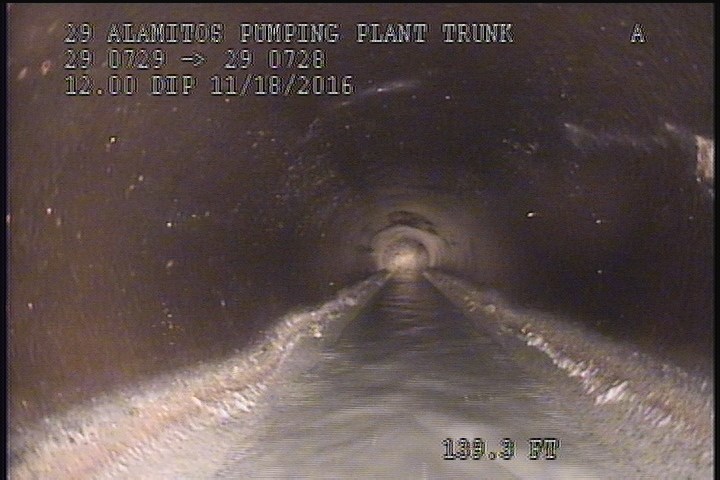

    139.3 ft. - Material Change, Dictile Iron

  • General Photograph

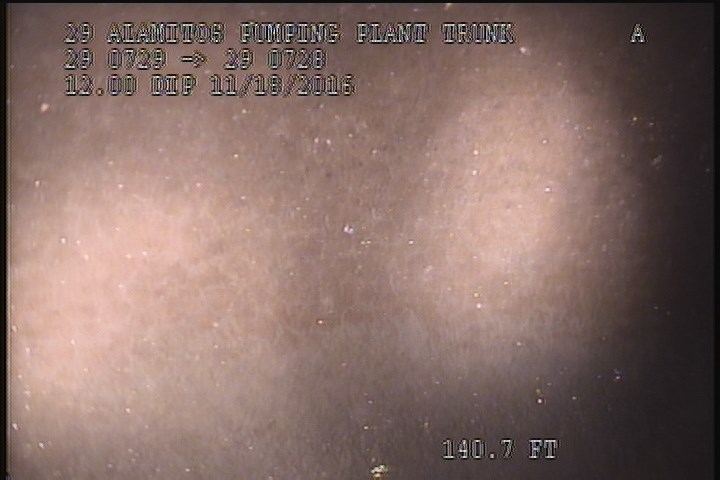

    140.7 ft. - General Photograph

All inspections of P24235Work order 0602254

Observations (9)

DistanceCodeObservation
0MWL—
158.1AMH4:15AM
0MGOConn. @ Mh, 3 O' Clock. OPEN
140.7MGP—
28.5MGO12" VCP
0MWM—
139.3MMC—
0AMH4:00AM
3MMC—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-11-18T03:24:49-08:00
