Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 18, 2016, 04:24 PM

  • 19 0033_19 0032_11182016_082634.mp4

Date
11/18/2016
W/O
0602259
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00727
PipeID
P15063
Time
8:24 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7279
Sewer Name
19 PALO VERDE TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
09
Purpose
Routine Assessment
Project
20161117AM_PALO_VERDE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
19 0033
Downstream MH
19 0032
Dir. of Survey
Downstream
Length Surveyed
399.6 ft.
Total Length
399.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 19 0033 to 19 0032
MH: 19 0033MH: 19 0032downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 8:26 AM2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - POSSIBLE SCALE ALSO208 ft. MWL - Water Level, 40 %of cross sectional area320.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Change - POSSIBLE SCALE ALSO348.8 ft. MWL - Water Level, 50 %of cross sectional area398.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish - POSSIBLE SCALE ALSO399.2 ft. MGO - General Observation - DEFECTIVE ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK, 35% DEBRIS, AND POSSIBLY BROKEN JUST PAST THE LINER399.6 ft. AMH - Downstream Manhole, Survey Ends - 8:47 AM

Observation photos (5)

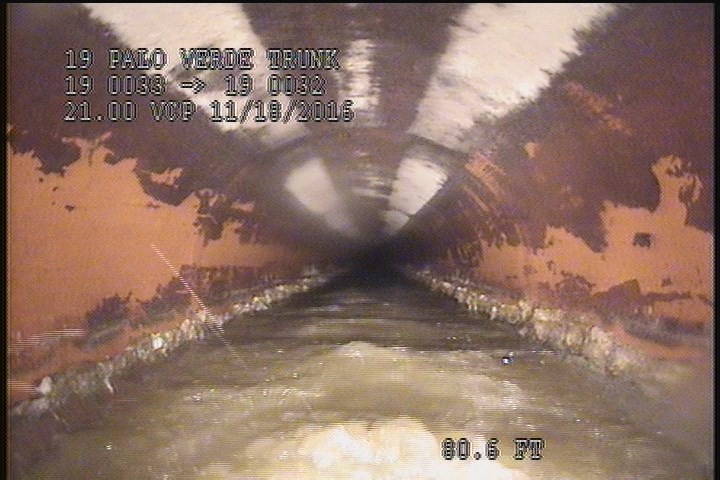

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - POSSIBLE SCALE ALSO

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - POSSIBLE SCALE ALSO

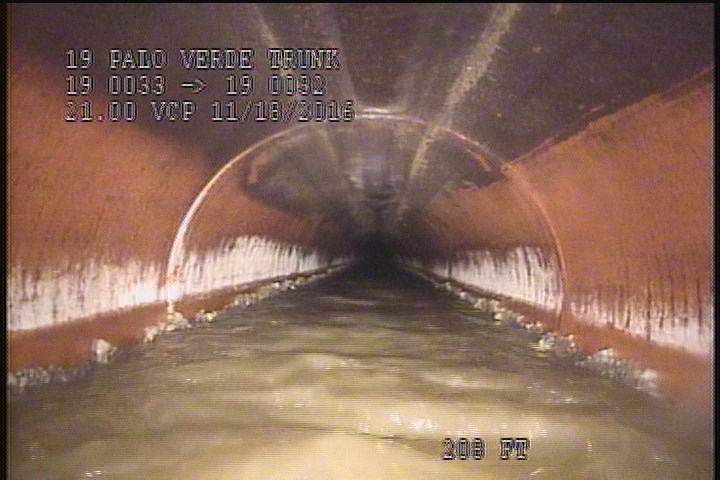

  • Water Level, 40 %of cross sectional area

    208 ft. - Water Level, 40 %of cross sectional area

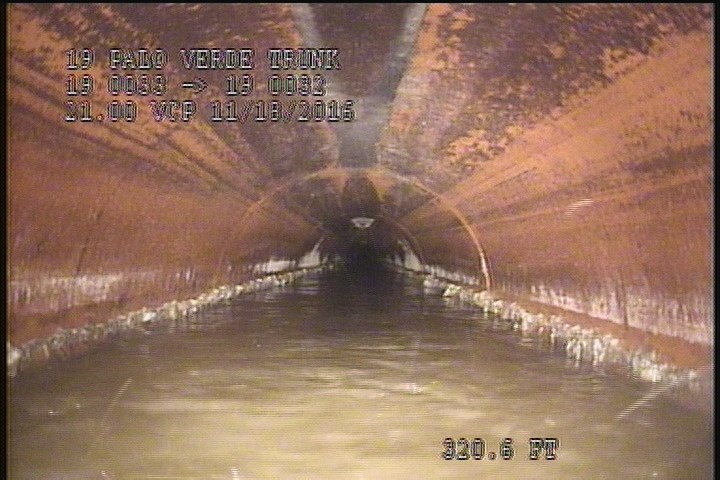

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Change - POSSIBLE SCALE ALSO

    320.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Change - POSSIBLE SCALE ALSO

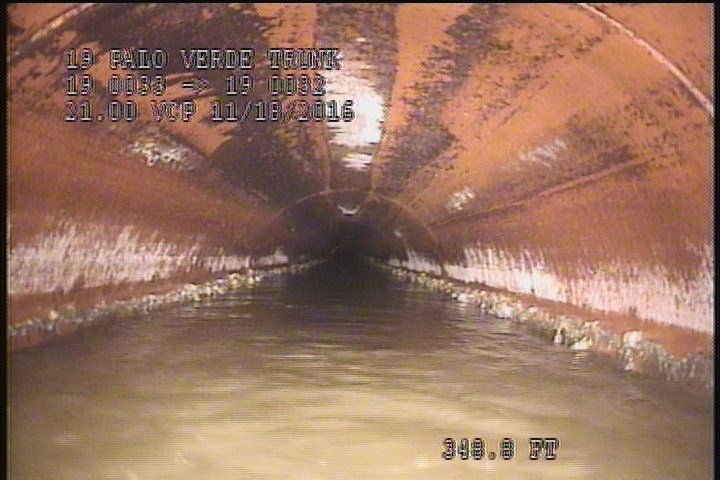

  • Water Level, 50 %of cross sectional area

    348.8 ft. - Water Level, 50 %of cross sectional area

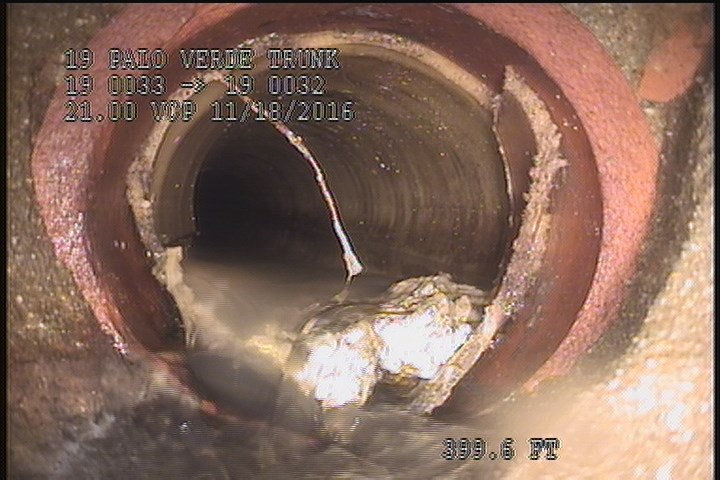

  • General Observation - DEFECTIVE ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK, 35% DEBRIS, AND POSSIBLY BROKEN JUST PAST THE LINER

    399.2 ft. - General Observation - DEFECTIVE ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK, 35% DEBRIS, AND POSSIBLY BROKEN JUST PAST THE LINER

All inspections of P15063Work order 0602259

Observations (10)

DistanceCodeObservation
320.6DAGSPOSSIBLE SCALE ALSO
399.2MGODEFECTIVE ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK, 35% DEBRIS, AND POSSIBLY BROKEN JUST PAST THE LINER
2DAGSPOSSIBLE SCALE ALSO
0MWL—
399.6AMH8:47 AM
208MWL—
0MWM—
398.3DAGSPOSSIBLE SCALE ALSO
0AMH8:26 AM
348.8MWL—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-11-18T08:24:14-08:00
