Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2016, 09:08 PM

  • 02 1578_02 1577_11162016_131209.mp4

Date
11/16/2016
W/O
PENDING
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00231
PipeID
P04029
Time
1:08 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7276
Sewer Name
02 ARIZONA AVENUE TRUNK, SECTION 2
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Maintenance Related
Project
20161116AM_ARIZONA_AVENUE_TRUNK_SECTION_2
Material
NRCP
Shape
Circular
Height
10 in.
Upstream MH
02 1578
Downstream MH
02 1577
Dir. of Survey
Downstream
Length Surveyed
198 ft.
Total Length
198 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 02 1578 to 02 1577
MH: 02 1578MH: 02 1577downstream0 ft. AMH - Upstream Manhole, Survey Begins - EMERGENCY INSPECTION, 1:11 PM0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area198 ft. AMH - Downstream Manhole, Survey Ends - 1:19 PM

Observation photos (2)

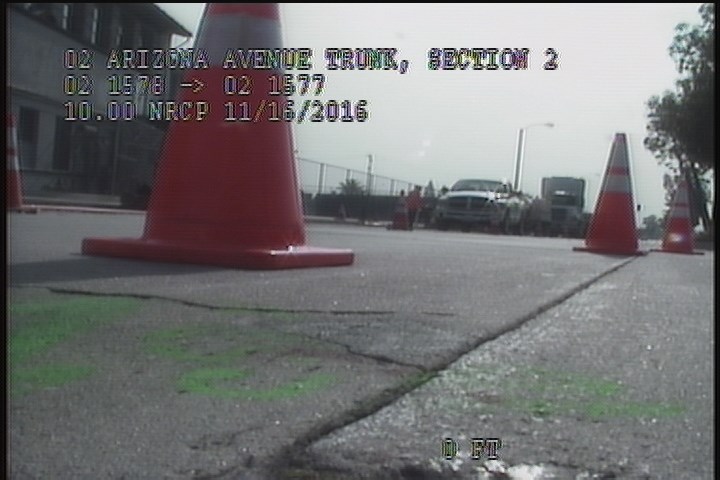

  • Upstream Manhole, Survey Begins - EMERGENCY INSPECTION, 1:11 PM

    0 ft. - Upstream Manhole, Survey Begins - EMERGENCY INSPECTION, 1:11 PM

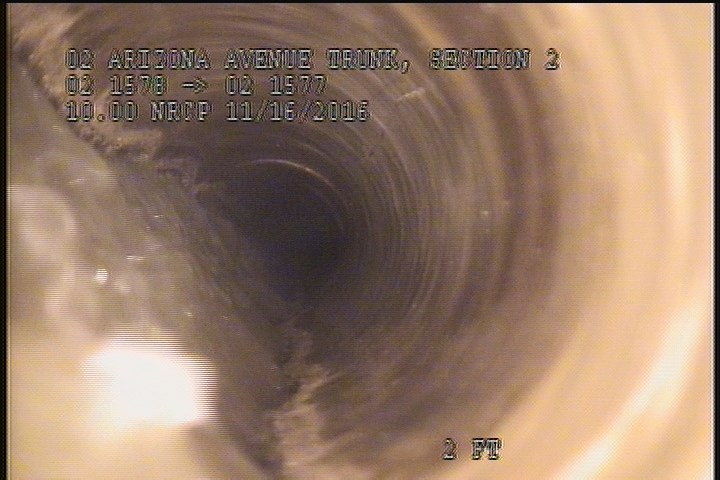

  • Water Level, 15 %of cross sectional area

    0 ft. - Water Level, 15 %of cross sectional area

All inspections of P04029Work order PENDING

Observations (4)

DistanceCodeObservation
0AMHEMERGENCY INSPECTION, 1:11 PM
0MWL—
0MWM—
198AMH1:19 PM

Properties (4)

additional_info
EMERGENCY INSPECTION, SINKHOLE
customer
LACSD
datetime
2016-11-16T13:08:50-08:00
year_laid
19990727
