Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 14, 2016, 10:14 PM

  • 02 1898_02 1897_11142016_142116.mp4

Date
11/14/2016
W/O
0602275
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00246
PipeID
P04404
Time
2:14 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7273
Sewer Name
02 DOUGLAS AVENUE RELIEF TRUNK
City
EAST L.A.
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
20161114DF_DOUGLAS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 1897
Downstream MH
02 1898
Dir. of Survey
Upstream
Length Surveyed
3.4 ft.
Total Length
3.4 ft.
Structural Index
4
Structural Quick
5121
Structural Rating
7
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 02 1897 to 02 1898
MH: 02 1897MH: 02 1898upstream0 ft. MGP - General Photograph0 ft. MSA - Survey Abandoned - 2:31 PM/OFFSET/SAG0.3 ft. JOL - Joint Offset Large0.3 ft. MGP - General Photograph - BROKEN PIPE0.3 ft. B - Broken, from 09 to 02 o'clock, within 8 inches of joint: YES - POSSIBLY FROM JOINT TO JOINT3.4 ft. MWM - Water Mark, 60 %of cross sectional area3.4 ft. AMH - Downstream Manhole, Survey Begins - 2:17 PM3.4 ft. MGO - General Observation - ROACHES @ MH3.4 ft. MWL - Water Level, 50 %of cross sectional area3.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active

Observation photos (7)

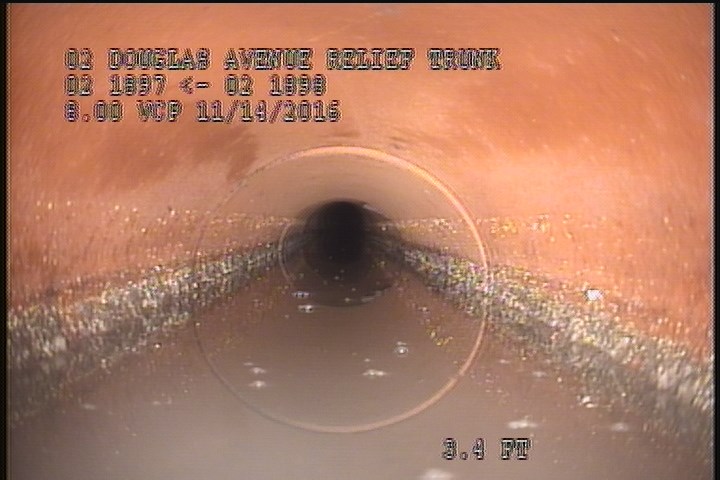

  • Water Mark, 60 %of cross sectional area

    0 ft. - Water Mark, 60 %of cross sectional area

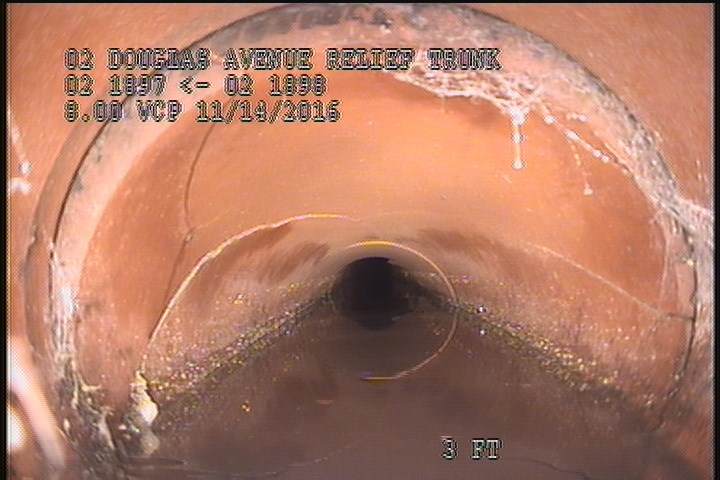

  • General Observation - ROACHES @ MH

    0 ft. - General Observation - ROACHES @ MH

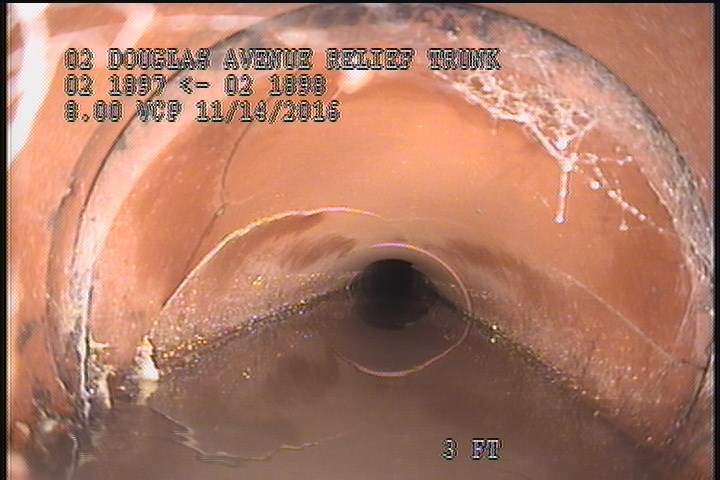

  • General Observation - Conn. @ Mh, 9 O' Clock. Active

    0 ft. - General Observation - Conn. @ Mh, 9 O' Clock. Active

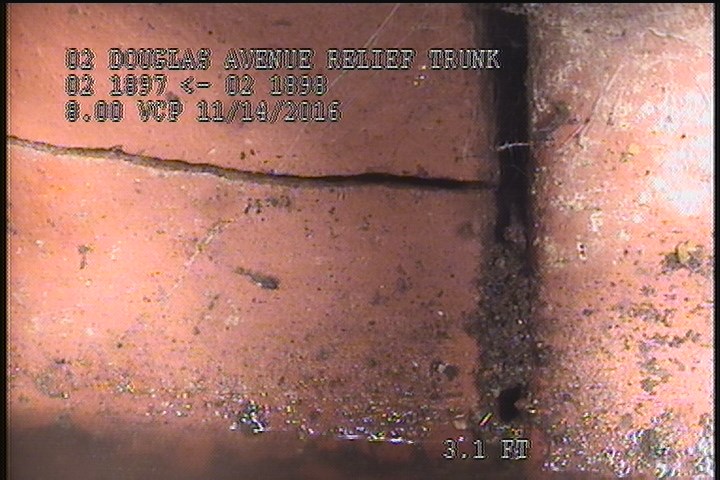

  • General Photograph - BROKEN PIPE

    3.1 ft. - General Photograph - BROKEN PIPE

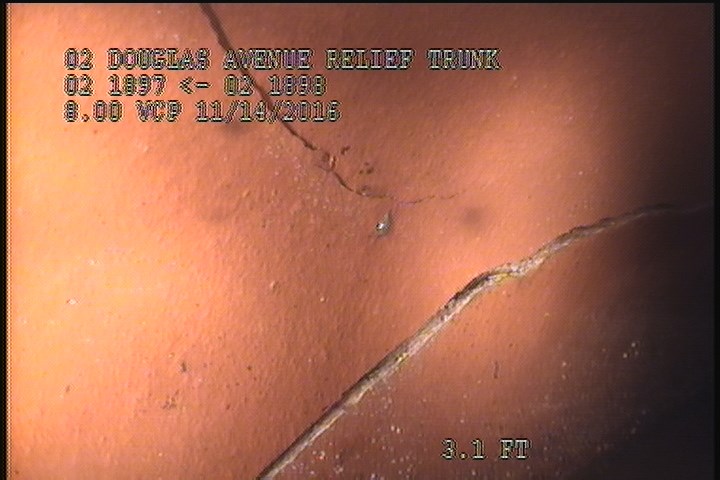

  • Broken, from 09 to 02 o'clock, within 8 inches of joint: YES - POSSIBLY FROM JOINT TO JOINT

    3.1 ft. - Broken, from 09 to 02 o'clock, within 8 inches of joint: YES - POSSIBLY FROM JOINT TO JOINT

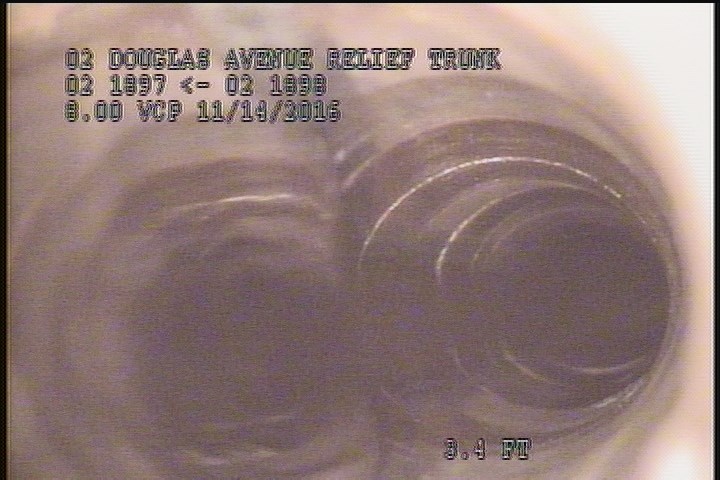

  • General Photograph

    3.4 ft. - General Photograph

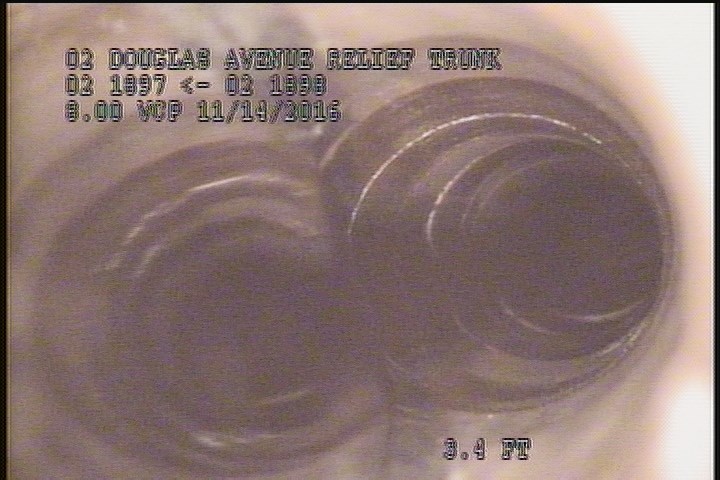

  • Survey Abandoned - 2:31 PM/OFFSET/SAG

    3.4 ft. - Survey Abandoned - 2:31 PM/OFFSET/SAG

All inspections of P04404Work order 0602275

Observations (10)

DistanceCodeObservation
0MWM—
3.4MGP—
0AMH2:17 PM
3.1JOL—
0MGOROACHES @ MH
3.1MGPBROKEN PIPE
0MWL—
3.1BPOSSIBLY FROM JOINT TO JOINT
3.4MSA2:31 PM/OFFSET/SAG
0MGOConn. @ Mh, 9 O' Clock. Active

Properties (4)

custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2016-11-14T14:14:46-08:00
