Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 14, 2016, 09:26 PM

  • 02 1897_02 2088_11142016_133743.mp4

Date
11/14/2016
W/O
0602275
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00246
PipeID
P07616
Time
1:26 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7272/G7273
Sewer Name
02 DOUGLAS AVENUE RELIEF TRUNK
City
EAST L.A.
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
20161114DF_DOUGLAS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 2088
Downstream MH
02 1897
Dir. of Survey
Upstream
Length Surveyed
344.3 ft.
Total Length
344.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 02 2088 to 02 1897
MH: 02 2088MH: 02 1897upstream0 ft. AMH - Upstream Manhole, Survey Ends - 2:14 PM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0.1 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH0.1 ft. MGO - General Observation - ROACHES @ MH39.7 ft. RML - Roots Medium Lateral, from 02 to 04 o'clock, 10 %, within 8 inches of joint: YES39.7 ft. TFB - Tap Factory Made Abandoned, at 01 o'clock, -, within 8 inches of joint: YES, 4" - 5 % ROOTS, OPEN75.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN84.9 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - OPEN100.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 4"121 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN213.2 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"344.3 ft. AMH - Downstream Manhole, Survey Begins - 1:40 PM344.3 ft. MWM - Water Mark, 15 %of cross sectional area344.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active344.3 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (2)

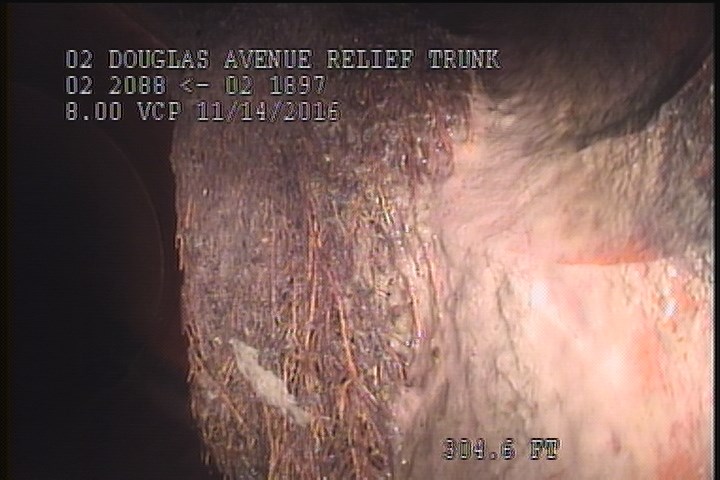

  • Roots Medium Lateral, from 02 to 04 o'clock, 10 %, within 8 inches of joint: YES

    304.6 ft. - Roots Medium Lateral, from 02 to 04 o'clock, 10 %, within 8 inches of joint: YES

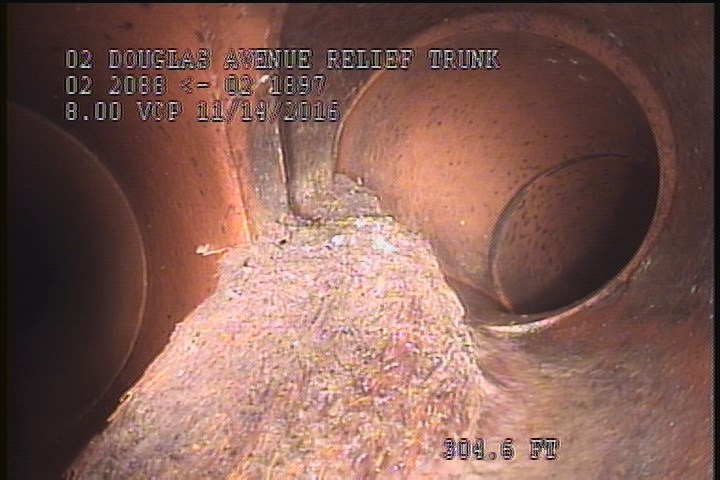

  • Tap Factory Made Abandoned, at 01 o'clock, -, within 8 inches of joint: YES, 4" - 5 % ROOTS, OPEN

    304.6 ft. - Tap Factory Made Abandoned, at 01 o'clock, -, within 8 inches of joint: YES, 4" - 5 % ROOTS, OPEN

All inspections of P07616Work order 0602275

Observations (15)

DistanceCodeObservation
344.2MGOSLIGHT GREASE THROUGHOUT THE REACH
344.3AMH2:14 PM
259.4TFOPEN
268.8TFOPEN
0AMH1:40 PM
244.1TFC—
344.3MGOConn. @ Mh, 9 O' Clock. Active
223.3TFOPEN
0MWM—
304.6RML—
344.2MGOROACHES @ MH
304.6TFB5 % ROOTS, OPEN
131.1TBA—
0MGOConn. @ Mh, 3 O' Clock. Active
0MWL—

Properties (4)

additional_info
DVD # G7272 ENDED @ 294 FEET UPSTREAM OF MH 2088, THE LAST 50 FEET OF THE REACH IS ON DVD # G7273
custom_field_two
4
customer
LACSD
datetime
2016-11-14T13:26:53-08:00
