Wastewater/Activity/PacpInspection/1.0Nov 14, 2016, 06:03 PM
02 2091_02 2090_11142016_101223.mp4
- Date
- 11/14/2016
- W/O
- 0602275
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00246
- PipeID
- P04407
- Time
- 10:03 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7272
- Sewer Name
- 02 DOUGLAS AVENUE RELIEF TRUNK
- City
- EAST L.A.
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- 20161114DF_DOUGLAS_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 02 2091
- Downstream MH
- 02 2090
- Dir. of Survey
- Downstream
- Length Surveyed
- 156.1 ft.
- Total Length
- 156.1 ft.
- Structural Index
- 3
- Structural Quick
- 4121
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

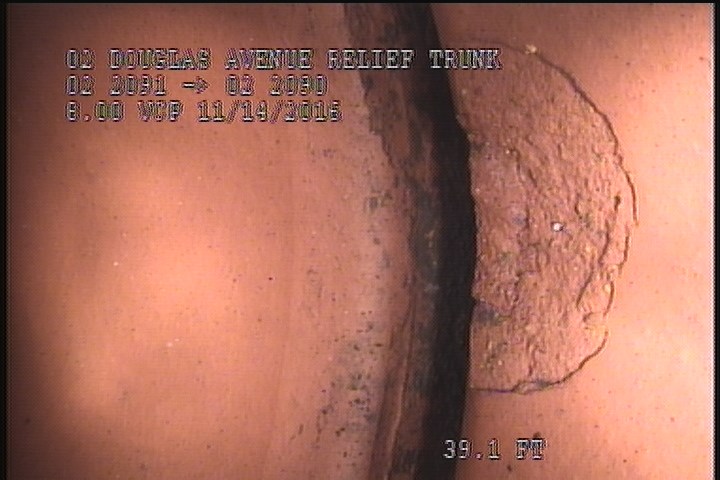

39.1 ft. - General Observation - CHIPPING @ 3 O'CLOCK

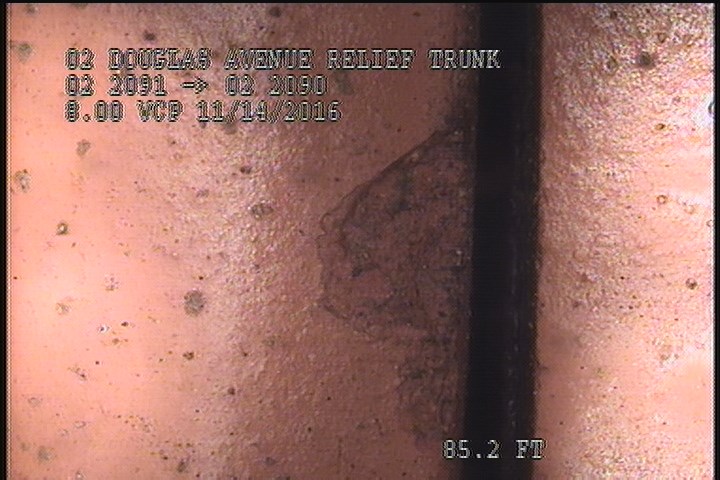

85.2 ft. - General Observation - CHIPPING @ 3 O'CLOCK

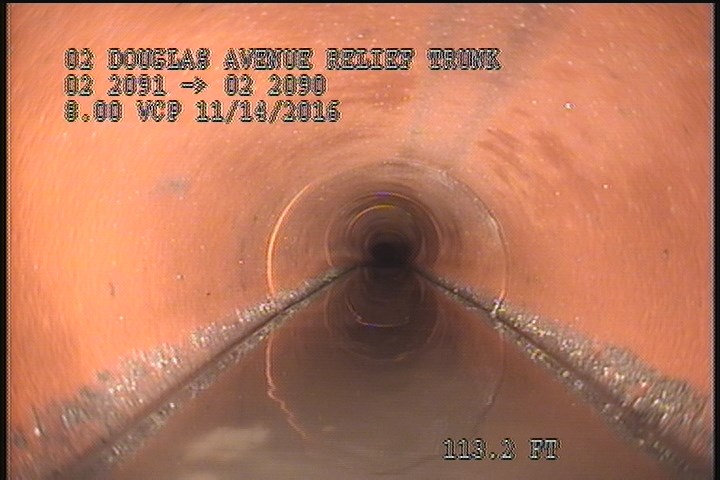

113.2 ft. - Water Level, Sag in pipe, 20 %of cross sectional area, Start

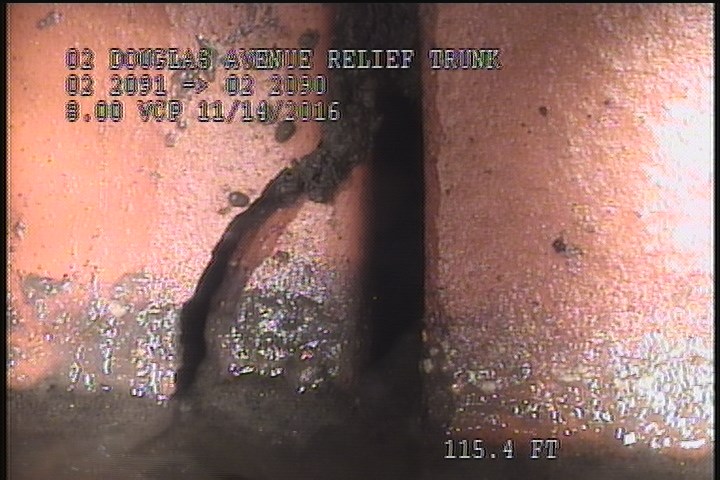

115.4 ft. - Broken, from 04 to 05 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 115.4 | B | — |
| 156.1 | AMH | 10:44 AM |
| 0 | AMH | 10:10 AM |
| 120.8 | MWLS | — |
| 39.1 | MGO | CHIPPING @ 3 O'CLOCK |
| 0 | MWL | — |
| 0 | MWM | — |
| 113.2 | MWLS | — |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 156.1 | MGO | ROACHES @ MH |
| 70.7 | TFA | — |
| 85.2 | MGO | CHIPPING @ 3 O'CLOCK |
Properties (3)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-11-14T10:03:28-08:00
