Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 2, 2016, 07:35 AM

  • 16 0310_16 0309_1122016_004049.mp4

Date
11/02/2016
W/O
0596965
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13361
Time
12:35 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
h0328
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20161031MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
20 in.
Upstream MH
16 0310
Downstream MH
16 0309
Dir. of Survey
Downstream
Length Surveyed
88 ft.
Total Length
88 ft.
Structural Index
3
Structural Quick
5141
Structural Rating
16
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 16 0310 to 16 0309
MH: 16 0310MH: 16 0309downstream0 ft. MGO - General Observation - DROP MH0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area28.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - HAIRLINE37.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped37.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped38.6 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES52.7 ft. MGO - General Observation - 20" VCP52.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open81.8 ft. BSV - Broken Soil Visible, from 01 to 03 o'clock, within 8 inches of joint: YES - SEVERE FRACTURE81.8 ft. FC - Fracture Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES - MODERATE81.8 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT82.4 ft. FM - Fracture Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT84.4 ft. MGP - General Photograph - MULTIPLE SLIGHT85.4 ft. FM - Fracture Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES, Finish - SLIGHT88 ft. AMH - Downstream Manhole, Survey Ends - 1:00AM

Observation photos (4)

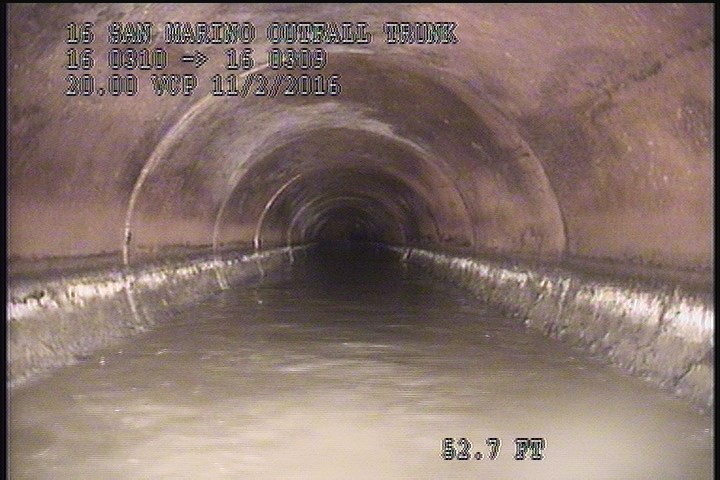

  • General Observation - 20" VCP

    52.7 ft. - General Observation - 20" VCP

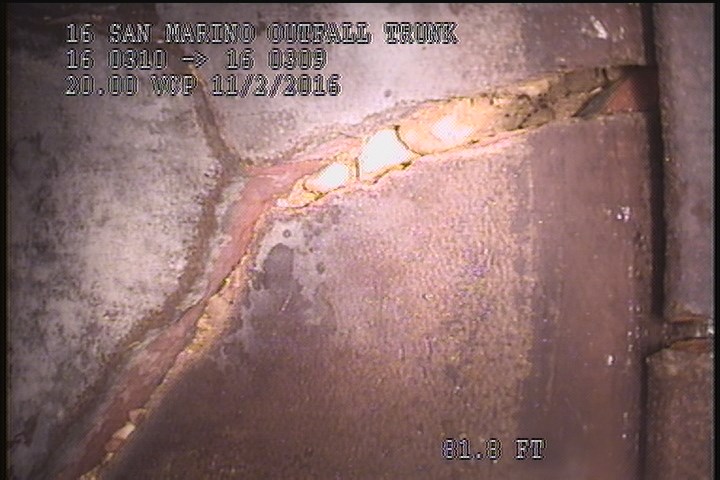

  • Broken Soil Visible, from 01 to 03 o'clock, within 8 inches of joint: YES - SEVERE FRACTURE

    81.8 ft. - Broken Soil Visible, from 01 to 03 o'clock, within 8 inches of joint: YES - SEVERE FRACTURE

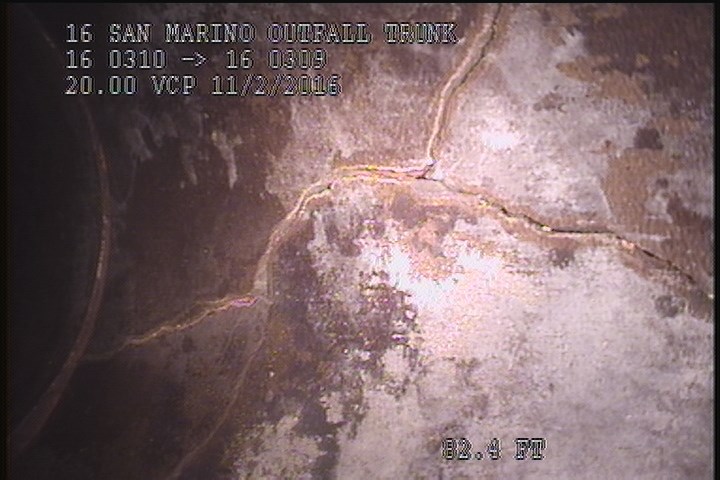

  • Fracture Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    82.4 ft. - Fracture Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

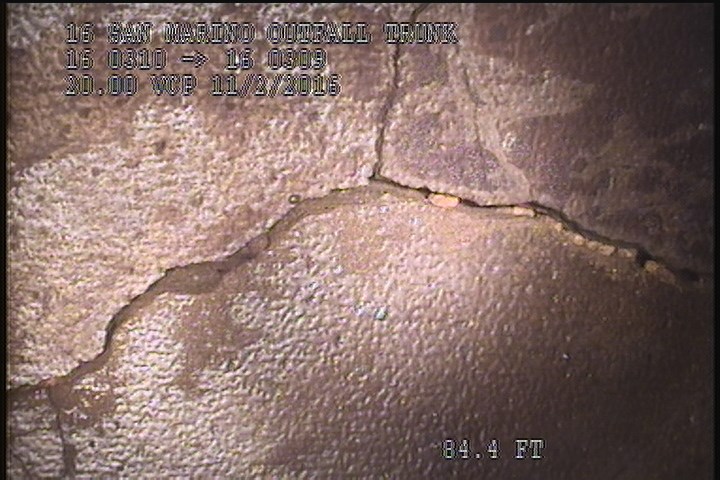

  • General Photograph - MULTIPLE SLIGHT

    84.4 ft. - General Photograph - MULTIPLE SLIGHT

All inspections of P13361Work order 0596965

Observations (17)

DistanceCodeObservation
88AMH1:00AM
84.4MGPMULTIPLE SLIGHT
52.7MGO20" VCP
81.8BSVSEVERE FRACTURE
28.2FLHAIRLINE
37.4TBCapped
0MGODROP MH
37.4TFCCapped
81.8FCMODERATE
0AMH12:35AM
38.6DSGV—
82.4FMSLIGHT
0MWM—
52.7TFOpen
81.8FCSLIGHT
85.4FMSLIGHT
0MWL—

Properties (4)

custom_field_three
BROKEN PIPE SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2016-11-02T00:35:00-07:00
