Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 31, 2016, 10:00 AM

  • 16 0319_16 0318_10312016_032314.mp4

Date
10/31/2016
W/O
0596965
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13370
Time
3:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6757
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20161031MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
16 0319
Downstream MH
16 0318
Dir. of Survey
Downstream
Length Surveyed
277.8 ft.
Total Length
277.8 ft.
Structural Index
2
Structural Quick
382F
Structural Rating
95
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
98
Pipe schematic from manhole 16 0319 to 16 0318
MH: 16 0319MH: 16 0318downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:20AM5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE8.2 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H11 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H15 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open18.5 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT20.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL20.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL23.8 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL26.1 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL28.4 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - HAIRLINE31 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H36.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL39.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SL41.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL43.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H45.2 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open 30% ROOTS46.3 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL52.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active59.2 ft. MGO - General Observation - 15" VCP64.1 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL70.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active82.4 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H83 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open83.3 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H91.9 ft. FC - Fracture Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES - H102.3 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H109.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL112 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H113.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open122.5 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start - 5% BOR LESS122.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL137.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL137.4 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish - 5% OR LESS158.9 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL161.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open168.3 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - SL171.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H173.3 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - H173.3 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - SL178.5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SL180.8 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H182 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open186.2 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL196 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H203.7 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H214.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H218.9 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL220 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open237 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL239.5 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H241 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open246.6 ft. CC - Crack Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES251.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H254.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL262 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL264.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL265.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN272.5 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H277.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN277.8 ft. AMH - Downstream Manhole, Survey Ends - 4:05AM

Observation photos (2)

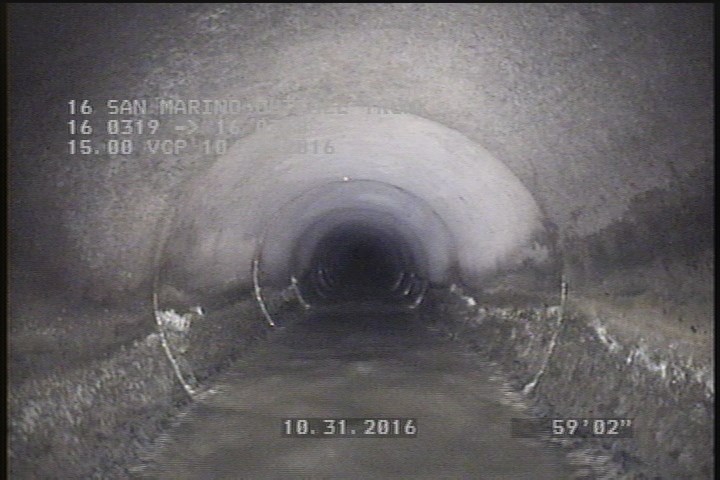

  • General Observation - 15" VCP

    59.2 ft. - General Observation - 15" VCP

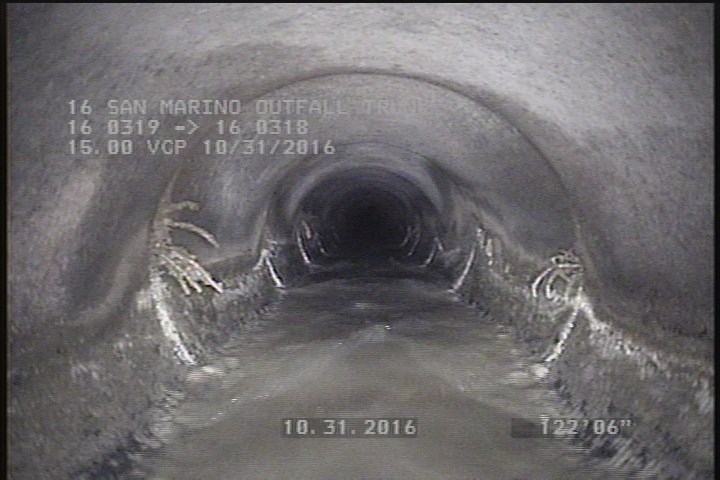

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start - 5% BOR LESS

    122.5 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start - 5% BOR LESS

All inspections of P13370Work order 0596965

Observations (63)

DistanceCodeObservation
246.6CC—
20.9FCSL
178.5FLSL
46.3FCSL
180.8FCH
41.3FCSL
43.9FCH
91.9FCH
137.4FCSL
83TFOpen
31FCH
52.6TFActive
39.2FCSL
218.9FCSL
264.7FCSL
15TFOpen
203.7FCH
70.3TFActive
0MWM—
83.3FCH
214.1FLH
20.9FCSL
220TFOpen
8.2FCH
102.3FCH
59.2MGO15" VCP
113.3TFOpen
122.5RFJ5% BOR LESS
23.8FCSL
45.2TFDOpen 30% ROOTS
18.5FCSLIGHT
277.4MGOConn. @ Mh, 9 O' Clock. OPEN
28.4FLHAIRLINE
196FLH
5FCHAIRLINE
173.3FCH
109.6FCSL
82.4FLH
237FCSL
251.9FCH
122.5FCSL
265.7TFOPEN
26.1FCSL
158.9FLSL
272.5FCH
168.3FLSL
0MWL—
277.8AMH4:05AM
182TFOpen
241TBOpen
171.1FCH
11FCH
137.4RFJ5% OR LESS
239.5FCH
186.2FCSL
0AMH3:20AM
254.2FCSL
64.1FCSL
36.5FCSL
161.5TFOpen
173.3FCSL
262FCSL
112FLH

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2016-10-31T03:00:28-07:00
