Wastewater/Activity/PacpInspection/1.0Oct 29, 2016, 02:19 PM
J 0321A_J 0321_10292016_075639.mp4
- Date
- 10/29/2016
- W/O
- 0596859
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00059
- PipeID
- P11565
- Time
- 7:19 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6756
- Sewer Name
- J JOINT OUTFALL J - UNIT 1G
- City
- PALO VERDES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20161029_JOINT_OUTFALL_J_UNIT_1G
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- J 0321
- Downstream MH
- J 0321A
- Dir. of Survey
- Upstream
- Length Surveyed
- 152 ft.
- Total Length
- 152 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

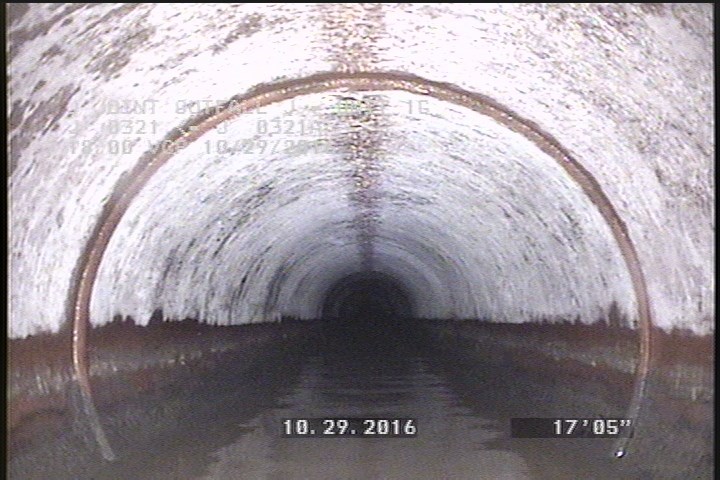

0 ft. - General Observation - Conn. @ Mh, 3 O' Clock. Active

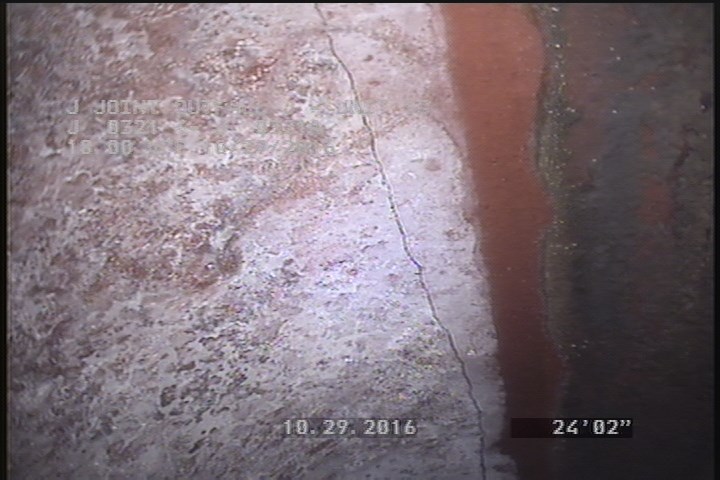

21.7 ft. - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

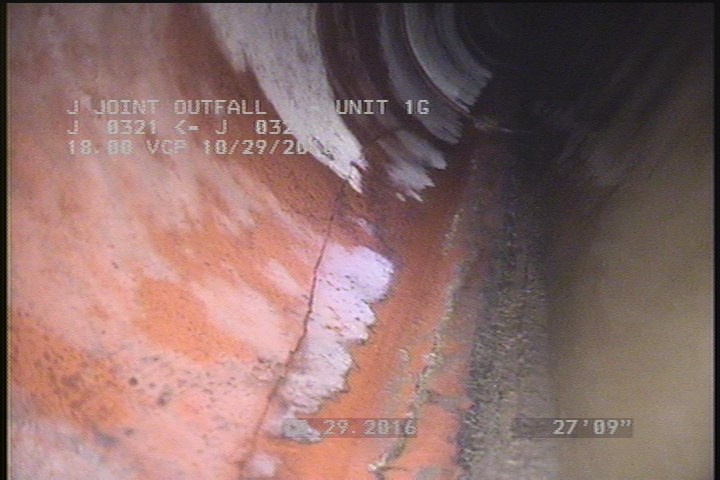

22.8 ft. - Fracture Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES, Start - SLIGHT

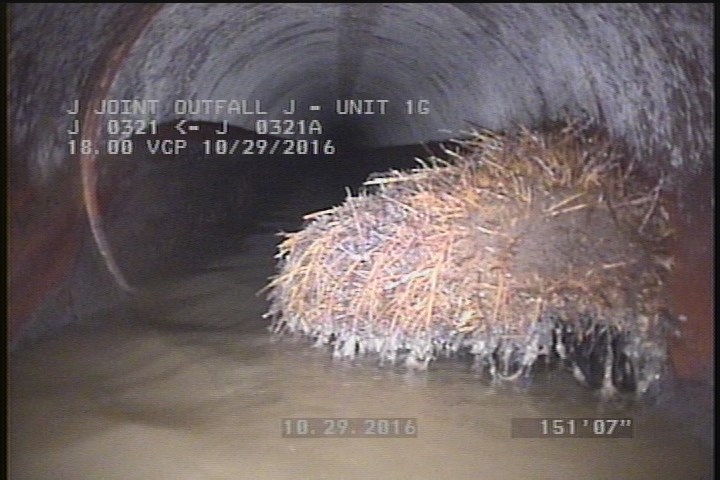

151.5 ft. - Roots Medium Joint, from 02 to 05 o'clock, 30 %, within 8 inches of joint: YESR
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 113 | FS | — |
| 22.8 | FS | SLIGHT |
| 122.8 | FS | — |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 132 | FC | H |
| 151.5 | RMJ | — |
| 0 | MWL | — |
| 21.7 | FS | SLIGHT |
| 0 | MWM | — |
| 17.4 | MGO | 18" VCP |
| 40.9 | TF | Open |
| 0 | AMH | 7:55AM |
| 21.5 | FC | HAIRLINE |
| 152 | AMH | 8:15AM |
Properties (5)
- additional_info
- COMPLETED BY REVERESE INSPECTION
- custom_field_three
- SLIGHT FRACTURE SPIRAL JOINT TO JOINT LONGER
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-10-29T07:19:25-07:00
