Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 27, 2016, 07:19 PM

  • 29 0467_29 0466_10272016_122356.mp4

Date
10/27/2016
W/O
0597283
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z01090
PipeID
P24511
Time
12:19 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7258
Sewer Name
29 ALAMITOS PUMPING PLANT SEWER
City
SIGNAL HILL
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20161027AM_ALAMITOS_PUMPING_PLANT_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0466
Downstream MH
29 0467
Dir. of Survey
Upstream
Length Surveyed
249.6 ft.
Total Length
249.6 ft.
Structural Index
5
Structural Quick
5300
Structural Rating
15
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 29 0466 to 29 0467
MH: 29 0466MH: 29 0467upstream0 ft. AMH - Upstream Manhole, Survey Ends - ABLE TO SEE MH. 4670 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH1.5 ft. BVV - Broken Void Visible, at 11 o'clock, within 8 inches of joint: NO1.5 ft. BSV - Broken Soil Visible, from 12 to 12 o'clock, within 8 inches of joint: NO1.5 ft. B - Broken, from 12 to 12 o'clock, within 8 inches of joint: NO1.6 ft. MGO - General Observation - BROKEN WITH SOIL VISIBLE ABOVE THE BREAK-IN CONN.1.9 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6", 6"3 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"11.1 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6" - OPEN36.7 ft. MGO - General Observation - CHIPPING AT THE JOINT67.7 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 4"107 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6", 6"196.8 ft. MGO - General Observation - CHIPPING AT THE JOINT249.6 ft. MGO - General Observation - ROACHES INSIDE THE MH.249.6 ft. MWM - Water Mark, 10 %of cross sectional area249.6 ft. AMH - Downstream Manhole, Survey Begins - 12:23 PM249.6 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (4)

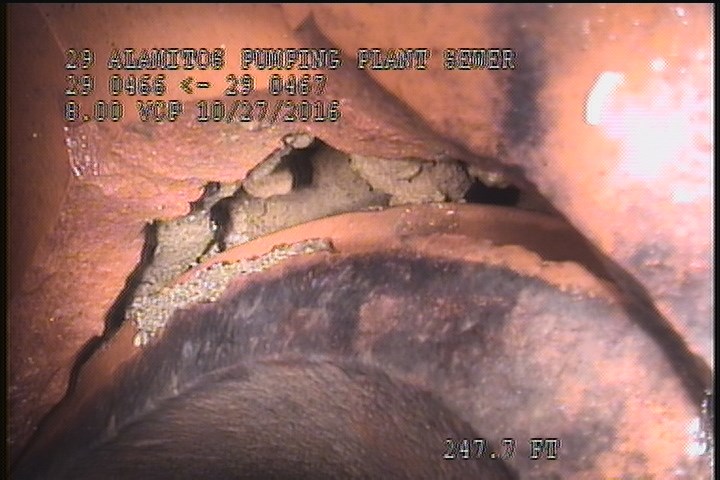

  • Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6", 6"

    247.7 ft. - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6", 6"

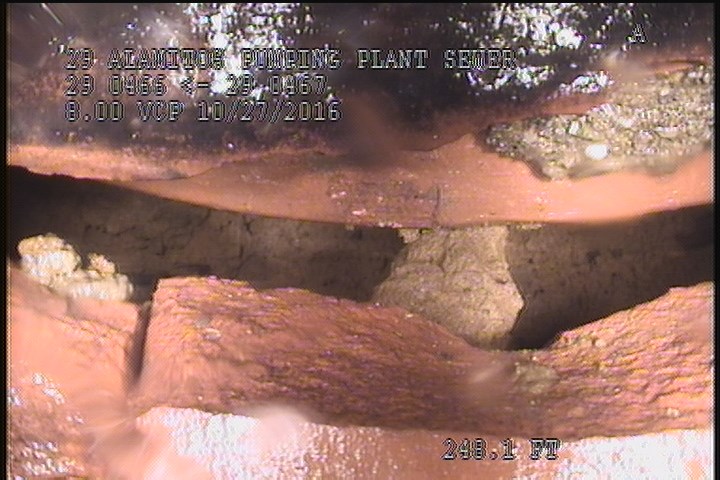

  • Broken Void Visible, at 11 o'clock, within 8 inches of joint: NO

    248.1 ft. - Broken Void Visible, at 11 o'clock, within 8 inches of joint: NO

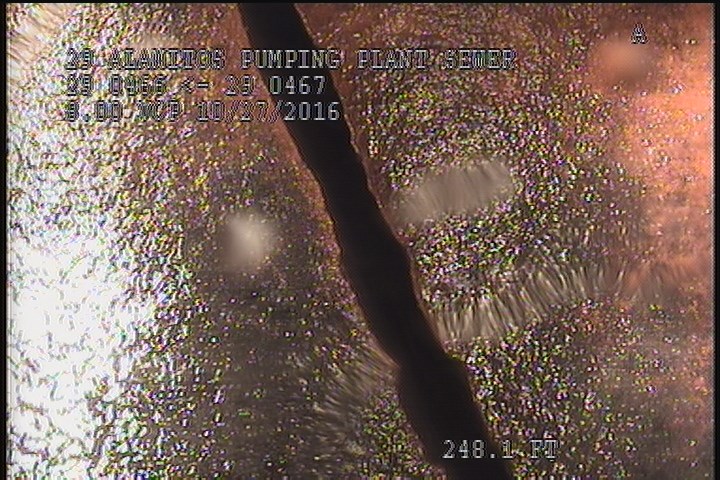

  • Broken, from 12 to 12 o'clock, within 8 inches of joint: NO

    248.1 ft. - Broken, from 12 to 12 o'clock, within 8 inches of joint: NO

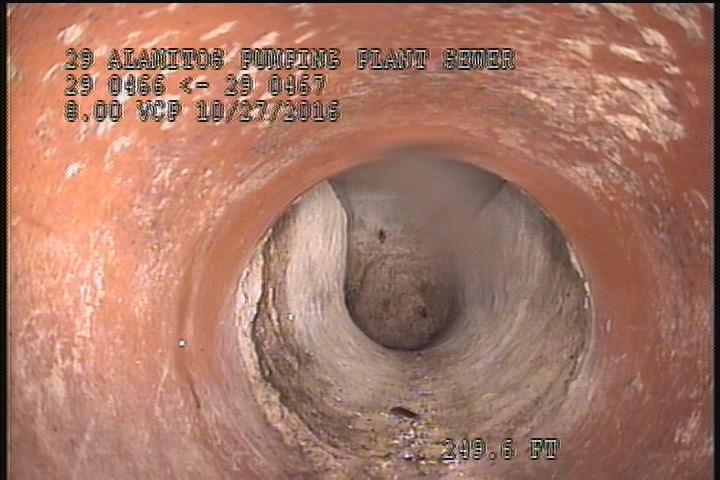

  • Upstream Manhole, Survey Ends - ABLE TO SEE MH. 467

    249.6 ft. - Upstream Manhole, Survey Ends - ABLE TO SEE MH. 467

All inspections of P24511Work order 0597283

Observations (17)

DistanceCodeObservation
246.6TBA—
181.9TBA—
142.6TBA—
247.7TBA—
248.1BVV—
248.1BSV—
249.6AMHABLE TO SEE MH. 467
238.5TBOPEN
0MGOROACHES INSIDE THE MH.
212.9MGOCHIPPING AT THE JOINT
248MGOBROKEN WITH SOIL VISIBLE ABOVE THE BREAK-IN CONN.
248.1B—
0MWM—
0AMH12:23 PM
0MWL—
249.6MGOSLIGHT GREASE THROUGHOUT THE REACH
52.8MGOCHIPPING AT THE JOINT

Properties (5)

additional_info
RFIR INSPECTION ONLY
custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2016-10-27T12:19:25-07:00
