Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 26, 2016, 08:17 PM

  • 29 0623_29 0622_10262016_132059.mp4

Date
10/26/2016
W/O
0597283
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z01090
PipeID
P24869
Time
1:17 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7257
Sewer Name
29 ALAMITOS PUMPING PLANT SEWER
City
SIGNAL HILL
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20161024AM_ALAMITOS_PUMPING_PLANT_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0623
Downstream MH
29 0622
Dir. of Survey
Downstream
Length Surveyed
92.7 ft.
Total Length
92.7 ft.
Structural Index
3
Structural Quick
5111
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 29 0623 to 29 0622
MH: 29 0623MH: 29 0622downstream0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. AMH - Upstream Manhole, Survey Begins - 1:20 PM0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2.1 ft. CC - Crack Circumferential, from 02 to 03 o'clock, within 8 inches of joint: NO19.6 ft. MGO - General Observation - GASKET HANGING OUT19.6 ft. MGO - General Observation - CHIPPING27.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN59.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN61.9 ft. MGO - General Observation - GASKET HANGING OUT75.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"77.8 ft. MGO - General Observation - GASKET HANGING OUT89.9 ft. MGO - General Observation - BROKEN PIPE89.9 ft. MGO - General Observation - BROKEN PIPE89.9 ft. MGO - General Observation - BROKEN PIPE89.9 ft. B - Broken, from 11 to 02 o'clock, within 8 inches of joint: YES91.9 ft. MGO - General Observation - ROACHES INSIDE THE MH.92.7 ft. AMH - Downstream Manhole, Survey Ends - 1:37 PM

Observation photos (6)

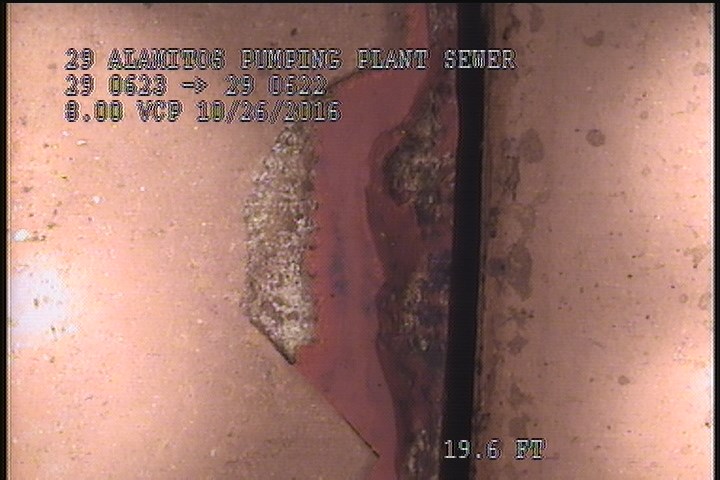

  • General Observation - CHIPPING

    19.6 ft. - General Observation - CHIPPING

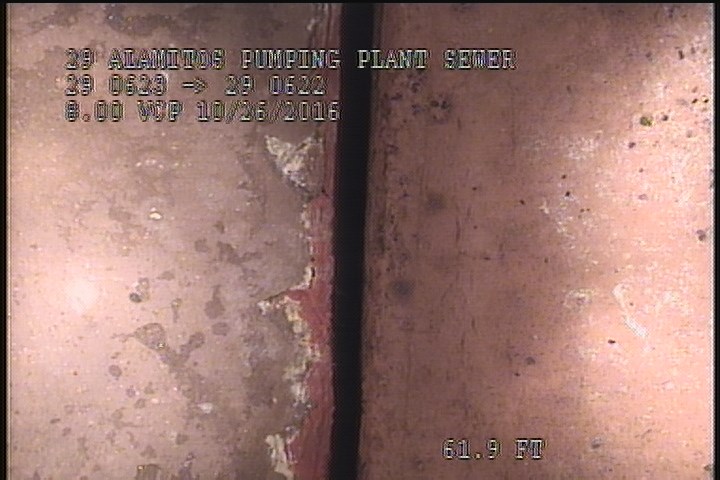

  • General Observation - GASKET HANGING OUT

    61.9 ft. - General Observation - GASKET HANGING OUT

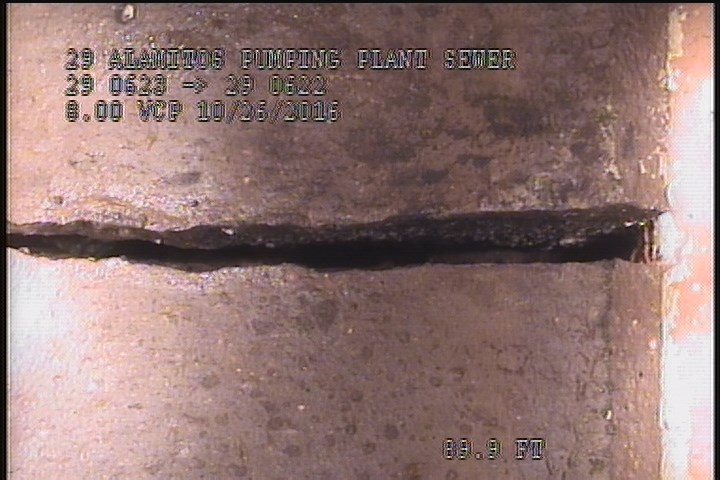

  • General Observation - BROKEN PIPE

    89.9 ft. - General Observation - BROKEN PIPE

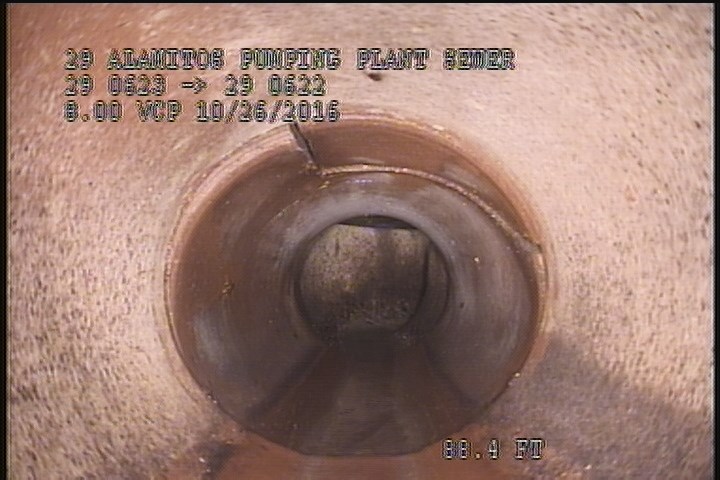

  • General Observation - BROKEN PIPE

    89.9 ft. - General Observation - BROKEN PIPE

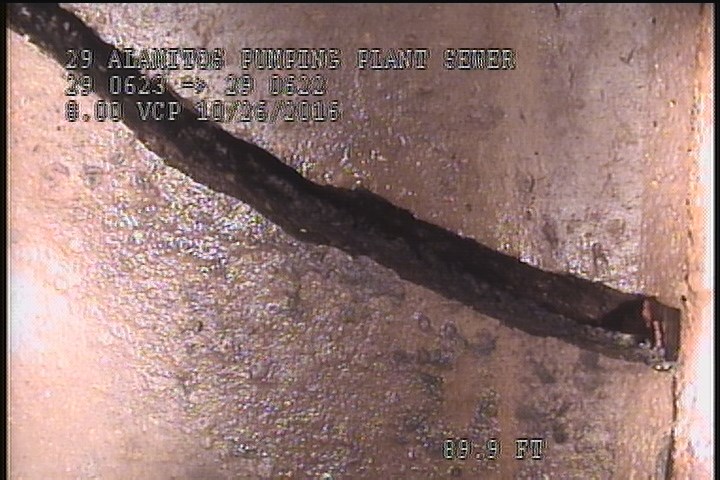

  • General Observation - BROKEN PIPE

    89.9 ft. - General Observation - BROKEN PIPE

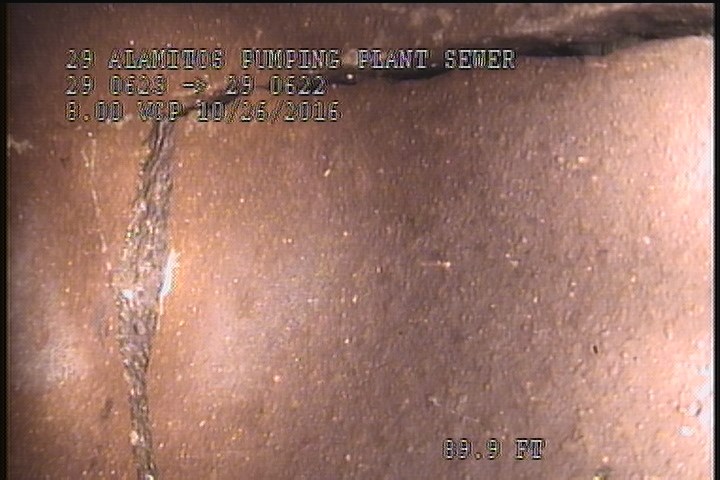

  • Broken, from 11 to 02 o'clock, within 8 inches of joint: YES

    89.9 ft. - Broken, from 11 to 02 o'clock, within 8 inches of joint: YES

All inspections of P24869Work order 0597283

Observations (18)

DistanceCodeObservation
2.1CC—
59.4TFOPEN
75.1TFA—
27.5TFOPEN
89.9MGOBROKEN PIPE
0MGOROACHES INSIDE THE MH.
91.9MGOROACHES INSIDE THE MH.
19.6MGOGASKET HANGING OUT
89.9MGOBROKEN PIPE
0AMH1:20 PM
89.9MGOBROKEN PIPE
77.8MGOGASKET HANGING OUT
89.9B—
0MWM—
0MWL—
61.9MGOGASKET HANGING OUT
19.6MGOCHIPPING
92.7AMH1:37 PM

Properties (5)

additional_info
RFIR INSPECTION ONLY
custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2016-10-26T13:17:19-07:00
