Wastewater/Activity/PacpInspection/1.0Oct 22, 2016, 08:03 AM
A 0952_A 0951_10222016_043153.mp4
- Date
- 10/22/2016
- W/O
- 0592185
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00918
- PipeID
- P20730
- Time
- 1:03 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6744
- Sewer Name
- A JOA-1A DISTRICT 5 INTERCEPTOR RELIEF
- City
- TORANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- 20161022MDM_JOA_1A_DISTRICT_5_INTERCEPTOR_RELIEF
- Material
- RGRCP-PTL
- Shape
- Circular
- Height
- 72 in.
- Upstream MH
- A 0952
- Downstream MH
- A 0951
- Dir. of Survey
- Downstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

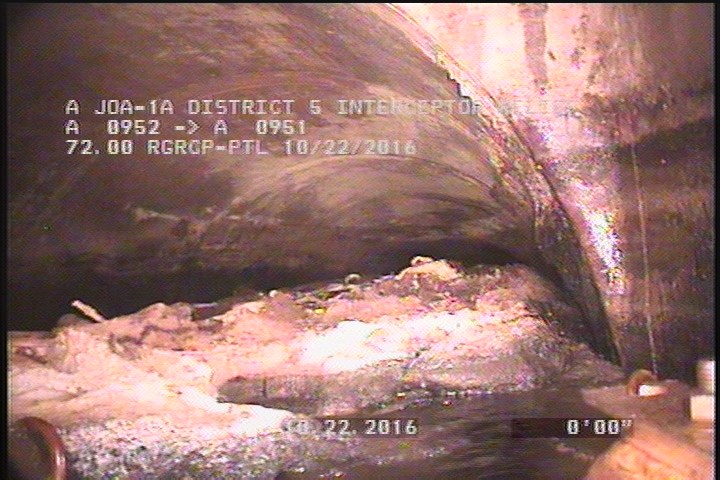

0 ft. - Water Mark, 80 %of cross sectional area

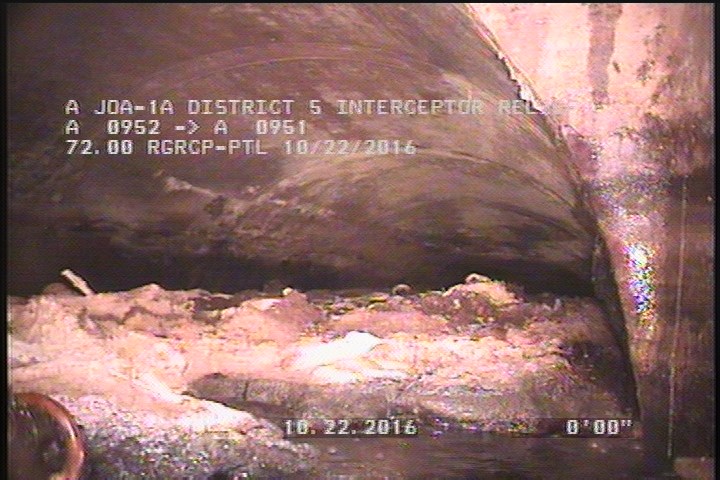

2 ft. - Deposits Attached Ragging, 30 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES - DEBRIE IN SIPHON

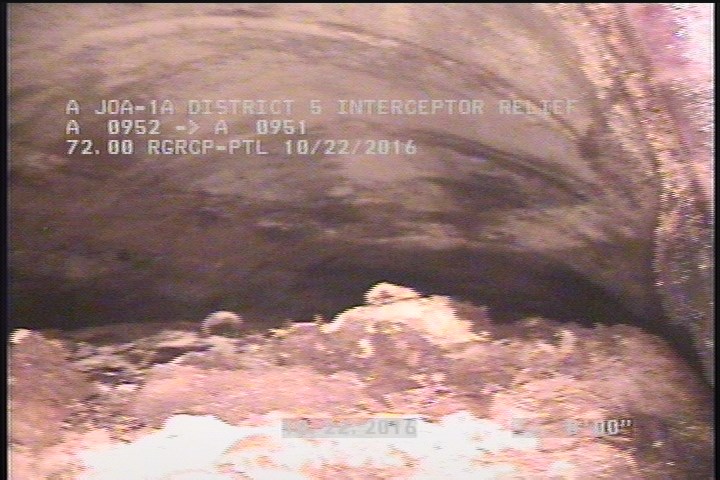

3 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON EAST
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAR | DEBRIE IN SIPHON |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 3:50AM |
| 3 | MSA | DOWNLEG UPSTREAM SIPHON EAST |
Properties (5)
- additional_info
- DOWNLEG UPSTREAM SIPHON EAST
- custom_field_three
- 30% DEBRIE IN SIPHON
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-22T01:03:47-07:00
