Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 21, 2016, 07:40 PM

  • C 0654_C 0653_10212016_124931.mp4

  • C 0654_C 0653_10212016_125814.mp4

Date
10/21/2016
W/O
0596967
Weather
Very Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00266
PipeID
P23920
Time
12:40 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7254
Sewer Name
C JOINT OUTFALL C - UNIT 3F
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
15
Purpose
Routine Assessment
Project
20161021AM_JOINT_OUTFALL_C_UNIT_3F
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
C 0653
Downstream MH
C 0654
Dir. of Survey
Upstream
Length Surveyed
325.4 ft.
Total Length
325.4 ft.
Structural Index
3
Structural Quick
4234
Structural Rating
23
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole C 0653 to C 0654
MH: C 0653MH: C 0654upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:21 PM1.6 ft. MGO - General Observation - SLIGHT GREASE/OIL THROUGHOUT THE REACH5.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish5.8 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES116.7 ft. FM - Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES - POSSIBLY BROKEN215.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start232.3 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES236.4 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES294 ft. JSM - Joint Separated Medium311.1 ft. CM - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES319.9 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES325.4 ft. MWL - Water Level, 25 %of cross sectional area325.4 ft. MWM - Water Mark, 40 %of cross sectional area325.4 ft. AMH - Downstream Manhole, Survey Begins - 12:47 PM

Observation photos (4)

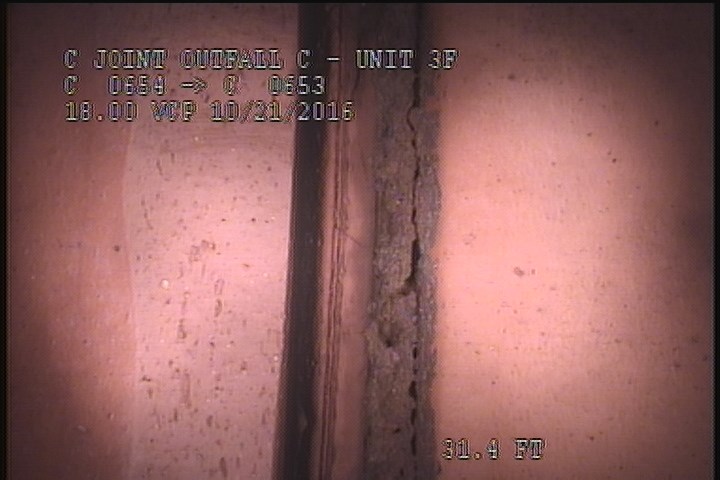

  • Joint Separated Medium

    31.4 ft. - Joint Separated Medium

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    109.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

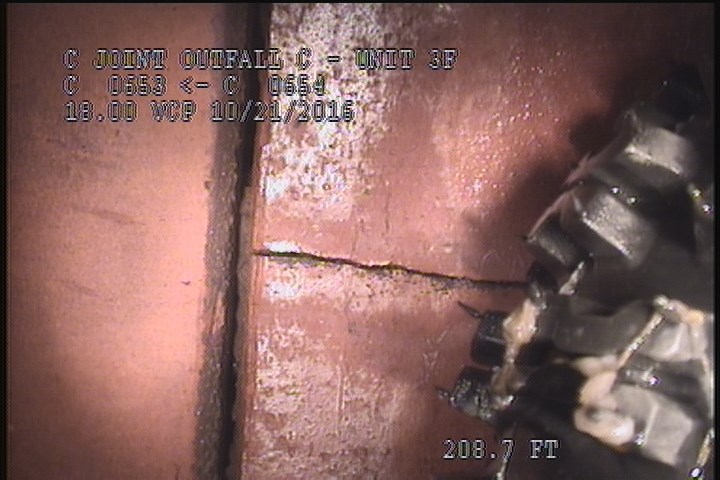

  • Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES - POSSIBLY BROKEN

    208.7 ft. - Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES - POSSIBLY BROKEN

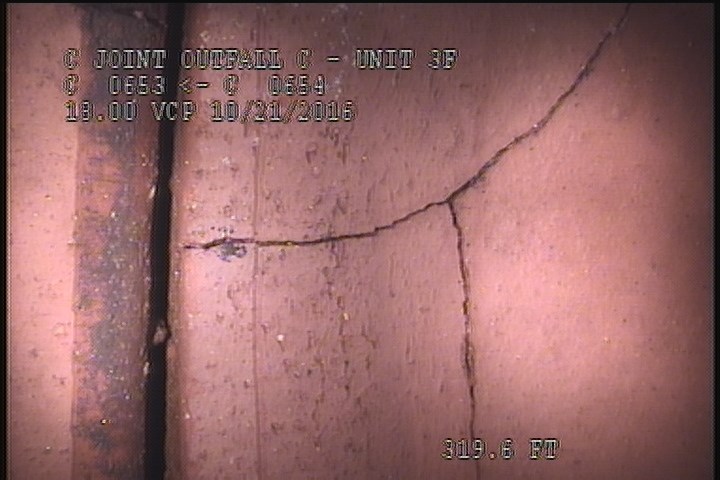

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    319.6 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P23920Work order 0596967

Observations (14)

DistanceCodeObservation
0MWL—
31.4JSM—
319.6CM—
5.5CM—
93.1CL—
109.6CM—
325.4AMH1:21 PM
0MWM—
319.6FM—
208.7FMPOSSIBLY BROKEN
14.3CM—
0AMH12:47 PM
89CM—
323.8MGOSLIGHT GREASE/OIL THROUGHOUT THE REACH

Properties (6)

additional_info
DIRECTION OF THE FLOW WAS WRONG THE FIRST 55' U/S OF THE REACH, I EVENTUALLY FIXED THE PROJECT BAR DIRECTION OF THE FLOW TO U/S
custom_field_three
POSSIBLE BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2016-10-21T12:40:59-07:00
year_laid
20020814
