Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 19, 2016, 08:20 AM
Date
10/19/2016
W/O
0596910
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00252
PipeID
P03464
Time
1:20 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6740
Sewer Name
02 DOWNEY-BELLFLOWER DIVERSION TRUNK
City
DOWNEY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
27
Purpose
Capital Improvement Program Assesment
Project
20161019MDM_DOWNRY_BELLFLOWER_DIVERSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
02 0896
Downstream MH
02 0895
Dir. of Survey
Downstream
Length Surveyed
347.3 ft.
Total Length
347.3 ft.
Structural Index
3
Structural Quick
3G2D
Structural Rating
171
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
171
Pipe schematic from manhole 02 0896 to 02 0895
MH: 02 0896MH: 02 0895downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:25AM0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT7.9 ft. FC - Fracture Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES - SLIGHT7.9 ft. FS - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT7.9 ft. FS - Fracture Spiral, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - HAIRLINE8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - HAIRLINE12.2 ft. MGO - General Observation - WHITE COATING ON PIPE12.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - HAIRLINE12.2 ft. FS - Fracture Spiral, from 09 to 11 o'clock, within 8 inches of joint: YES, Finish - HAIRLINE12.2 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Finish - SLIGHT12.2 ft. FS - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES, Finish - SLIGHT14.4 ft. FS - Fracture Spiral, from 12 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT14.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE19.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H19.4 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H21.8 ft. FS - Fracture Spiral, from 12 to 02 o'clock, within 8 inches of joint: YES, Finish - SLIGHT24 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H24 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - H24.5 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES35.2 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H39.2 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H40.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H40.4 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H50 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - S50.4 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H55.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Change - H60.5 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H60.5 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H65.9 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H70.4 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H95.9 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H106.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H109.1 ft. FS - Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE111.4 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H117 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H117 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H117 ft. FS - Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES, Finish - H117 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H127.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H131.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H138.1 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H142.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H142.4 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H148.2 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H152.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H179.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H183.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H188.5 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - H193.4 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish - H198.8 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H198.8 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H203.6 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - H214.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE219.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H224.6 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H234.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H234.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H234.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H239.5 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H244 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H249.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H255.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H265.5 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H275.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H290.8 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H290.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H295.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H347.3 ft. AMH - Downstream Manhole, Survey Ends - 2:50AM

Observation photos (6)

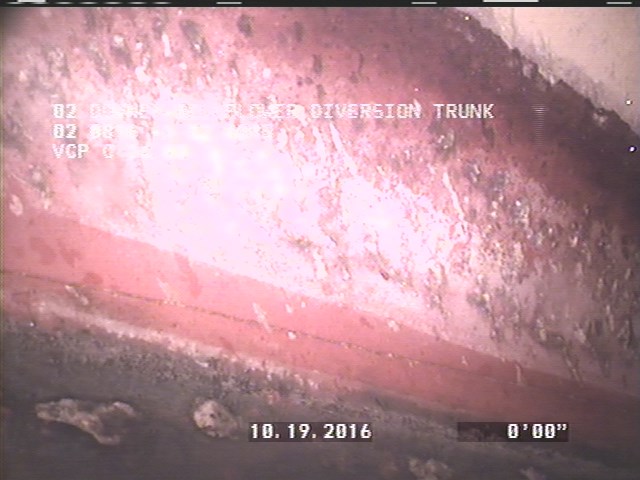

  • Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    2 ft. - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

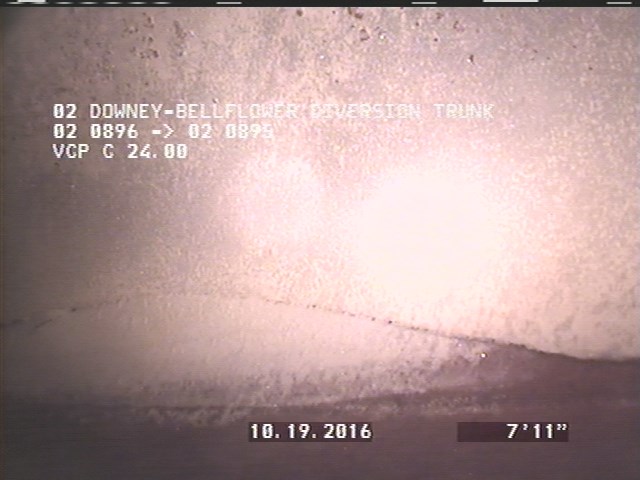

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    8 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

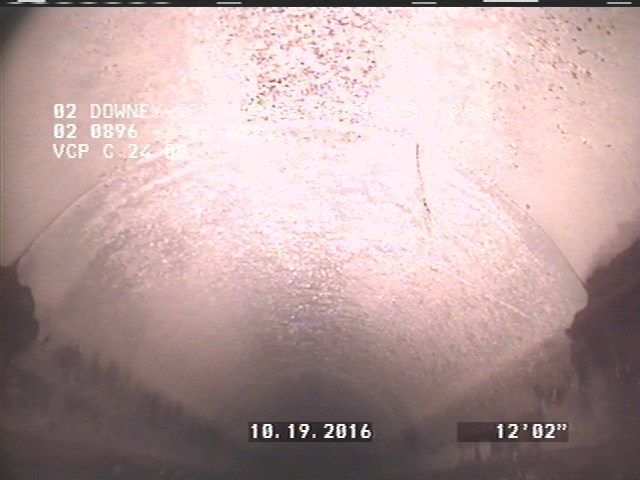

  • General Observation - WHITE COATING ON PIPE

    12.2 ft. - General Observation - WHITE COATING ON PIPE

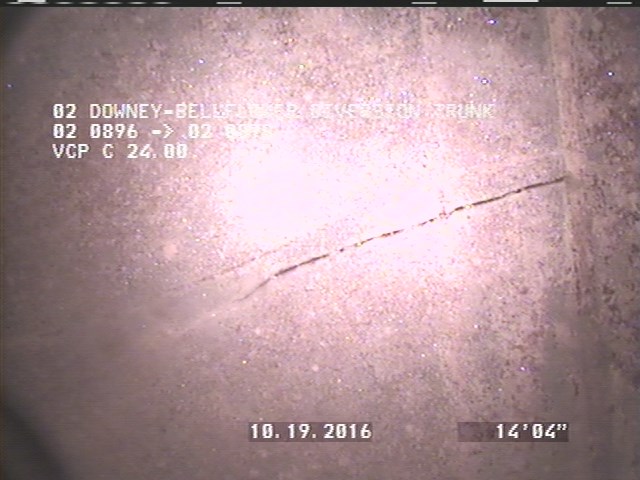

  • Fracture Spiral, from 12 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    14.4 ft. - Fracture Spiral, from 12 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT

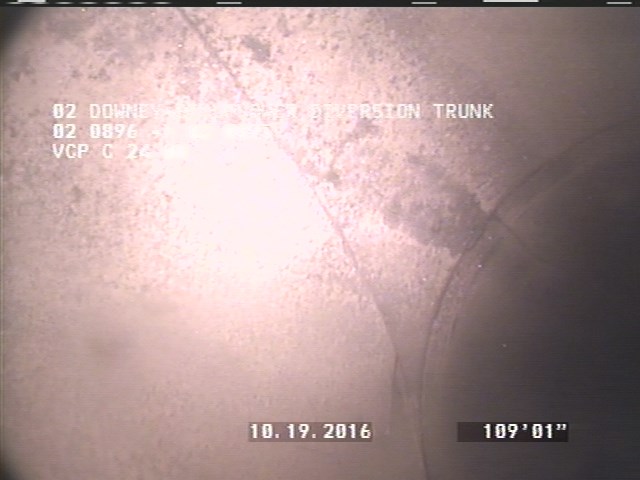

  • Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    109.1 ft. - Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

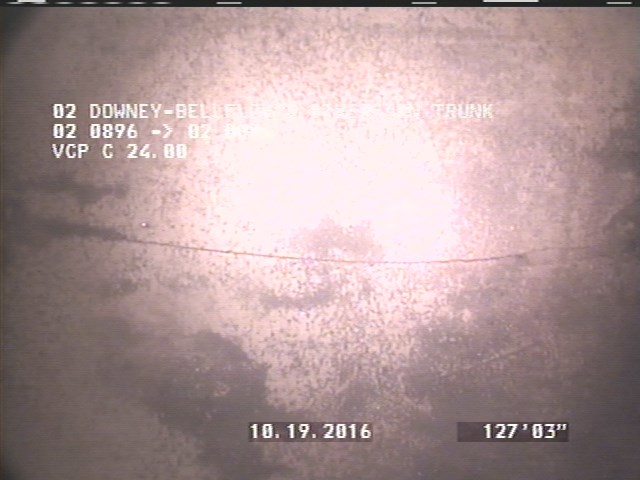

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    127.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

All inspections of P03464Work order 0596910

Observations (70)

DistanceCodeObservation
19.4FLH
55.2FLH
138.1FLH
347.3AMH2:50AM
70.4FLH
35.2FCH
203.6FLH
12.2MGOWHITE COATING ON PIPE
265.5FCH
12.2FLHAIRLINE
127.3FLH
0MWM—
12.2FSHAIRLINE
188.5FLH
24.5FL—
224.6FCH
239.5FCH
95.9FLH
183.9FCH
7.9FCSLIGHT
40.4FLH
290.8FCH
255.4FLH
219.7FLH
295.3FCH
117FLH
65.9FLH
131.8FLH
60.5FCH
60.5FLH
152.9FLH
244FLH
234.9FLH
50.4FCH
19.4FCH
106.7FLH
50FLS
198.8FCH
39.2FCH
198.8FCH
24FCH
214.4FCHAIRLINE
117FLH
179.2FLH
117FSH
109.1FSHAIRLINE
14.4FSSLIGHT
40.4FCH
193.4FLH
21.8FSSLIGHT
8FLHAIRLINE
7.9FSSLIGHT
275.4FLH
148.2FCH
290.8FCH
142.4FLH
12.2FSSLIGHT
234.9FCH
2FSSLIGHT
249.6FCH
0AMH1:25AM
117FLH
0MWL—
142.4FCH
234.9FLH
111.4FCH
14.4FCHAIRLINE
24FLH
7.9FSHAIRLINE
12.2FSSLIGHT

Properties (4)

custom_field_three
SPRIAL SLIGHT & HAIRLINES JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-10-19T01:20:13-07:00
