Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 11, 2016, 06:58 PM

  • 02 0015_02 0014_10112016_121554.mp4

Date
10/11/2016
W/O
PENDING
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00234
PipeID
P03042
Time
11:58 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7248
Sewer Name
02 ARTESIA EXTENSION TRUNK
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Maintenance Related
Project
20161011AM_ARTESIA_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
19.950000762939453 in.
Upstream MH
02 0015
Downstream MH
02 0014
Dir. of Survey
Downstream
Length Surveyed
261.5 ft.
Total Length
261.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 02 0015 to 02 0014
MH: 02 0015MH: 02 0014downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:16 PM260.8 ft. MGO - General Observation - SNAKE COMING OUT OF THE LATERAL260.8 ft. TFD - Tap Factory Made Defective, at 01 o'clock, -, within 8 inches of joint: NO, 6" - ACTIVE, UNSEALED, SNAKE ALL COILED UP INSIDE THE LATERAL261.5 ft. MSA - Survey Abandoned - CLEANING SNAKE HAS BEEN PULLED OUT OF THE LINE FROM THE CLEANOUT

Observation photos (6)

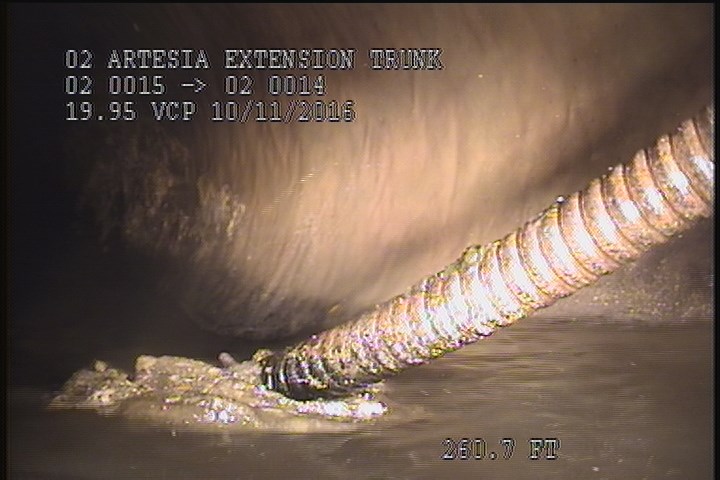

  • Water Mark, 35 %of cross sectional area

    0 ft. - Water Mark, 35 %of cross sectional area

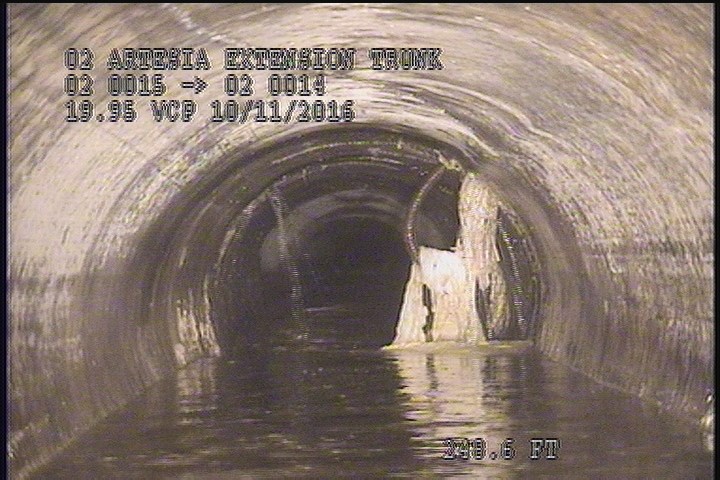

  • Water Level, 30 %of cross sectional area

    0 ft. - Water Level, 30 %of cross sectional area

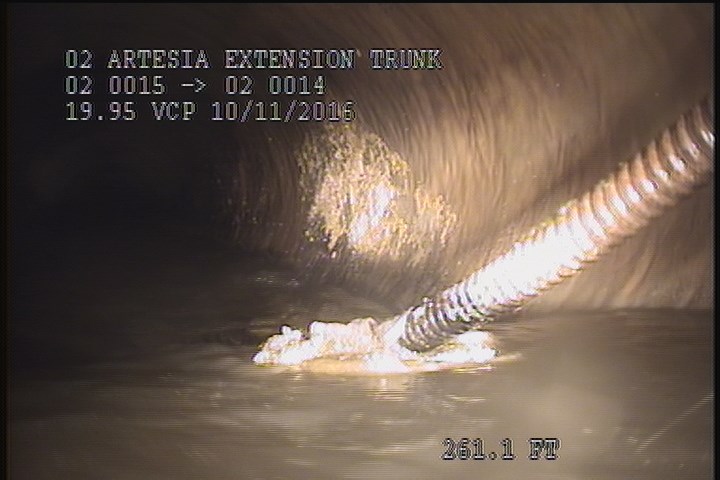

  • Upstream Manhole, Survey Begins - 12:16 PM

    0 ft. - Upstream Manhole, Survey Begins - 12:16 PM

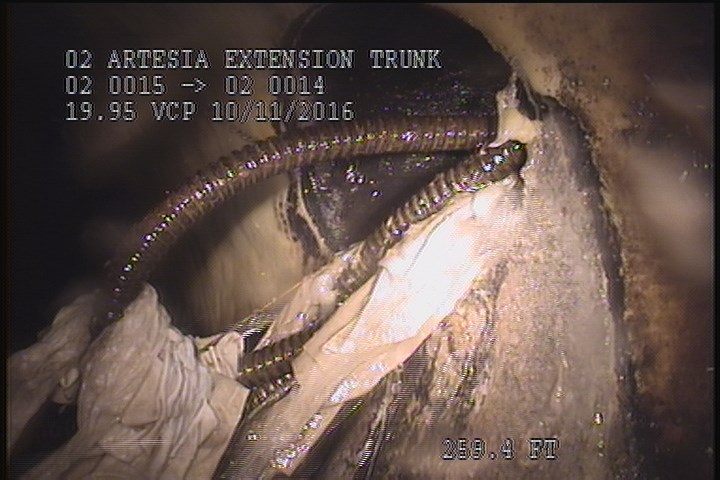

  • General Observation - SNAKE COMING OUT OF THE LATERAL

    260.8 ft. - General Observation - SNAKE COMING OUT OF THE LATERAL

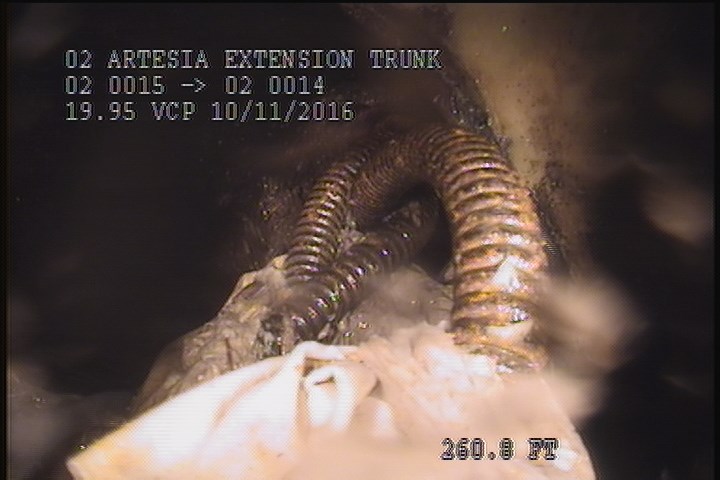

  • Tap Factory Made Defective, at 01 o'clock, -, within 8 inches of joint: NO, 6" - ACTIVE, UNSEALED, SNAKE ALL COILED UP INSIDE THE LATERAL

    260.8 ft. - Tap Factory Made Defective, at 01 o'clock, -, within 8 inches of joint: NO, 6" - ACTIVE, UNSEALED, SNAKE ALL COILED UP INSIDE THE LATERAL

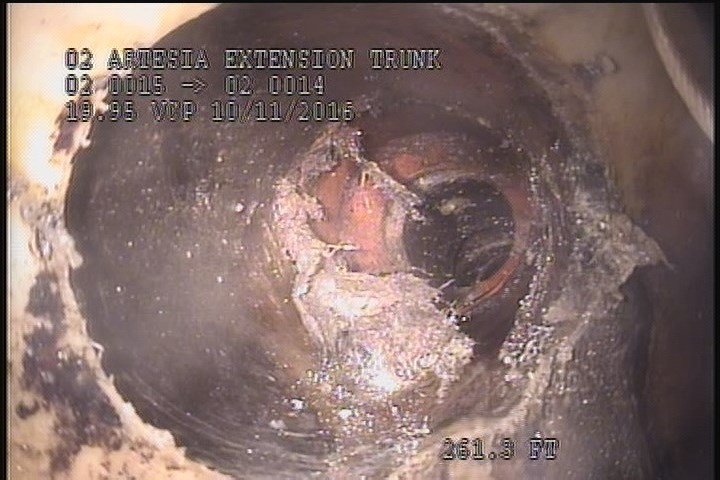

  • Survey Abandoned - CLEANING SNAKE HAS BEEN PULLED OUT OF THE LINE FROM THE CLEANOUT

    261.5 ft. - Survey Abandoned - CLEANING SNAKE HAS BEEN PULLED OUT OF THE LINE FROM THE CLEANOUT

All inspections of P03042Work order PENDING

Observations (6)

DistanceCodeObservation
0MWM—
261.5MSACLEANING SNAKE HAS BEEN PULLED OUT OF THE LINE FROM THE CLEANOUT
260.8MGOSNAKE COMING OUT OF THE LATERAL
260.8TFDACTIVE, UNSEALED, SNAKE ALL COILED UP INSIDE THE LATERAL
0MWL—
0AMH12:16 PM

Properties (5)

additional_info
EMERGENCY INSPECTION, LOOKING FOR A CLEANING SNAKE THATS POSSIBLY IN OUR LINE OR STUCK INSIDE THE LATERAL, APT. ADDRESS IS 9911 RAMONA ST.
custom_field_three
EMERGENCY
custom_field_two
5
customer
LACSD
datetime
2016-10-11T11:58:37-07:00
