Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 11, 2016, 08:30 AM

  • A 0966_A 0965_10112016_021444.mp4

Date
10/11/2016
W/O
0592185
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00918
PipeID
P20744
Time
1:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0318
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR RELIEF
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
27
Purpose
Routine Assessment
Project
20161008MDM_JOA_1A_DISTRICT_5_INTERCEPTOR_RELIEF
Material
RCP-PTL
Shape
Circular
Height
90 in.
Upstream MH
A 0966
Downstream MH
A 0965
Dir. of Survey
Downstream
Length Surveyed
646.5 ft.
Total Length
646.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole A 0966 to A 0965
MH: A 0966MH: A 0965downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:10AM8 ft. MGP - General Photograph - PTL8 ft. MGO - General Observation - 90" RCP-PTL370 ft. MGO - General Observation - 90" RCP-PTL646.5 ft. AMH - Downstream Manhole, Survey Ends - 2:35AM

Observation photos (3)

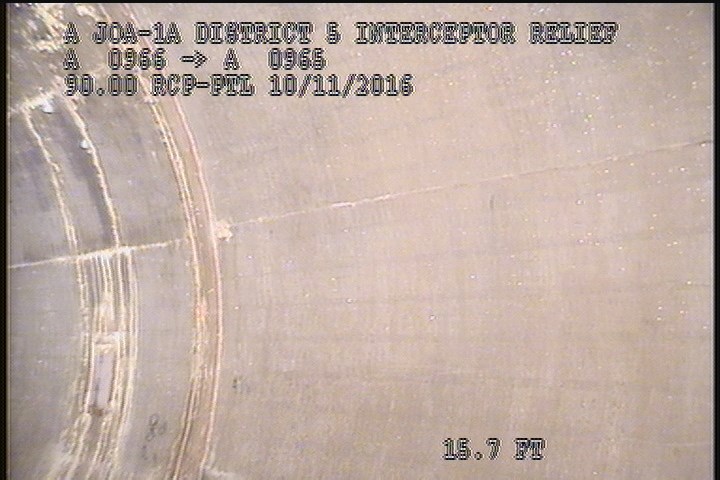

  • General Photograph - PTL

    8 ft. - General Photograph - PTL

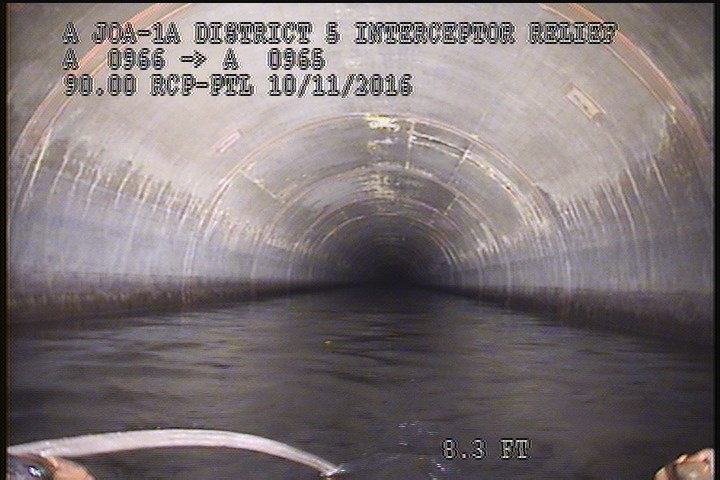

  • General Observation - 90" RCP-PTL

    8 ft. - General Observation - 90" RCP-PTL

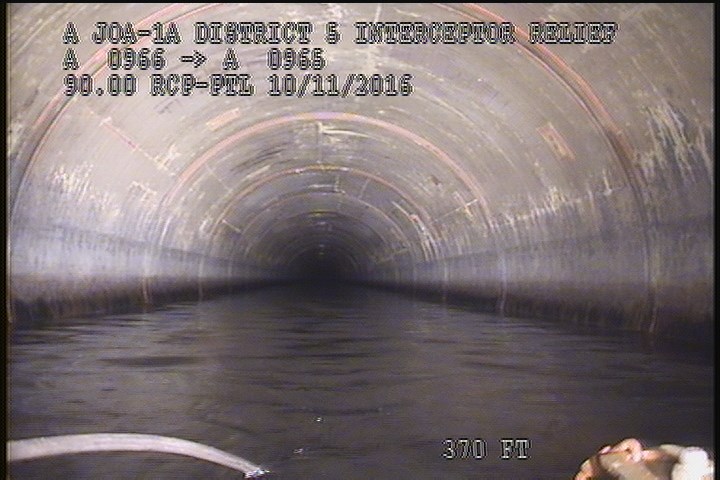

  • General Observation - 90" RCP-PTL

    370 ft. - General Observation - 90" RCP-PTL

All inspections of P20744Work order 0592185

Observations (7)

DistanceCodeObservation
646.5AMH2:35AM
0MWM—
8MGPPTL
0MWL—
0AMH2:10AM
8MGO90" RCP-PTL
370MGO90" RCP-PTL

Properties (4)

custom_field_three
PTL LINER GOOD COND.
custom_field_two
4
customer
LACSD
datetime
2016-10-11T01:30:16-07:00
