Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 7, 2016, 08:32 AM

  • C 0581_C 0580_1072016_020609.mp4

Date
10/07/2016
W/O
0592184
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00365
PipeID
P05132
Time
1:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0315
Sewer Name
C JOINT OUTFALL C - UNIT 4C RELIEF
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
16
Purpose
Routine Assessment
Project
20161007MDM_JOINT_OUTFALL_C_UNIT_4C_RELIEF
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
C 0581
Downstream MH
C 0580
Dir. of Survey
Downstream
Length Surveyed
397.2 ft.
Total Length
397.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole C 0581 to C 0580
MH: C 0581MH: C 0580downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:50AM0 ft. MGO - General Observation - Conn. @ Mh, 6 O' Clock. Active LARGE INCOMING LINE2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Start49 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Finish84.7 ft. MGO - General Observation - 36"RCP-CIPP252.5 ft. MGO - General Observation - THIN WHITE BUILD-UP ON LINER269.3 ft. MGP - General Photograph397.2 ft. AMH - Downstream Manhole, Survey Ends - 2:20AM

Observation photos (4)

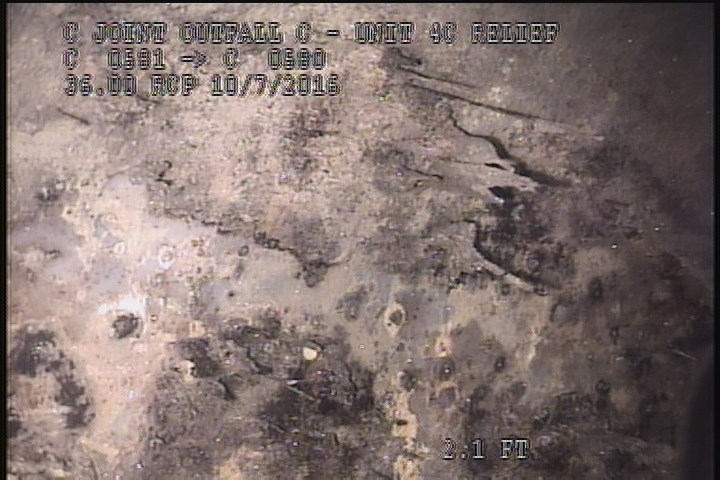

  • Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Start

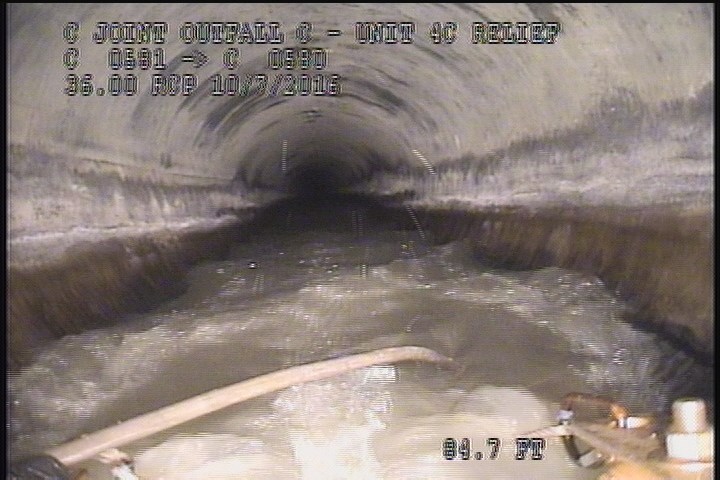

  • General Observation - 36"RCP-CIPP

    84.7 ft. - General Observation - 36"RCP-CIPP

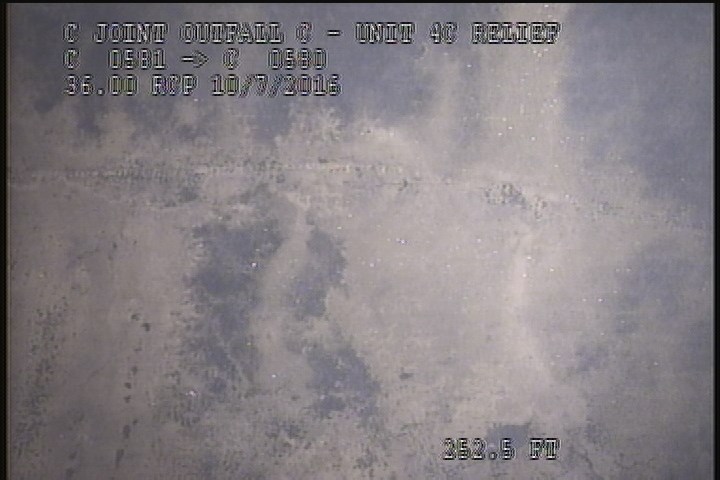

  • General Observation - THIN WHITE BUILD-UP ON LINER

    252.5 ft. - General Observation - THIN WHITE BUILD-UP ON LINER

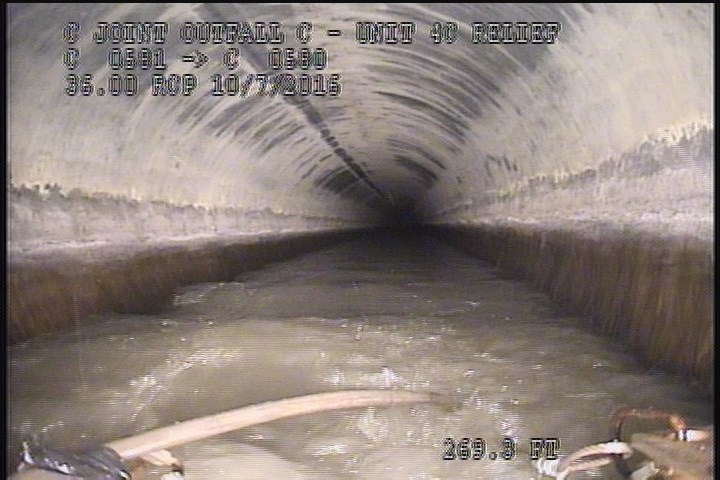

  • General Photograph

    269.3 ft. - General Photograph

All inspections of P05132Work order 0592184

Observations (11)

DistanceCodeObservation
0MWM—
0MGOConn. @ Mh, 3 O' Clock. Active
2.1DAGS—
269.3MGP—
252.5MGOTHIN WHITE BUILD-UP ON LINER
49DAGS—
0MWL—
0AMH1:50AM
0MGOConn. @ Mh, 6 O' Clock. Active LARGE INCOMING LINE
397.2AMH2:20AM
84.7MGO36"RCP-CIPP

Properties (4)

custom_field_three
CIPP LINER
custom_field_two
4
customer
LACSD
datetime
2016-10-07T01:32:18-07:00
