Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 7, 2016, 07:44 AM

  • C 0582_C 0581_1072016_014253.mp4

Date
10/07/2016
W/O
0592184
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00365
PipeID
P05133
Time
12:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0315
Sewer Name
C JOINT OUTFALL C - UNIT 4C RELIEF
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
16
Purpose
Routine Assessment
Project
20161007MDM_JOINT_OUTFALL_C_UNIT_4C_RELIEF
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
C 0582
Downstream MH
C 0581
Dir. of Survey
Downstream
Length Surveyed
80.1 ft.
Total Length
80.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole C 0582 to C 0581
MH: C 0582MH: C 0581downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:15AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active LARGE OUTGOING2 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE- RAGS8 ft. MGO - General Observation - 33" RCP -CIPP50 ft. MGO - General Observation - THIN WHITE BUILD-UP ON LINER80.1 ft. MGO - General Observation - Conn. @ Mh, 6 O' Clock. Active LARGE INCOMING80.1 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - SLUDGE- RAGS80.1 ft. AMH - Downstream Manhole, Survey Ends - 1:35AM80.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active

Observation photos (3)

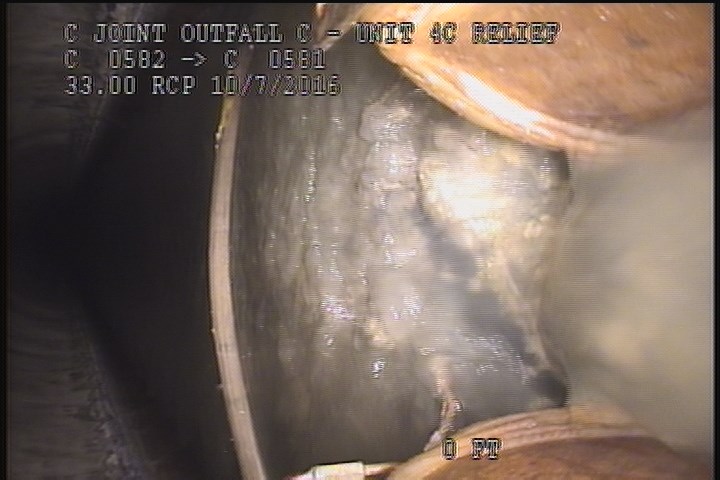

  • Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE- RAGS

    2 ft. - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE- RAGS

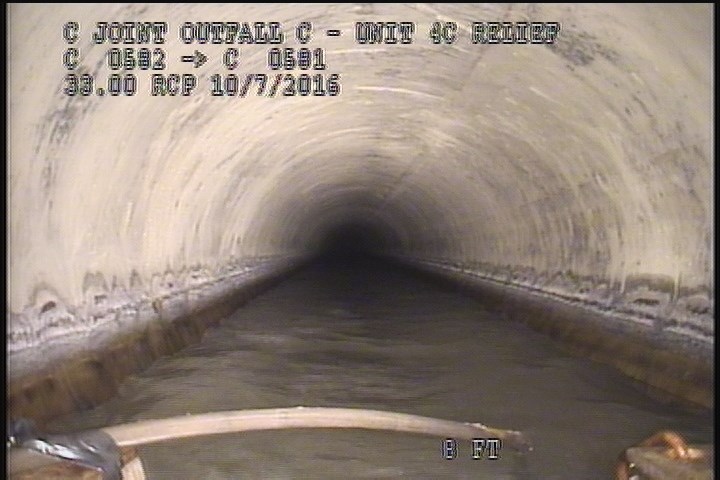

  • General Observation - 33" RCP -CIPP

    8 ft. - General Observation - 33" RCP -CIPP

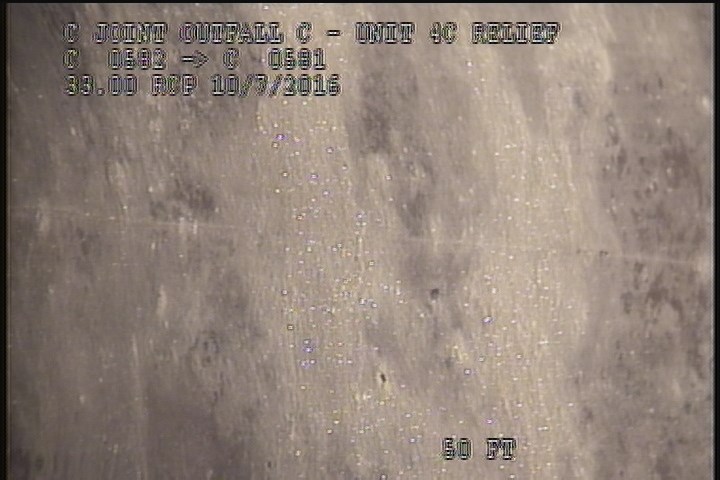

  • General Observation - THIN WHITE BUILD-UP ON LINER

    50 ft. - General Observation - THIN WHITE BUILD-UP ON LINER

All inspections of P05133Work order 0592184

Observations (11)

DistanceCodeObservation
2DSZSLUDGE- RAGS
0MWL—
50MGOTHIN WHITE BUILD-UP ON LINER
80.1MGOConn. @ Mh, 6 O' Clock. Active LARGE INCOMING
8MGO33" RCP -CIPP
80.1DSZSLUDGE- RAGS
80.1AMH1:35AM
0AMH1:15AM
80.1MGOConn. @ Mh, 3 O' Clock. Active
0MWM—
0MGOConn. @ Mh, 9 O' Clock. Active LARGE OUTGOING

Properties (5)

custom_field_three
CIPP LINER
custom_field_two
4
customer
LACSD
datetime
2016-10-07T00:44:52-07:00
year_laid
19990506
