Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2016, 04:13 PM

  • 02 1881_02 1880_1052016_105549.mp4

Date
10/05/2016
W/O
0596961
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00246
PipeID
P04239
Time
9:13 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0312
Sewer Name
02 DOUGLAS AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20161005MI_DOUGLAS_AVE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 1881
Downstream MH
02 1880
Dir. of Survey
Downstream
Length Surveyed
241.3 ft.
Total Length
241.3 ft.
Structural Index
4
Structural Quick
5133
Structural Rating
14
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 02 1881 to 02 1880
MH: 02 1881MH: 02 1880downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:54AM4.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6" - Open9.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - Unkown23.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES24.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - Open30.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start32.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES47 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"62.2 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"102.7 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"130.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Unkown, 45% DEBRIS174.5 ft. BVV - Broken Void Visible, from 08 to 10 o'clock, within 8 inches of joint: YES175.8 ft. TFD - Tap Factory Made Defective, at 09 o'clock, -, within 8 inches of joint: NO, 6" - MULTIPLE CRACKS186 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"186.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open238.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish241.3 ft. AMH - Downstream Manhole, Survey Ends - 11:24AM

Observation photos (2)

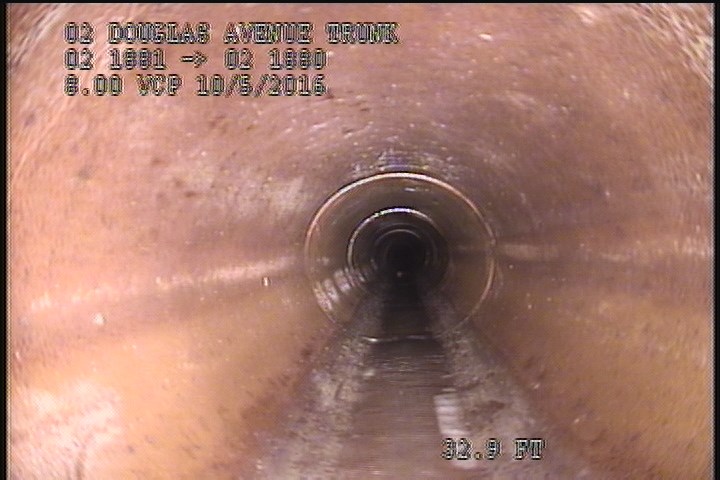

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

    32.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

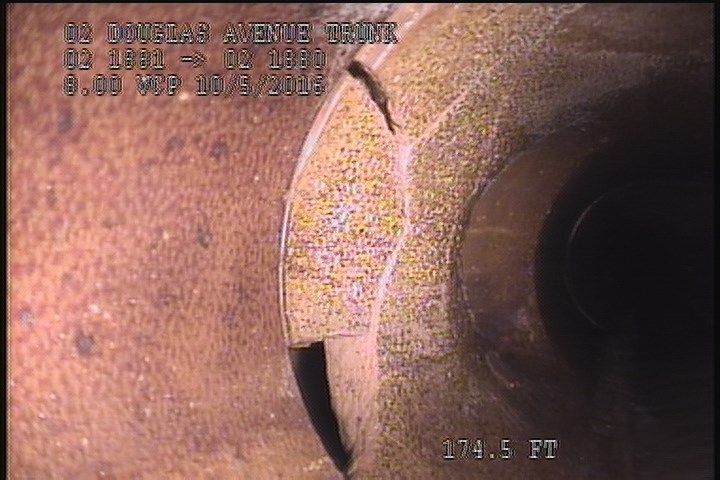

  • Broken Void Visible, from 08 to 10 o'clock, within 8 inches of joint: YES

    174.5 ft. - Broken Void Visible, from 08 to 10 o'clock, within 8 inches of joint: YES

All inspections of P04239Work order 0596961

Observations (20)

DistanceCodeObservation
238.4CM—
62.2TFA—
0MWM—
130.9TFUnkown, 45% DEBRIS
0MWL—
0AMH10:54AM
174.5BVV—
9.2TFUnkown
102.7TFA—
32.9DAGS—
175.8TFDMULTIPLE CRACKS
4.9CM—
6TFCOpen
186.7TBOpen
30.8CM—
186TFC—
24.1TFOpen
47TFA—
241.3AMH11:24AM
23.3CM—

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2016-10-05T09:13:06-07:00
