Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2016, 10:27 AM

  • 02 01561_15 1560_1052016_050718.mp4

Date
10/05/2016
W/O
0596822
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00230
PipeID
P03994
Time
3:27 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0311
Sewer Name
02 ARIZONA AVENUE TRUNK, SECTION 1
City
LOS ANGLES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20161005MDM_ARIZONA_AVENUE_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 1562
Downstream MH
15 1561
Dir. of Survey
Downstream
Length Surveyed
243.9 ft.
Total Length
243.9 ft.
Structural Index
2
Structural Quick
332C
Structural Rating
45
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
47
Pipe schematic from manhole 02 1562 to 15 1561
MH: 02 1562MH: 15 1561downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:55AM0 ft. MWL - Water Level, 10 %of cross sectional area4.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT4.2 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT6.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE6.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE10.1 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H10.1 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL12 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - H15.4 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - SL15.4 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H17.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H17.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H19.8 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H19.8 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H23 ft. FC - Fracture Circumferential, from 09 to 04 o'clock, within 8 inches of joint: YES - H25 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H26.7 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open30.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H30.3 ft. FC - Fracture Circumferential, from 10 to 04 o'clock, within 8 inches of joint: YES - SL32.1 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS32.1 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS32.1 ft. MGO - General Observation - 15" VCP32.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS32.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS41.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped82.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open128.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped131.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open180.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open182.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start216.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped218.1 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open243.6 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 30% SLIGHT243.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish243.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% SLIGHT243.6 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 30% HAIRLINE243.6 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped243.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 50% HAIRLINE243.6 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active243.9 ft. AMH - Downstream Manhole, Survey Ends - 5:40AM

Observation photos (2)

  • General Observation - 15" VCP

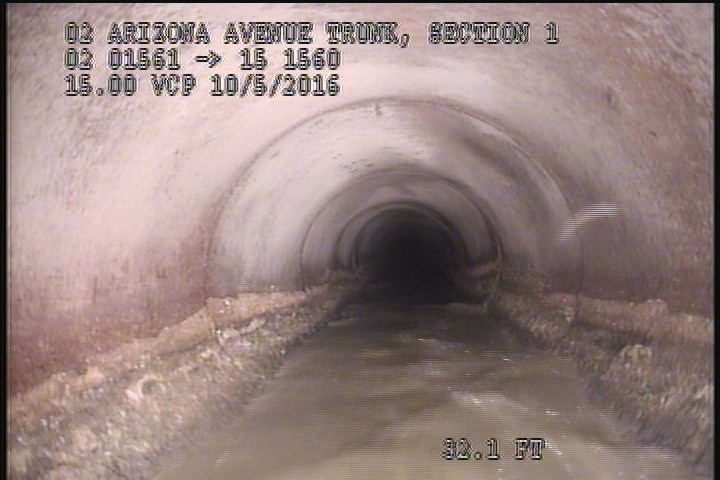

    32.1 ft. - General Observation - 15" VCP

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

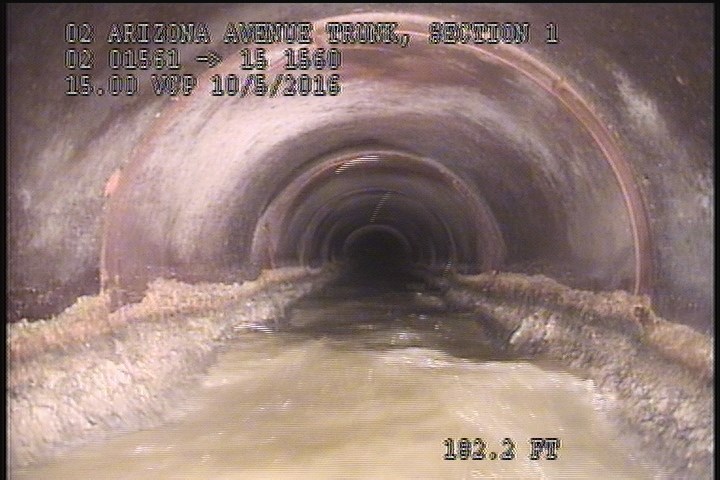

    182.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P03994Work order 0596822

Observations (42)

DistanceCodeObservation
6.9FCHAIRLINE
32.1FLSLIGHT AT JOINTS
243.6FL30% SLIGHT
15.4FCSL
23FCH
10.1FCH
243.6DAGS—
30.1FCH
19.8FCH
32.1FLHAIRLINE AT JOINTS
0MWM—
243.6FC40% SLIGHT
0AMH4:55AM
30.3FCSL
4.2FCSLIGHT
182.2DAGS—
0MWL—
17.3FCH
243.6FL30% HAIRLINE
10.1FCSL
12FCH
131.9TBOpen
4.2FCSLIGHT
25FCH
243.9AMH5:40AM
218.1TBOpen
15.4FCH
32.1MGO15" VCP
41.3TFCCapped
180.6TFOpen
216.2TFCCapped
32.1FCHAIRLINE AT JOINTS
6.9FCHAIRLINE
32.1FCSLIGHT AT JOINTS
243.6MGOConn. @ Mh, 9 O' Clock. Capped
128.4TFCCapped
17.3FLH
82.6TFOpen
19.8FCH
243.6FC50% HAIRLINE
26.7TBOpen
243.6MGOConn. @ Mh, 3 O' Clock. Active

Properties (4)

custom_field_three
SLIGHT & HAIRLINE FRACTURES EVERY JOINT
custom_field_two
3
customer
LACSD
datetime
2016-10-05T03:27:14-07:00
