Wastewater/Activity/PacpInspection/1.0Oct 3, 2016, 08:20 PM
C 0246_C 0245_1032016_132752.mp4
- Date
- 10/03/2016
- W/O
- 0591689
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00928
- PipeID
- P20312
- Time
- 1:20 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0307
- Sewer Name
- C JOINT OUTFALL C - UNIT 6A
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 17
- Purpose
- Capital Improvement Program Assesment
- Project
- 20161003AM_JOINT_OUTFALL_C_UNIT_6A
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- C 0246
- Downstream MH
- C 0245
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 5132
- Structural Rating
- 15
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 19
Observation photos (3)

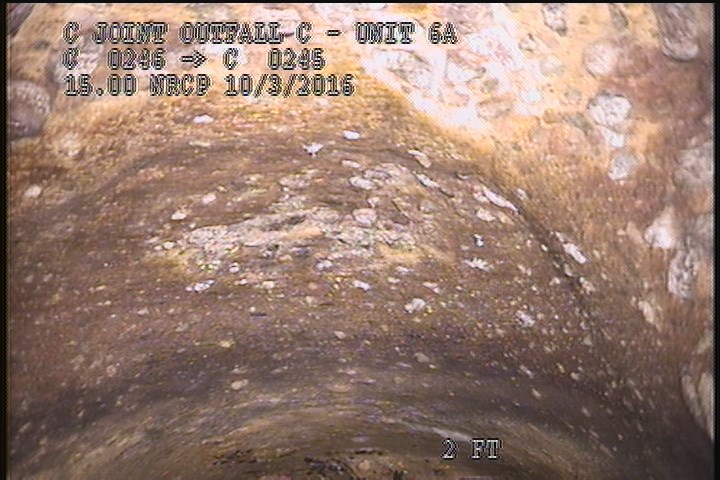

0 ft. - Upstream Manhole, Survey Begins - 1:22 PM

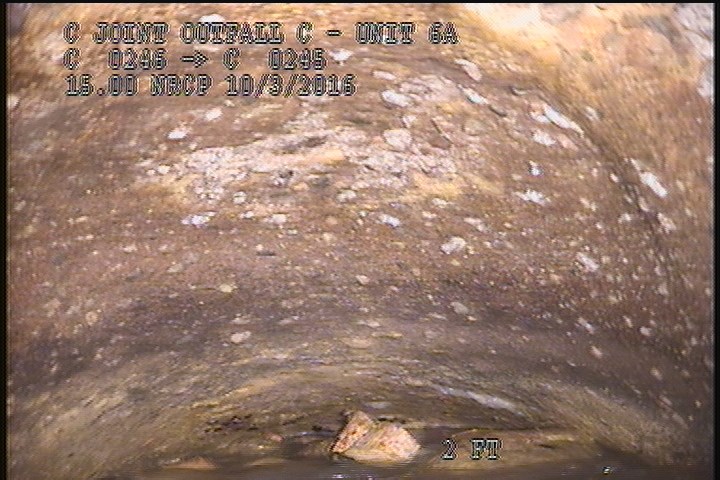

2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO

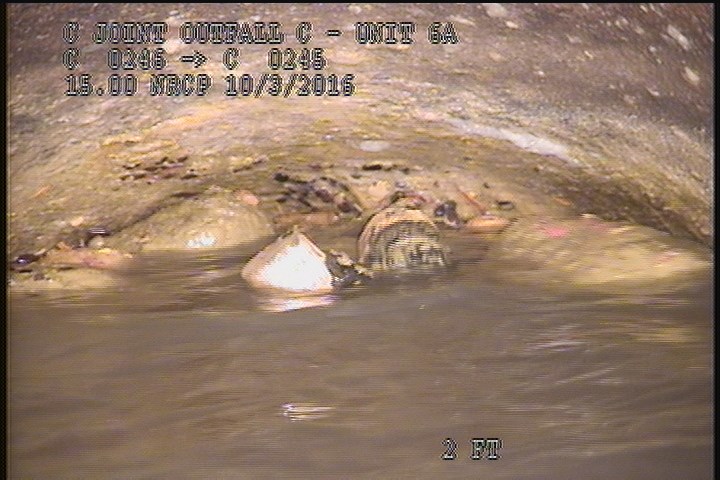

2.1 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 2 | SSS | — |
| 2 | SMW | POSSIBLE |
| 0 | AMH | 1:22 PM |
| 2.1 | MSA | VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON |
| 2 | SAV | — |
| 0 | MGO | CORRODED CHANNEL |
| 2 | LD | — |
| 0 | MWL | — |
| 2 | MGO | GREASE @ THE DROP OF THE SIPHON |
| 2 | SAV | — |
Properties (5)
- additional_info
- RFIR INSPECTION, VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
- custom_field_three
- POSSIBLE MISSING WALL
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-10-03T13:20:44-07:00
