Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 3, 2016, 09:20 AM

  • 08 0307_08 0306_1032016_022814.mp4

Date
10/03/2016
W/O
0591702
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00013
PipeID
P00353
Time
2:20 AM
Certificate
101406022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0304
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20160930MDM_KEYSTONE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0307
Downstream MH
08 0306
Dir. of Survey
Downstream
Length Surveyed
92.7 ft.
Total Length
92.7 ft.
Structural Index
2
Structural Quick
352A
Structural Rating
37
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
37
Pipe schematic from manhole 08 0307 to 08 0306
MH: 08 0307MH: 08 0306downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:20AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area3 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE3 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H3 ft. FS - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES, Start - HAIRLINE15.1 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H16 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped16 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H21.2 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Finish - H21.2 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - S24 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H27.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H27.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H29.8 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H33.5 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - S39.6 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H45.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H61.2 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - H63.5 ft. MWM - Water Mark, 40 %of cross sectional area63.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H67.4 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Finish - S72.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H72.8 ft. FS - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES, Finish - H92.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active92.7 ft. AMH - Downstream Manhole, Survey Ends - 2:45AM

Observation photos (3)

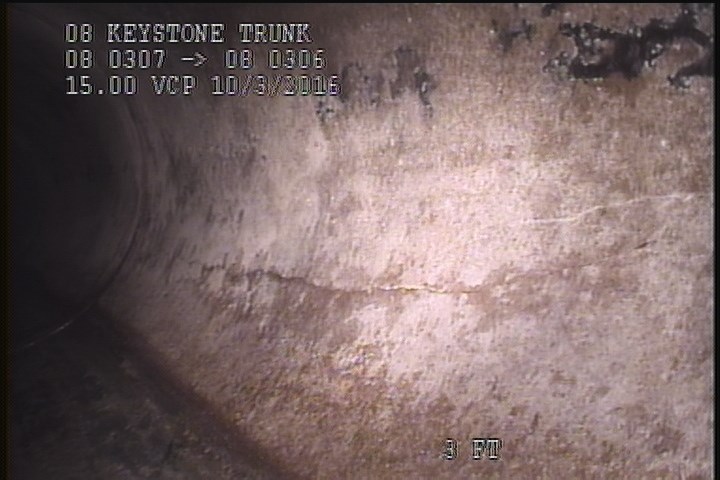

  • Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    3 ft. - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

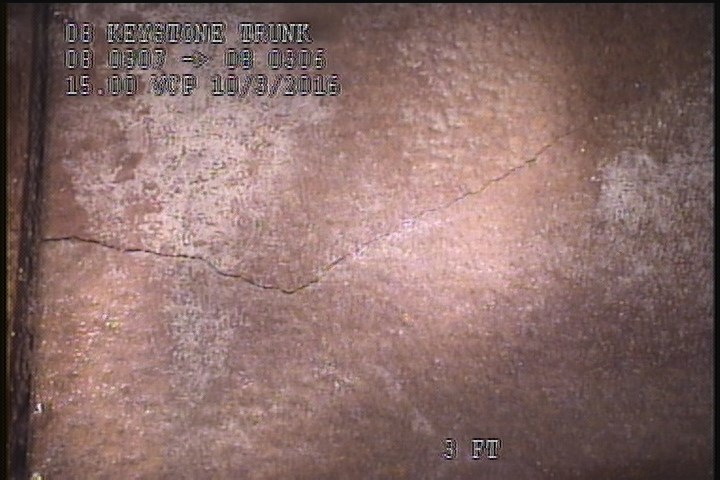

  • Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    3 ft. - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

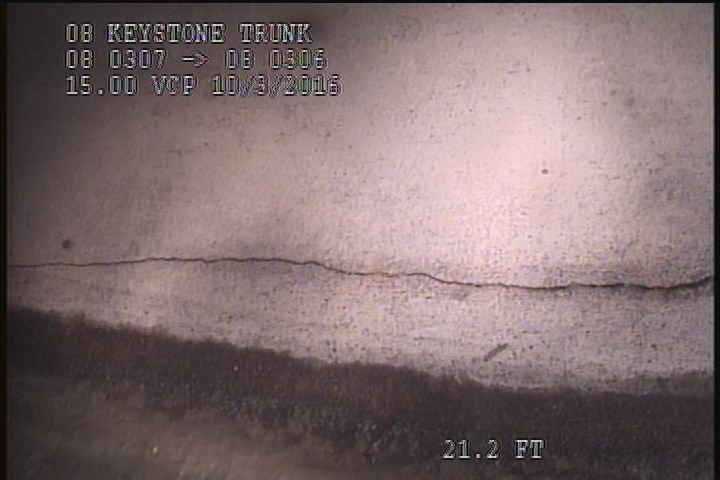

  • Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - S

    21.2 ft. - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - S

All inspections of P00353Work order 0591702

Observations (27)

DistanceCodeObservation
92.7AMH2:45AM
0AMH2:20AM
63.5MWM—
16TFCCapped
0MGOConn. @ Mh, 3 O' Clock. Capped
92.2MGOConn. @ Mh, 3 O' Clock. Active
61.2FCH
29.8FCH
45.2FLH
3FSHAIRLINE
27.7FCH
72.8FCH
15.1FCH
63.5FCH
3FCH
0MWL—
21.2FSH
21.2FSS
0MWM—
16FLH
67.4FSS
27.7FCH
3FSHAIRLINE
39.6FCH
72.8FSH
33.5FCS
24FCH

Properties (4)

custom_field_three
SLIGHT SPIRAL FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-10-03T02:20:00-07:00
