Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 30, 2016, 08:41 AM

  • 08 0313_08 0312_9302016_014831.mp4

Date
09/30/2016
W/O
0591702
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00013
PipeID
P00360
Time
1:41 AM
Certificate
101406022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0300
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20160930MDM_KEYSTONE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0313
Downstream MH
08 0312
Dir. of Survey
Downstream
Length Surveyed
281.8 ft.
Total Length
281.8 ft.
Structural Index
3
Structural Quick
3B29
Structural Rating
69
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
69
Pipe schematic from manhole 08 0313 to 08 0312
MH: 08 0313MH: 08 0312downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE13.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - HAIRLINE17.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - H20.2 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H21.1 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H26.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES26.7 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - H27.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped27.5 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - H27.5 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - H27.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H29.1 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT29.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H31 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - H31 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - H35.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - S38.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H42.6 ft. FC - Fracture Circumferential, from 08 to 01 o'clock, within 8 inches of joint: YES - H44.2 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Finish - H44.2 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Finish - H49.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS49.2 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS49.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS49.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS56.9 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - H63.1 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES - H78.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open85 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Finish - H99.1 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - H99.1 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - H127.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped180.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"226.1 ft. MGO - General Observation - 15" VCP226.1 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Finish - H233.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - SLIGHT240.5 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT240.5 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Finish - H247.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped250.6 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Finish - S250.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - S258.3 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - H281.5 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT281.5 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT281.5 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES, Finish - 30% HAIRLINE281.5 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% HAIRLINE281.5 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Finish - H281.8 ft. AMH - Downstream Manhole, Survey Ends - 2:45AM

Observation photos (4)

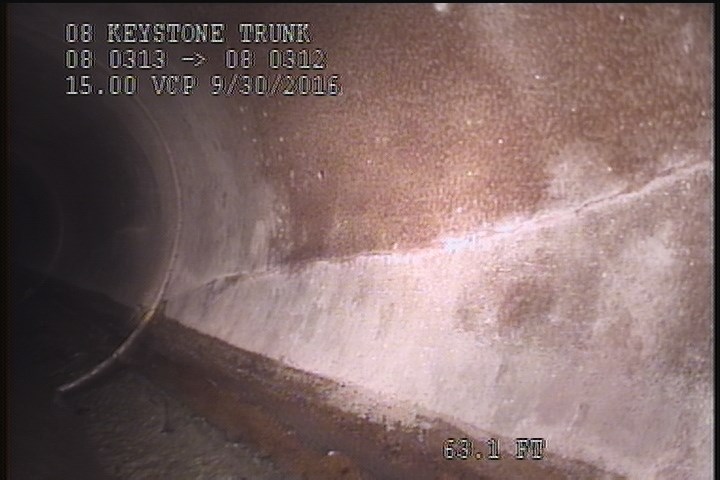

  • Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - H

    56.9 ft. - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - H

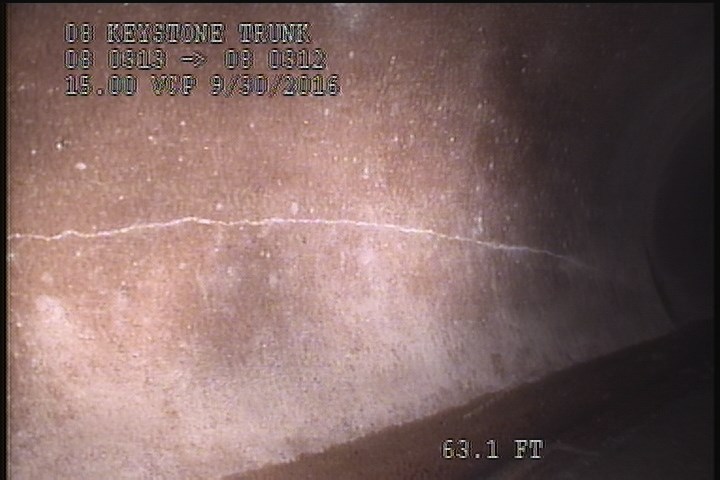

  • Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES - H

    63.1 ft. - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES - H

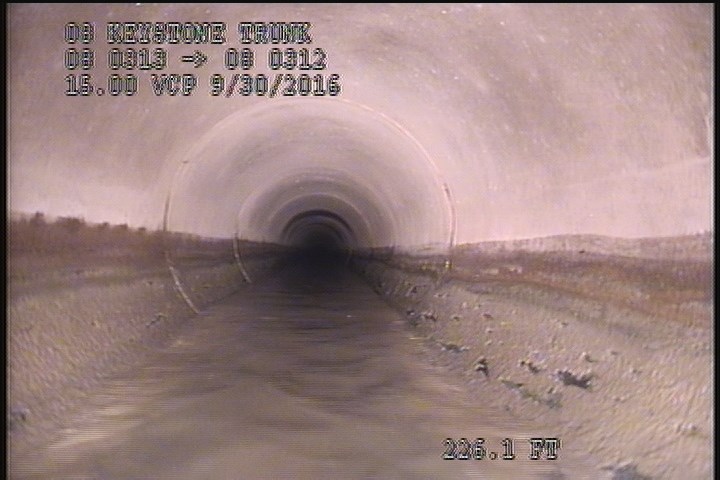

  • General Observation - 15" VCP

    226.1 ft. - General Observation - 15" VCP

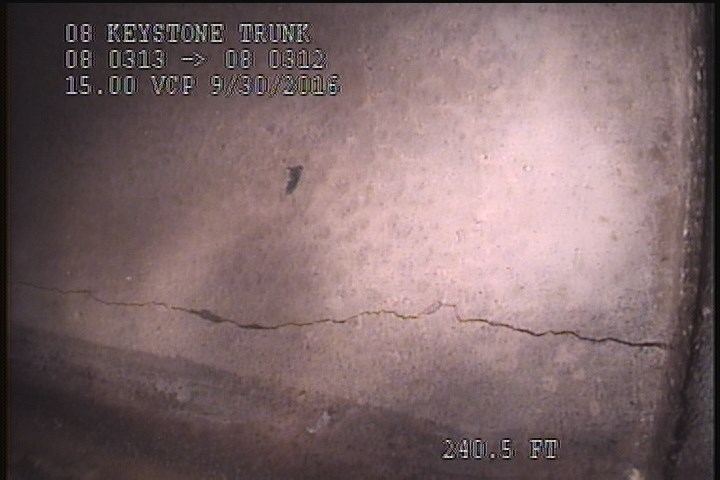

  • Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    240.5 ft. - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P00360Work order 0591702

Observations (51)

DistanceCodeObservation
20.2FCH
226.1MGO15" VCP
281.5FL20% SLIGHT
21.1FLH
281.5FC20% SLIGHT
49.2FLHAIRLINE AT JOINTS
127.8TFCCapped
13.3FLHAIRLINE
250.6FSS
250.6FLS
0MGOConn. @ Mh, 9 O' Clock. Active
27.5TFCCapped
17.1FLH
0MWL—
0MWM—
26.7FLH
63.1FSH
56.9FSH
31FSH
85FSH
99.1FSH
281.5FL30% HAIRLINE
226.1FSH
27.5FLH
258.3FSH
35.1FCS
29.1FCSLIGHT
240.5FSSLIGHT
281.5FC40% HAIRLINE
240.5FSH
49.2FCSLIGHT AT JOINTS
42.6FCH
281.5FSH
31FSH
49.2FLSLIGHT AT JOINTS
29.1FCH
180.3TFC—
78.3TFOpen
27.5FLH
38.1FCH
281.8AMH2:45AM
49.1FCHAIRLINE AT JOINTS
44.2FSH
4FCHAIRLINE
233.2FLSLIGHT
44.2FSH
27.5FLH
99.1FSH
26.5FL—
247.3TFCCapped
0AMH1:45AM

Properties (4)

custom_field_three
SLIGHT SPRIAL JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-09-30T01:41:03-07:00
