Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 26, 2016, 07:27 AM

  • E 0110_E 0109_9262016_011143.mp4

Date
09/26/2016
W/O
0598359
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00032
PipeID
P11336
Time
12:27 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7240
Sewer Name
E JOINT OUTFALL E - UNIT 5
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Maintenance Related
Project
20160927MDM_JOINT_OUTFALL_E_UNIT_5
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
E 0110
Downstream MH
E 0109
Dir. of Survey
Downstream
Length Surveyed
433.5 ft.
Total Length
433.5 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole E 0110 to E 0109
MH: E 0110MH: E 0109downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:30AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - CROWN SPRAY 100% START 8:00 TO 4:008 ft. MGO - General Observation - MAG COAT 100%100.4 ft. MGO - General Observation - CROWN SPRAY 100%135.7 ft. MGP - General Photograph282.9 ft. SSS - Surface Spalling, at 03 o'clock, within 8 inches of joint: NO - SWOLLEN CONCRETE UNDER MAG COAT376.5 ft. MGP - General Photograph376.5 ft. MGO - General Observation - 100% CROWN SPRAY433 ft. MGO - General Observation - CROWN SPRAY 100% FINISH433.5 ft. AMH - Downstream Manhole, Survey Ends - 1:05AM

Observation photos (7)

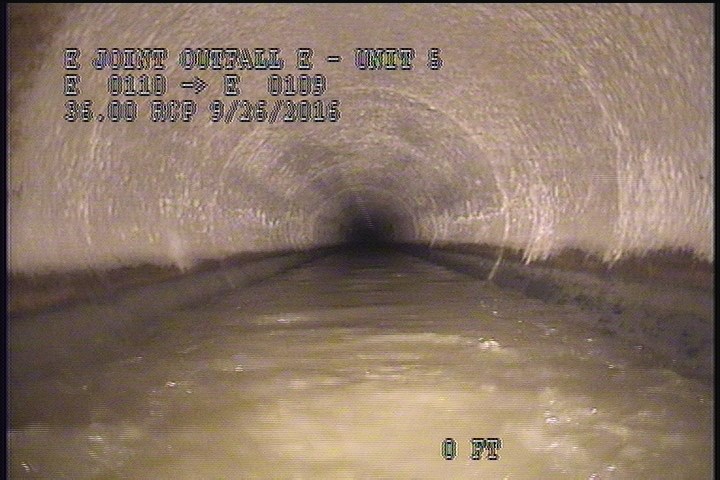

  • General Observation - CROWN SPRAY 100% START 8:00 TO 4:00

    2 ft. - General Observation - CROWN SPRAY 100% START 8:00 TO 4:00

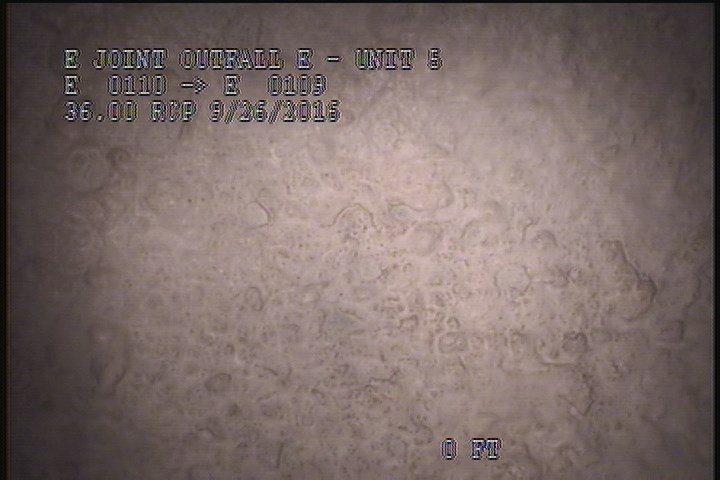

  • General Observation - MAG COAT 100%

    8 ft. - General Observation - MAG COAT 100%

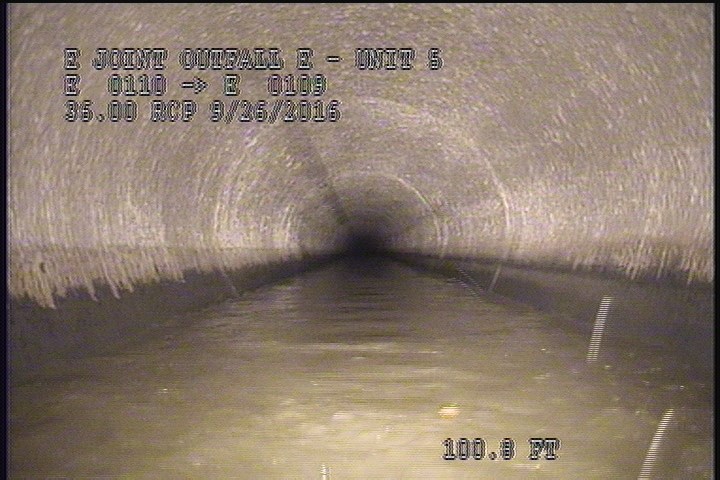

  • General Observation - CROWN SPRAY 100%

    100.4 ft. - General Observation - CROWN SPRAY 100%

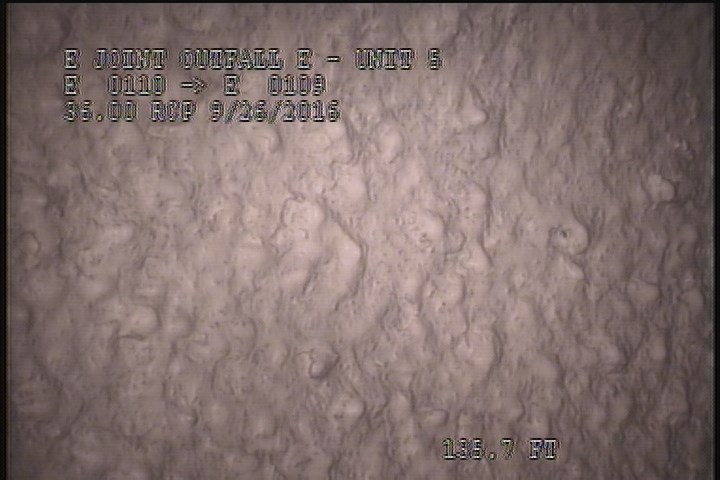

  • General Photograph

    135.7 ft. - General Photograph

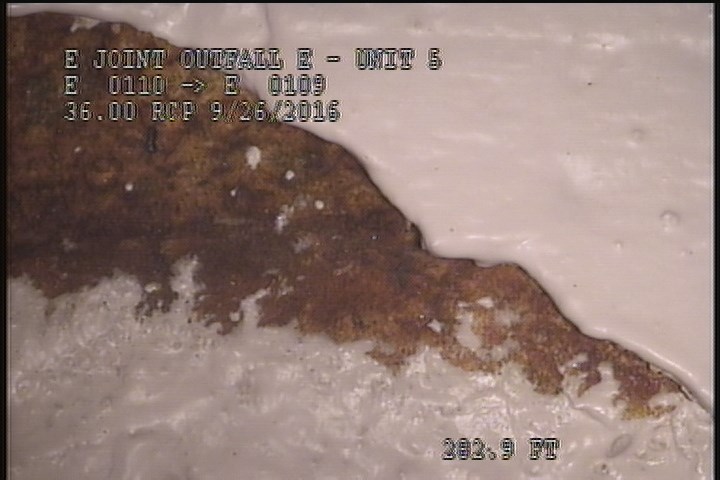

  • Surface Spalling, at 03 o'clock, within 8 inches of joint: NO - SWOLLEN CONCRETE UNDER MAG COAT

    282.9 ft. - Surface Spalling, at 03 o'clock, within 8 inches of joint: NO - SWOLLEN CONCRETE UNDER MAG COAT

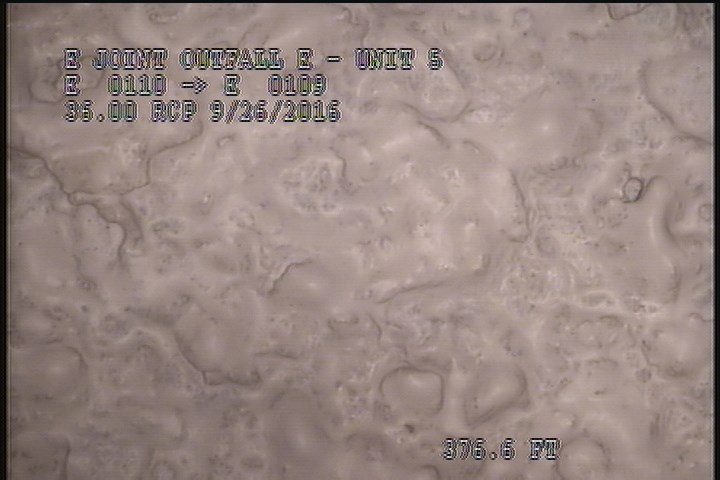

  • General Photograph

    376.5 ft. - General Photograph

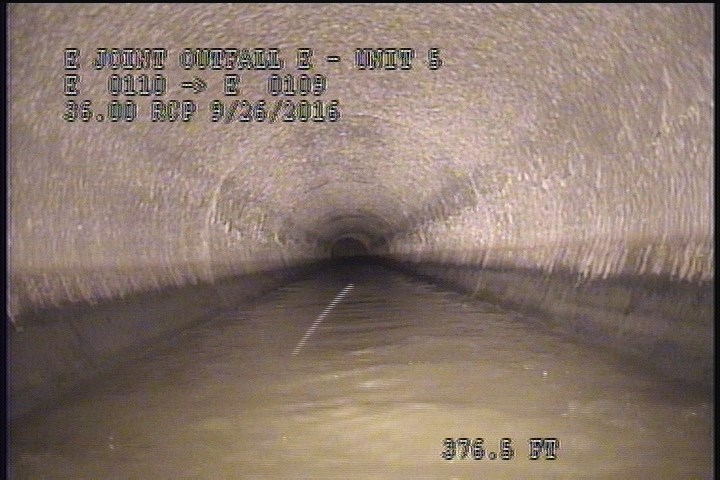

  • General Observation - 100% CROWN SPRAY

    376.5 ft. - General Observation - 100% CROWN SPRAY

All inspections of P11336Work order 0598359

Observations (12)

DistanceCodeObservation
433.5AMH1:05AM
0MWL—
100.4MGOCROWN SPRAY 100%
282.9SSSSWOLLEN CONCRETE UNDER MAG COAT
2MGOCROWN SPRAY 100% START 8:00 TO 4:00
0AMH12:30AM
376.5MGP—
8MGOMAG COAT 100%
433MGOCROWN SPRAY 100% FINISH
135.7MGP—
0MWM—
376.5MGO100% CROWN SPRAY

Properties (4)

additional_info
CROWN SPRAY CCTV
customer
LACSD
datetime
2016-09-26T00:27:55-07:00
year_laid
19870402
