Wastewater/Activity/PacpInspection/1.0Sep 26, 2016, 04:42 PM
30 0298_30 0297_9262016_095658.mp4
- Date
- 09/26/2016
- W/O
- 0598388
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00876
- PipeID
- P18005
- Time
- 9:42 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7242
- Sewer Name
- 30 PLAZA TRUNK
- City
- PALOS VERDES ESTATES
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20160926AM_PLAZA_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 30 0297
- Downstream MH
- 30 0298
- Dir. of Survey
- Upstream
- Length Surveyed
- 138.3 ft.
- Total Length
- 138.3 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (7)

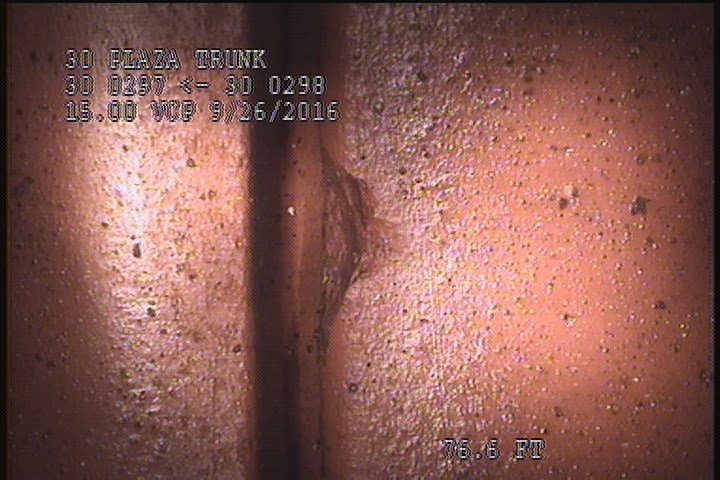

76.6 ft. - General Observation - CHIPPING

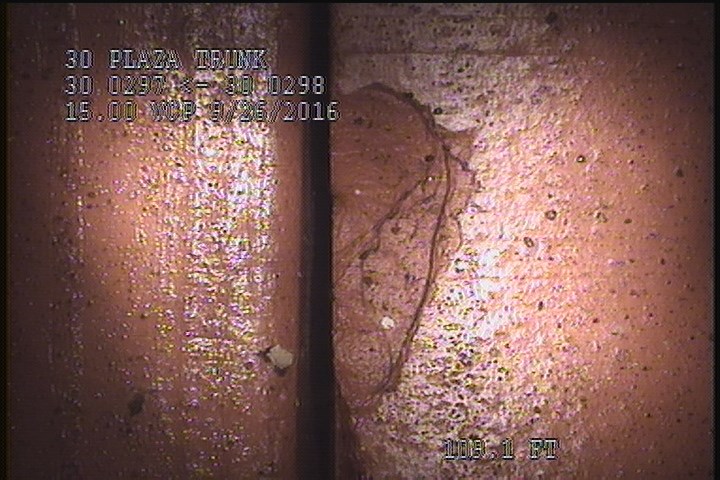

109.1 ft. - General Observation - CHIPPING

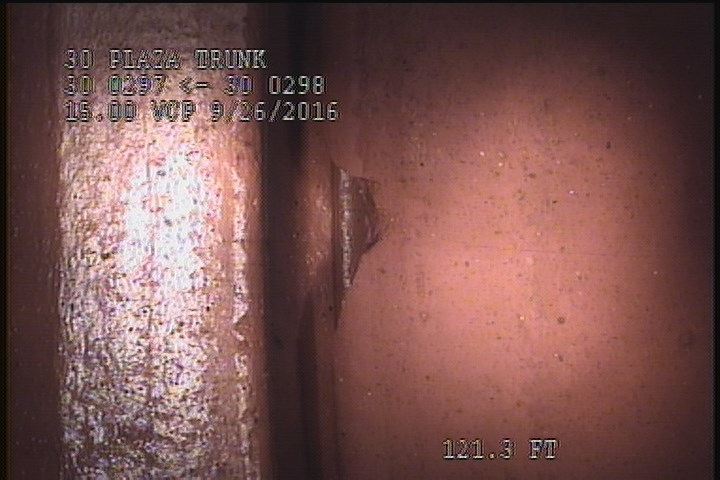

121.3 ft. - General Observation - CHIPPING

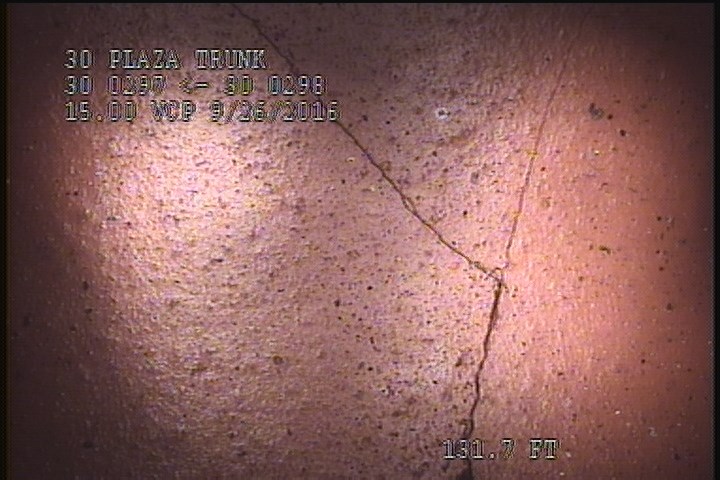

131.7 ft. - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: NO

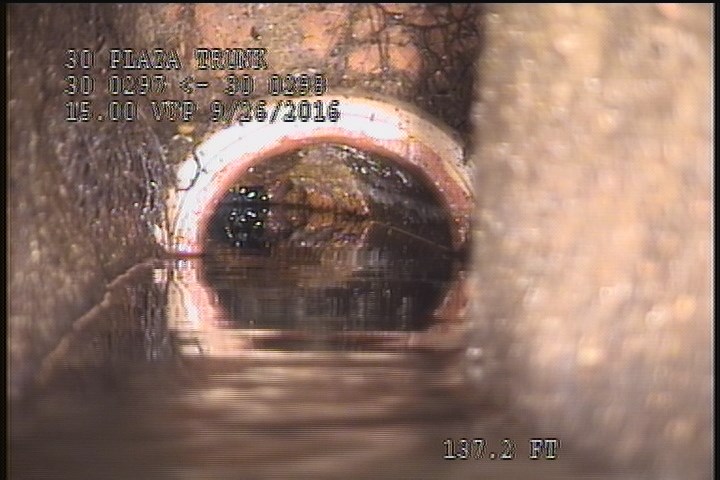

137.2 ft. - General Observation - UNKNOWN CONN. INSIDE THE MH. @ 01 O'CLOCK

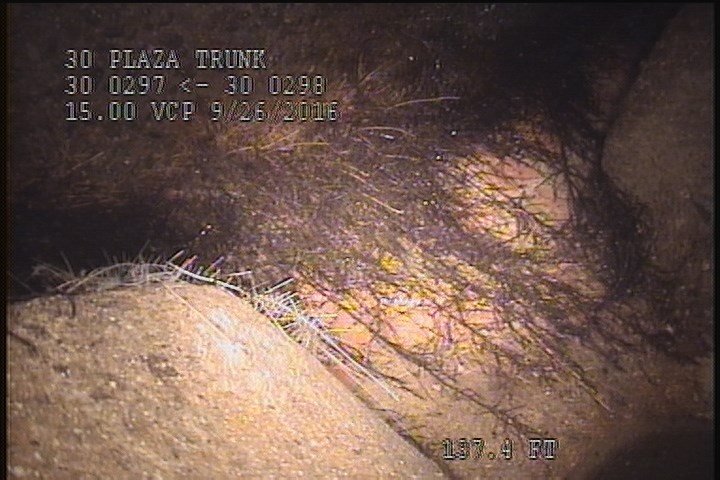

137.4 ft. - General Observation - ROOTS INSIDE THE MH. STRUCTURE

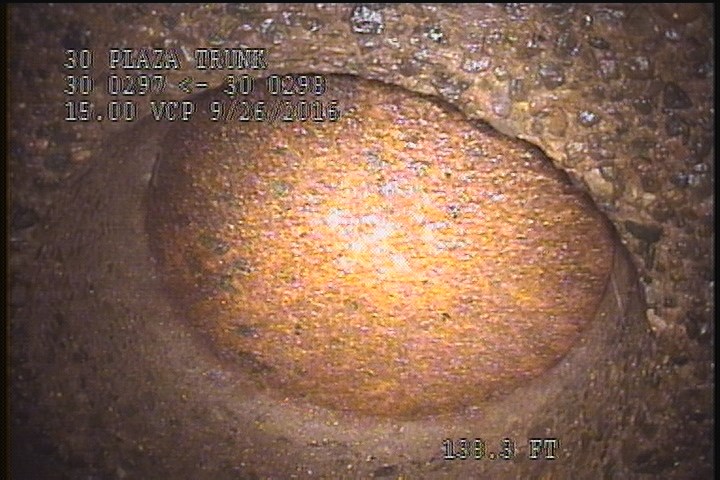

138.3 ft. - Upstream Manhole, Survey Ends - 10:14 AM, POSSIBLY BURIED OR PRESSURE PLATED
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 137.1 | MGO | SEPARATED JOINTS THROUGHOUT THE REACH |
| 121.3 | MGO | CHIPPING |
| 137.4 | MGO | ROOTS INSIDE THE MH. STRUCTURE |
| 138.3 | AMH | 10:14 AM, POSSIBLY BURIED OR PRESSURE PLATED |
| 137.2 | MGO | UNKNOWN CONN. INSIDE THE MH. @ 01 O'CLOCK |
| 131.7 | CM | — |
| 109.1 | MGO | CHIPPING |
| 101.1 | CM | POSSIBLE |
| 76.6 | MGO | CHIPPING |
| 0 | MWL | — |
| 0 | AMH | 9:56 AM |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-26T09:42:35-07:00
