Wastewater/Activity/PacpInspection/1.0Sep 26, 2016, 08:48 PM
18 0304_18 0303_9262016_143056.mp4
- Date
- 09/26/2016
- W/O
- PENDING
- Weather
- Very Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00683
- PipeID
- P14135
- Time
- 1:48 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7243
- Sewer Name
- 18 LA MIRADA TRUNK, SECTS 1&2
- City
- SANTA FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Maintenance Related
- Project
- 20160926AM_LA_MIRADA_TRUNK_SECTS_1_2
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 18 0304
- Downstream MH
- 18 0303
- Dir. of Survey
- Downstream
- Length Surveyed
- 261.7 ft.
- Total Length
- 261.7 ft.
- Structural Index
- 5
- Structural Quick
- 5200
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)

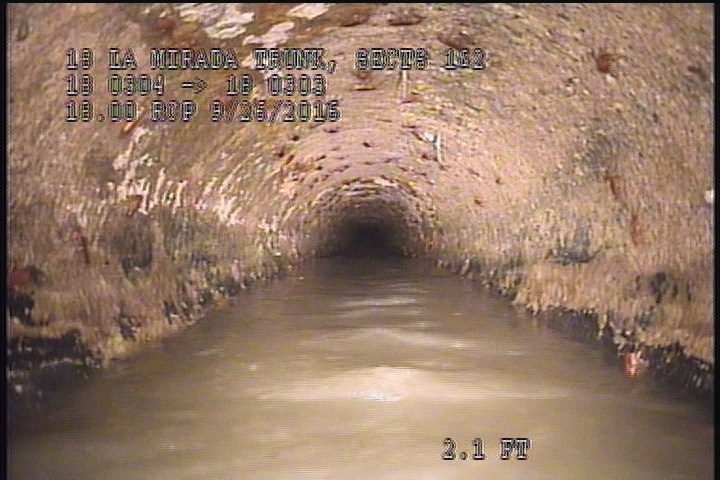

0 ft. - Upstream Manhole, Survey Begins - 2:30 PM

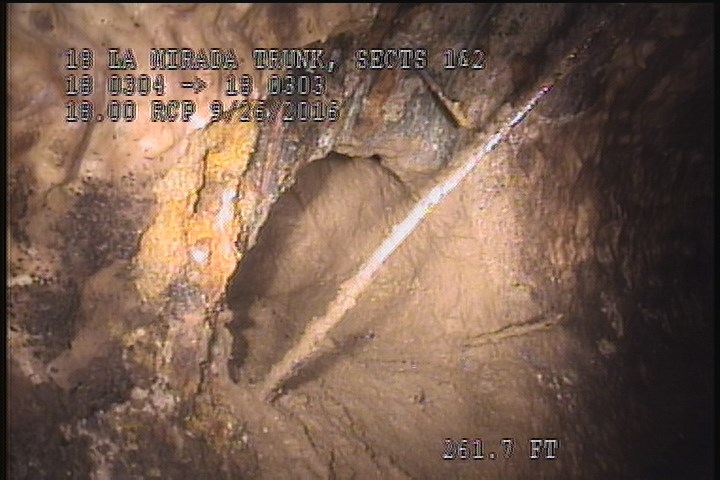

0 ft. - Water Level, 35 %of cross sectional area

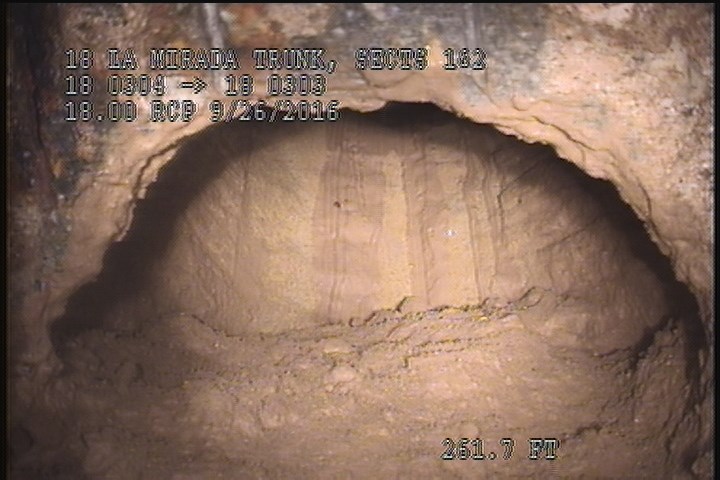

261.7 ft. - Hole Soil Visible, from 10 to 11 o'clock, within 8 inches of joint: NO

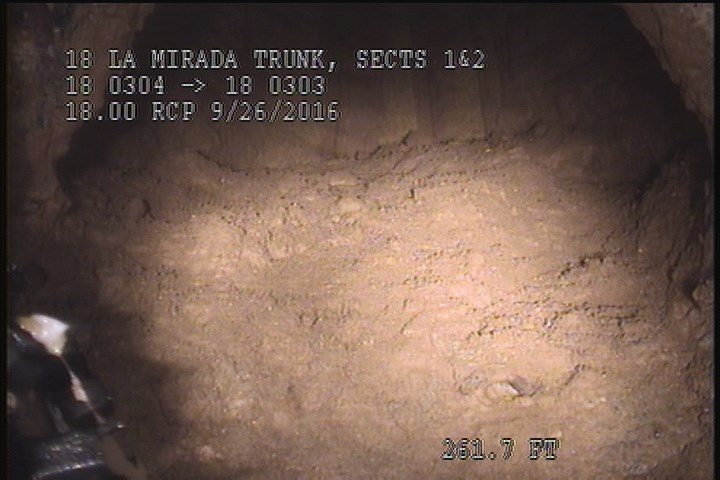

261.7 ft. - Hole Void Visible, from 10 to 11 o'clock, within 8 inches of joint: NO
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 261.7 | MSA | JUST NEEDED TO CONFIRM THAT THERE WAS A HOLE IN THE PIPE |
| 261.7 | HSV | — |
| 261.7 | HVV | — |
| 0 | MWM | — |
| 0 | AMH | 2:30 PM |
| 0 | MWL | — |
Properties (5)
- additional_info
- EMERGENCY INSPECTION/POST DEBRIS INSPECTION, CONTRACTOR DRILLED THROUGH OUR PIPE APPROX. 259' D/S OF MH. 304
- custom_field_three
- EMERGENCY
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-09-26T13:48:33-07:00
