Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2016, 03:49 PM
Date
09/22/2016
W/O
0592183
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00337
PipeID
P21059
Time
8:49 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7239
Sewer Name
A JOINT OUTFALL A - UNIT 6
City
LONG BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
03
Purpose
Routine Assessment
Project
20160922AM_JOINT_OUTFALL_A_UNIT_6
Material
RGRCP-PTL
Shape
Circular
Height
66 in.
Upstream MH
A 1079
Downstream MH
A 1078
Dir. of Survey
Downstream
Length Surveyed
713.9 ft.
Total Length
713.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole A 1079 to A 1078
MH: A 1079MH: A 1078downstream0 ft. MWM - Water Mark, 70 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:15 AM0 ft. MWL - Water Level, 60 %of cross sectional area712.6 ft. MGO - General Observation - GREASE/DEBRIS THROUGHOUT THE REACH713.9 ft. AMH - Downstream Manhole, Survey Ends - 9:59 AM, FLOW METER INSIDE THE MH.

Observation photos (4)

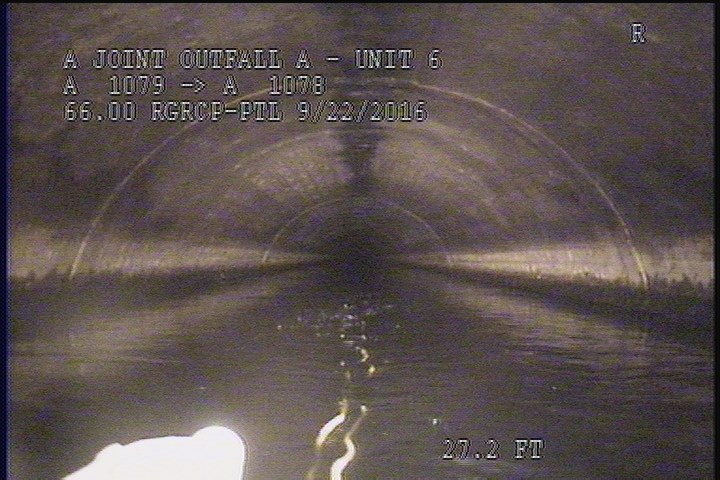

  • Water Mark, 70 %of cross sectional area

    0 ft. - Water Mark, 70 %of cross sectional area

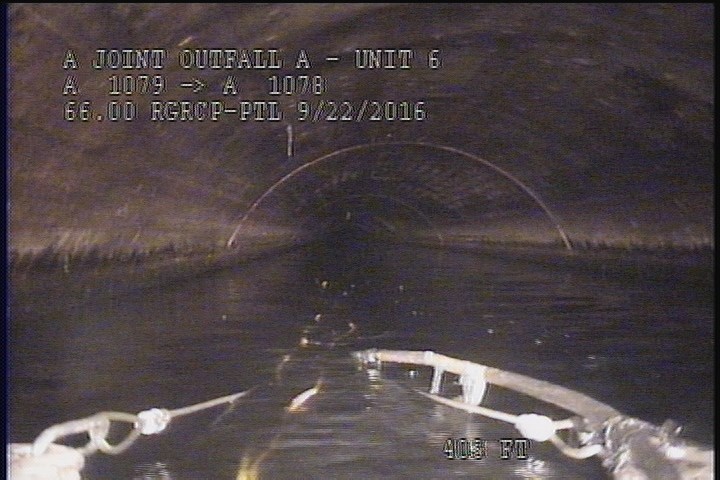

  • Upstream Manhole, Survey Begins - 9:15 AM

    0 ft. - Upstream Manhole, Survey Begins - 9:15 AM

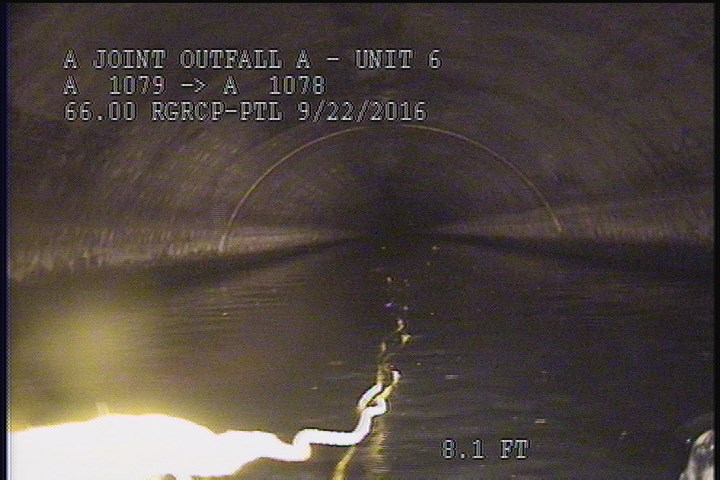

  • Water Level, 60 %of cross sectional area

    0 ft. - Water Level, 60 %of cross sectional area

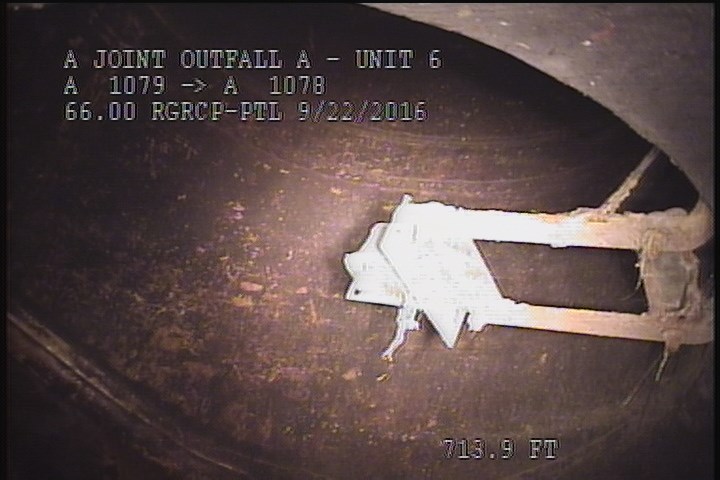

  • Downstream Manhole, Survey Ends - 9:59 AM, FLOW METER INSIDE THE MH.

    713.9 ft. - Downstream Manhole, Survey Ends - 9:59 AM, FLOW METER INSIDE THE MH.

All inspections of P21059Work order 0592183

Observations (5)

DistanceCodeObservation
0MWM—
713.9AMH9:59 AM, FLOW METER INSIDE THE MH.
0AMH9:15 AM
0MWL—
712.6MGOGREASE/DEBRIS THROUGHOUT THE REACH

Properties (4)

custom_field_two
4
customer
LACSD
datetime
2016-09-22T08:49:35-07:00
year_laid
19960502
