Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 19, 2016, 08:45 PM

  • G 0101_G 0100_9192016_135735.mp4

Date
09/19/2016
W/O
PENDING
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z01087
PipeID
P22535
Time
1:45 PM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7236
Sewer Name
G JOINT OUTFALL G - UNIT 1 REPLACEMENT
City
RANCHO DOMINGUEZ
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Maintenance Related
Project
20160919MI_JOINT_OUTFALL_G_UNIT_1_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
63 in.
Upstream MH
G 0101
Downstream MH
G 0100
Dir. of Survey
Downstream
Length Surveyed
8.2 ft.
Total Length
8.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole G 0101 to G 0100
MH: G 0101MH: G 0100downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02:00PM0 ft. MGO - General Observation - EMERGENCY INSPECTION, LOOKING FOR SINKHOLE0 ft. MWM - Water Mark, 40 %of cross sectional area8.2 ft. MSA - Survey Abandoned - 02:06PM

Observation photos (2)

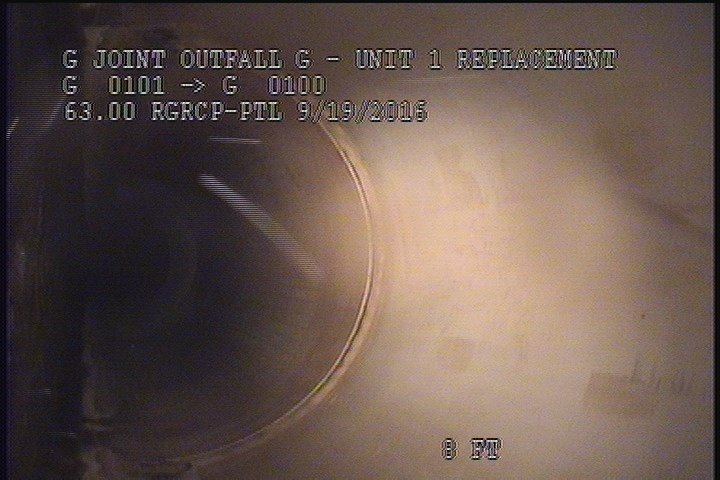

  • General Observation - EMERGENCY INSPECTION, LOOKING FOR SINKHOLE

    0 ft. - General Observation - EMERGENCY INSPECTION, LOOKING FOR SINKHOLE

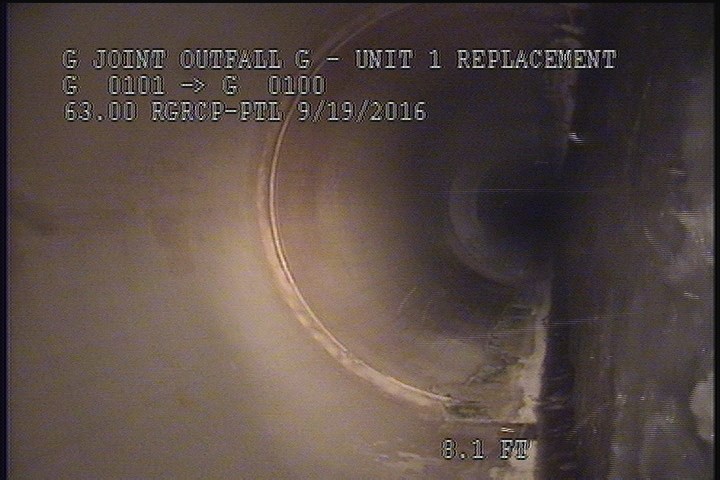

  • Survey Abandoned - 02:06PM

    8.2 ft. - Survey Abandoned - 02:06PM

All inspections of P22535Work order PENDING

Observations (5)

DistanceCodeObservation
0MWL—
8.2MSA02:06PM
0AMH02:00PM
0MGOEMERGENCY INSPECTION, LOOKING FOR SINKHOLE
0MWM—

Properties (5)

additional_info
LOOKING FOR SINKHOLE APPROX. 10 FT. D/S
custom_field_two
4
customer
LACSD
datetime
2016-09-19T13:45:21-07:00
year_laid
20000104
