Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2016, 09:52 AM

  • 05 2366_05 2365_9222016_035441.mp4

Date
09/22/2016
W/O
0585472
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00457
PipeID
P21894
Time
2:52 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0290
Sewer Name
05 IMPERIAL HIGHWAY EXTENSION TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
12
Purpose
Routine Assessment
Project
20160919MDM_IMPERIAL_HIGHWAY_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
05 2365
Downstream MH
05 2366
Dir. of Survey
Upstream
Length Surveyed
3 ft.
Total Length
3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 05 2365 to 05 2366
MH: 05 2365MH: 05 2366upstream0 ft. MSA - Survey Abandoned - UPLEG DOWNSTREAM SIPHON WEST3 ft. MWL - Water Level, 20 %of cross sectional area3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active3 ft. AMH - Upstream Manhole, Survey Begins - 3:55AM3 ft. MWM - Water Mark, 50 %of cross sectional area

Observation photos (2)

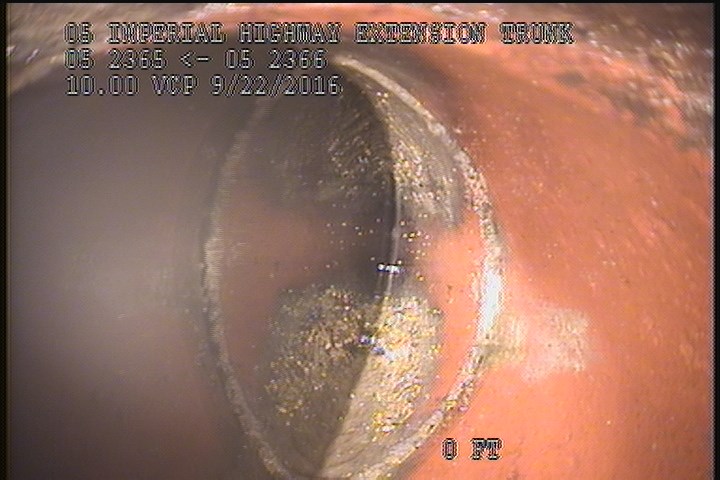

  • Water Mark, 50 %of cross sectional area

    0 ft. - Water Mark, 50 %of cross sectional area

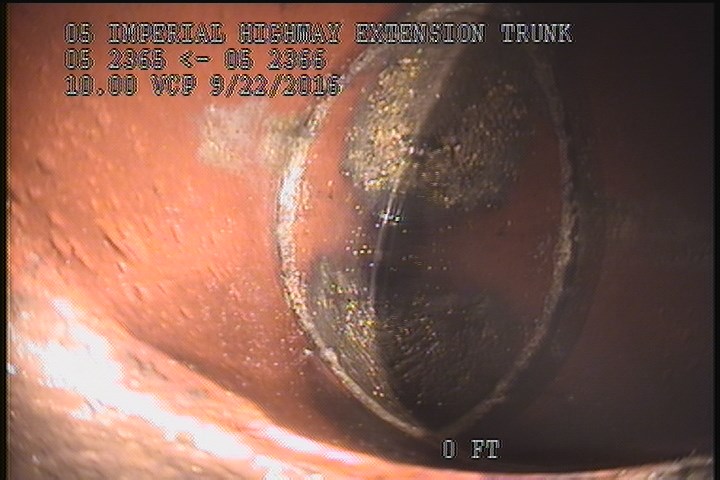

  • Survey Abandoned - UPLEG DOWNSTREAM SIPHON WEST

    3 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON WEST

All inspections of P21894Work order 0585472

Observations (5)

DistanceCodeObservation
0MWL—
0MGOConn. @ Mh, 3 O' Clock. Active
0AMH3:55AM
3MSAUPLEG DOWNSTREAM SIPHON WEST
0MWM—

Properties (3)

additional_info
UPLEG DOWNSTREAM SIPHON WEST
customer
LACSD
datetime
2016-09-22T02:52:08-07:00
