Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2016, 07:22 AM

  • 05 0871_05 0870_9222016_003316.mp4

Date
09/22/2016
W/O
0585472
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00457
PipeID
P06102
Time
12:22 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0287
Sewer Name
05 IMPERIAL HIGHWAY EXTENSION TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
12
Purpose
Routine Assessment
Project
20160919MDM_IMPERIAL_HIGHWAY_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
05 0871
Downstream MH
05 0870
Dir. of Survey
Downstream
Length Surveyed
333.7 ft.
Total Length
333.7 ft.
Structural Index
2
Structural Quick
352C
Structural Rating
53
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
57
Pipe schematic from manhole 05 0871 to 05 0870
MH: 05 0871MH: 05 0870downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:25AM2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start8.1 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE20.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H29.5 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H51 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES60.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H60.7 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H69.7 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H70.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open71.6 ft. FC - Fracture Circumferential, from 11 to 04 o'clock, within 8 inches of joint: YES72.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open72.7 ft. MWL - Water Level, 5 %of cross sectional area80.1 ft. MWM - Water Mark, 20 %of cross sectional area99 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H99 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H121.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open122.6 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT123.1 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - S123.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open173.3 ft. MGO - General Observation - 10" VCP180.1 ft. FC - Fracture Circumferential, from 11 to 04 o'clock, within 8 inches of joint: YES - H190 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES192.5 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H193.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open195.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped197.5 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H197.5 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - S198.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open203.5 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H209.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H216.9 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open231.2 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - H240.7 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - H256.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped259.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open285 ft. FC - Fracture Circumferential, from 10 to 04 o'clock, within 8 inches of joint: YES - H303.8 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H323.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open325.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open329.9 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - S329.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S333.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish333.7 ft. AMH - Downstream Manhole, Survey Ends - 1:15AM

Observation photos (2)

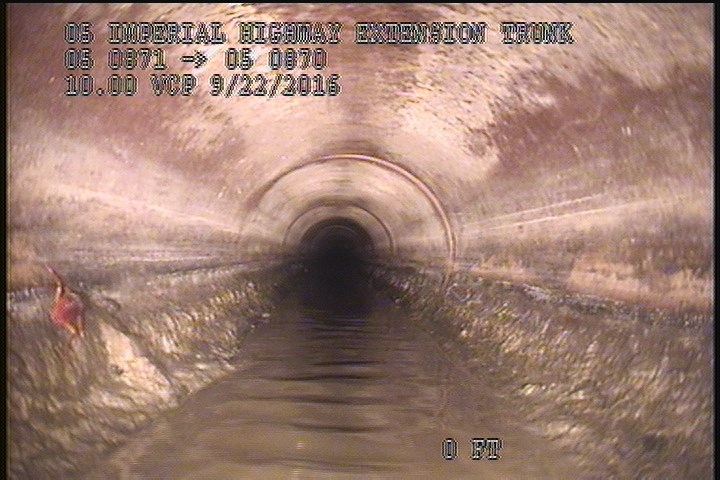

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

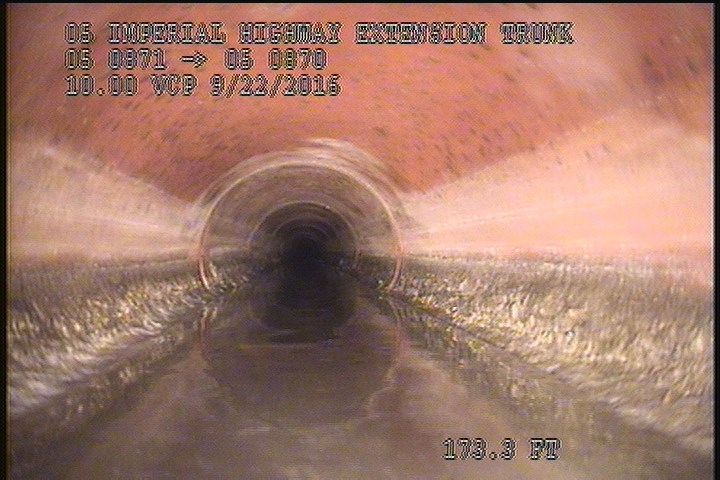

  • General Observation - 10" VCP

    173.3 ft. - General Observation - 10" VCP

All inspections of P06102Work order 0585472

Observations (48)

DistanceCodeObservation
71.6FC—
0MGOConn. @ Mh, 9 O' Clock. Capped
329.9FCS
216.9TBOpen
329.9FCS
197.5FCH
259.1TFOpen
69.7FCH
60.7FCH
0MWM—
285FCH
80.1MWM—
231.2FCH
0MGOConn. @ Mh, 3 O' Clock. Capped
99FCH
256.5TFCCapped
197.5FCS
333.7AMH1:15AM
99FLH
2DAGS—
122.6FCSLIGHT
195.8TFCCapped
180.1FCH
209.7FCH
190DAGS—
8.1FLHAIRLINE
72.7TFOpen
303.8FCH
325.1TFOpen
123.1FCS
123.7TFOpen
60.4FLH
203.5FCH
0MWL—
193.3TFOpen
323.2TFOpen
20.8FLH
198.9TBOpen
0AMH12:25AM
51CL—
192.5FCH
29.5FLH
240.7FCH
72.7MWL—
333.4DAGS—
70.6TFOpen
173.3MGO10" VCP
121.5TFOpen

Properties (4)

custom_field_three
FEW SLIGHT FRACTURES
custom_field_two
4
customer
LACSD
datetime
2016-09-22T00:22:03-07:00
