Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 15, 2016, 09:18 AM
Date
09/15/2016
W/O
0592017
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00645
PipeID
P13229
Time
2:18 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0278
Sewer Name
16 ARROYO SECO TRUNK, SECTION 2
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
20
Purpose
Routine Assessment
Project
20160915VMR_ARROYO_SECO_TRUNK_SECTION_2
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
16 0161
Downstream MH
16 0185
Dir. of Survey
Downstream
Length Surveyed
150.8 ft.
Total Length
150.8 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 16 0161 to 16 0185
MH: 16 0161MH: 16 0185downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02:18 AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0.1 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 18"0.2 ft. SAVC - Surface Aggregate Visible Chemical, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start106.2 ft. MGP - General Photograph149.7 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish149.7 ft. SAVC - Surface Aggregate Visible Chemical, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish150.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"150.8 ft. AMH - Downstream Manhole, Survey Ends - 02:46 AM

Observation photos (2)

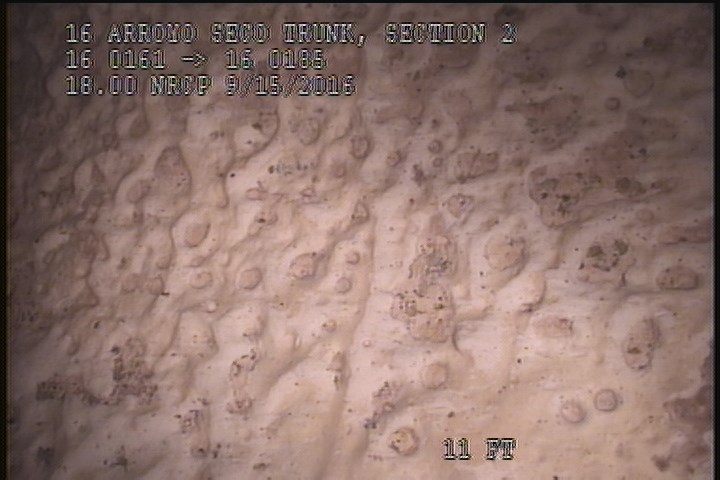

  • Surface Aggregate Visible Chemical, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    0.2 ft. - Surface Aggregate Visible Chemical, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

    106.2 ft. - General Photograph

All inspections of P13229Work order 0592017

Observations (11)

DistanceCodeObservation
2SAVC—
0AMH02:18 AM
106.2MGP—
150.8TF—
0.2SAVC—
150.8AMH02:46 AM
0MWL—
149.7SAVC—
0MWM—
0.1TFA—
149.7SAVC—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-09-15T02:18:35-07:00
