Wastewater/Activity/PacpInspection/1.0Sep 16, 2016, 06:00 PM
A 1083_A 1082_9162016_112526.mp4
- Date
- 09/16/2016
- W/O
- 0592183
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00337
- PipeID
- P21179
- Time
- 11:00 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7234
- Sewer Name
- A JOINT OUTFALL A - UNIT 6
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20160915AM_JOINT_OUTFALL_A_UNIT_6
- Material
- RCP-PTL
- Shape
- Circular
- Height
- 66 in.
- Upstream MH
- A 1083
- Downstream MH
- A 1082
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (4)

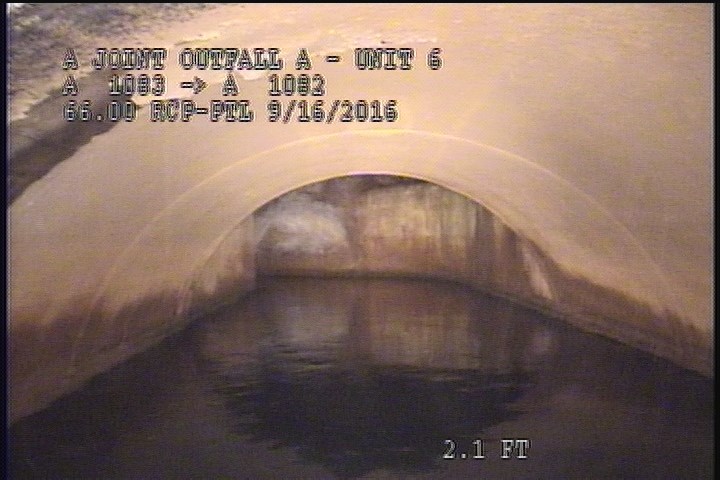

0 ft. - Upstream Manhole, Survey Begins - 11:24 AM

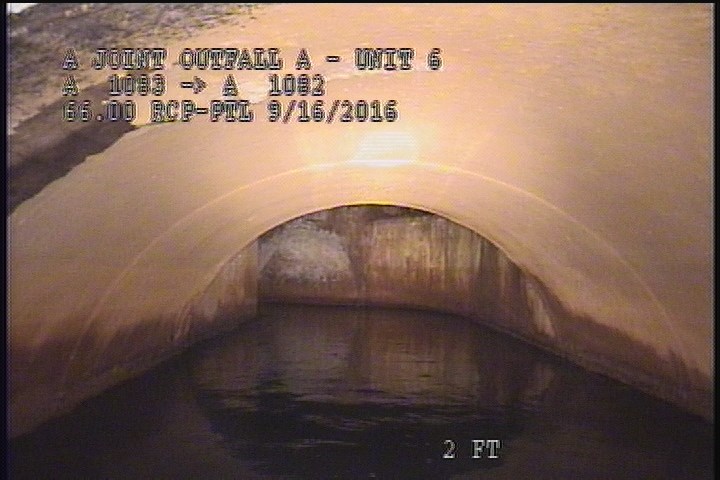

0 ft. - Water Level, 45 %of cross sectional area

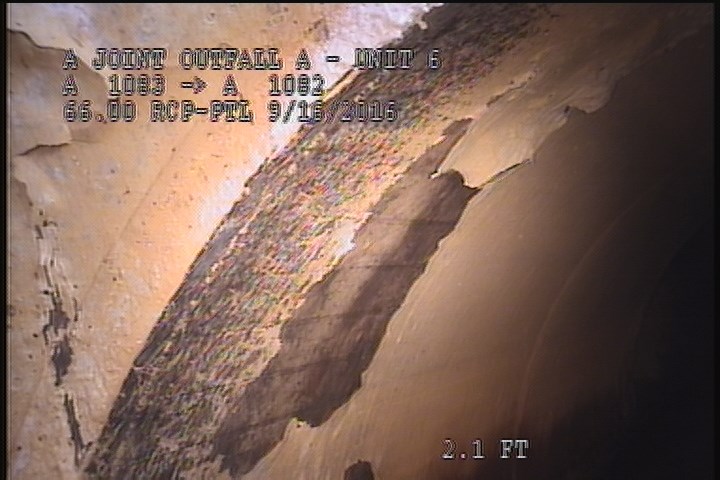

2 ft. - General Observation - MAG COAT SPRAYED ON TOP OF THE LINER IS PEELING/FLAKING OFF

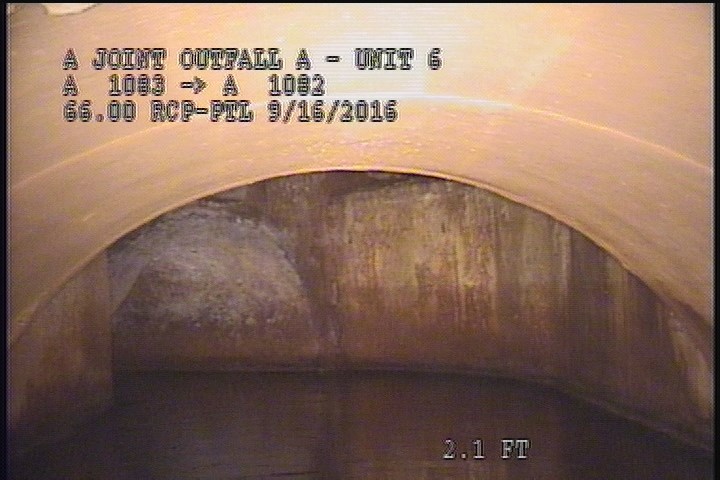

2.1 ft. - Upstream Manhole, Survey Ends - ABLE TO SEE MH. A 1082
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 11:24 AM |
| 0 | MWL | — |
| 2 | MGO | MAG COAT SPRAYED ON TOP OF THE LINER IS PEELING/FLAKING OFF |
| 2.1 | AMH | ABLE TO SEE MH. A 1082 |
| 0 | MWM | — |
Properties (4)
- additional_info
- JUST GOING TO HANG THE CAMERA IN THE CENTER OF THE MH. & ZOOM IN D/S TO MH. A 1082
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-16T11:00:06-07:00
