Wastewater/Activity/PacpInspection/1.0Sep 16, 2016, 05:49 PM
A 1084_A 1083_9162016_105138.mp4
- Date
- 09/16/2016
- W/O
- 0592183
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00337
- PipeID
- P21180
- Time
- 10:49 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7234
- Sewer Name
- A JOINT OUTFALL A - UNIT 6
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20160915AM_JOINT_OUTFALL_A_UNIT_6
- Material
- RCP-PTL
- Shape
- Circular
- Height
- 66 in.
- Upstream MH
- A 1084
- Downstream MH
- A 1083
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (5)

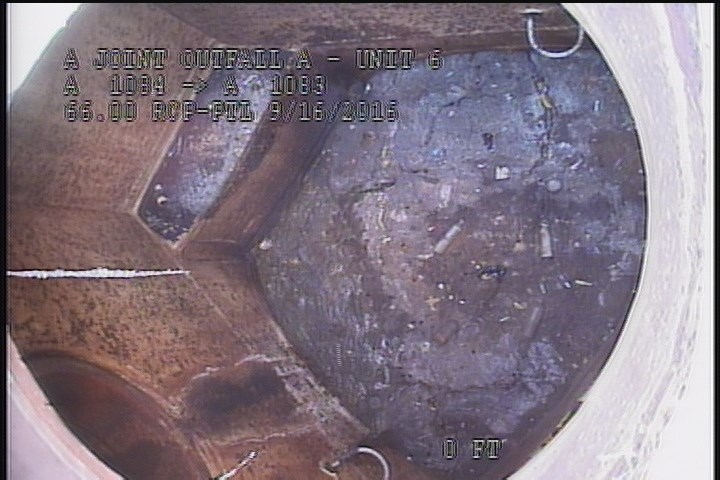

0 ft. - Water Level, 100 %of cross sectional area - WATER POSSIBLY UNDER THE LAYER OF DEBRIS

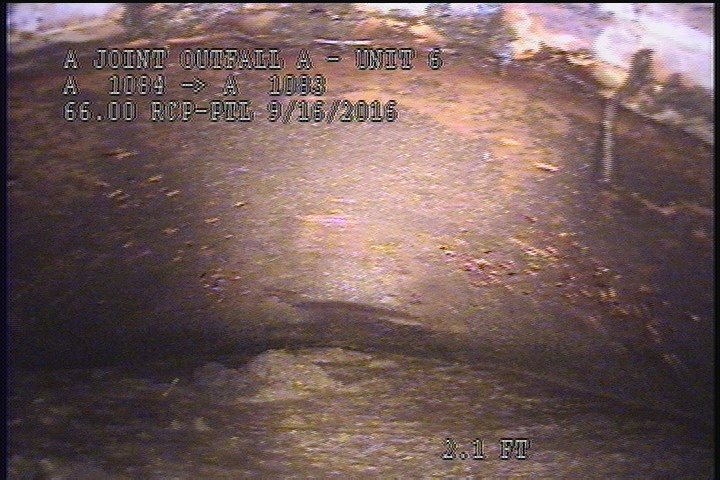

0 ft. - Upstream Manhole, Survey Begins - 10:50 AM

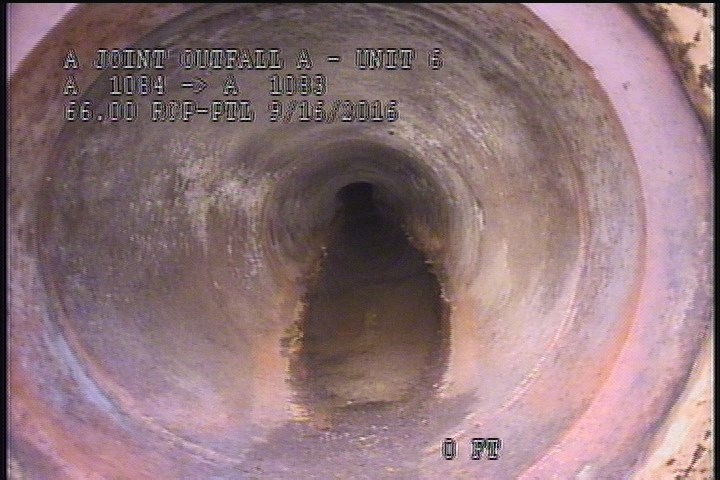

0 ft. - General Observation - AIRLINE

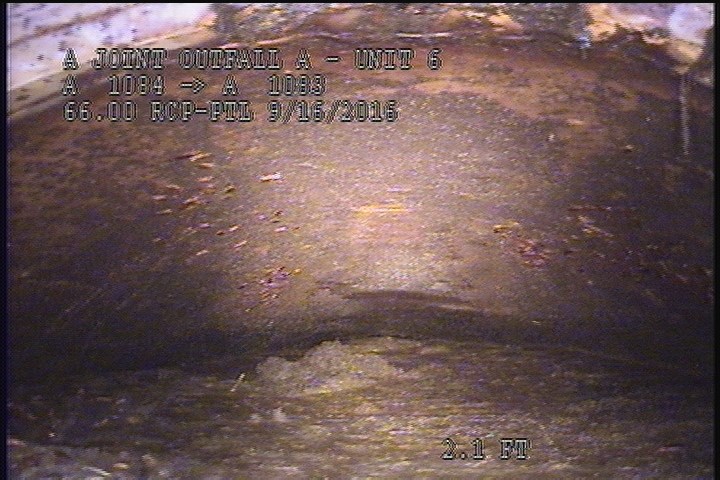

0 ft. - General Observation - ROACHES INSIDE THE MH.

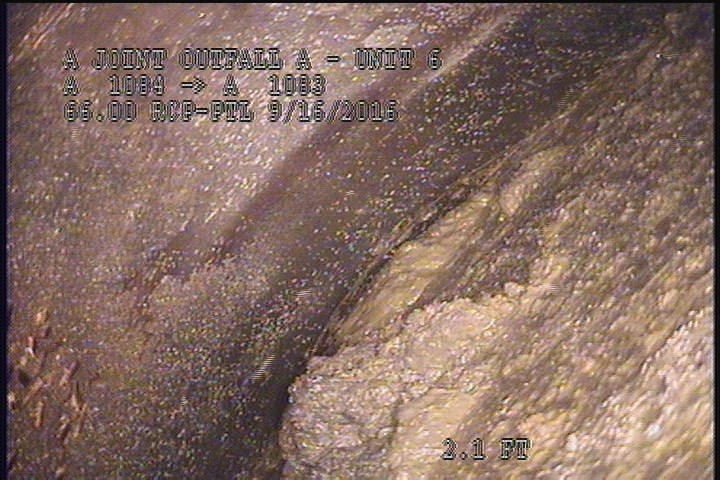

2.1 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON |
| 0 | MWL | WATER POSSIBLY UNDER THE LAYER OF DEBRIS |
| 0 | AMH | 10:50 AM |
| 0 | MGO | AIRLINE |
| 2 | LD | — |
| 0 | MGO | ROACHES INSIDE THE MH. |
Properties (4)
- additional_info
- VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-16T10:49:06-07:00
