Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 16, 2016, 03:14 PM

  • A 1080_A 1079_9162016_090047.mp4

Date
09/16/2016
W/O
0592183
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00337
PipeID
P21060
Time
8:14 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7234
Sewer Name
A JOINT OUTFALL A - UNIT 6
City
LONG BEACH
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
03
Purpose
Routine Assessment
Project
20160915AM_JOINT_OUTFALL_A_UNIT_6
Material
RGRCP-PTL
Shape
Circular
Height
66 in.
Upstream MH
A 1080
Downstream MH
A 1079
Dir. of Survey
Downstream
Length Surveyed
716.5 ft.
Total Length
716.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole A 1080 to A 1079
MH: A 1080MH: A 1079downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:59 AM0 ft. MWL - Water Level, 45 %of cross sectional area0 ft. MWM - Water Mark, 60 %of cross sectional area716.5 ft. AMH - Downstream Manhole, Survey Ends - 9:33 AM

Observation photos (2)

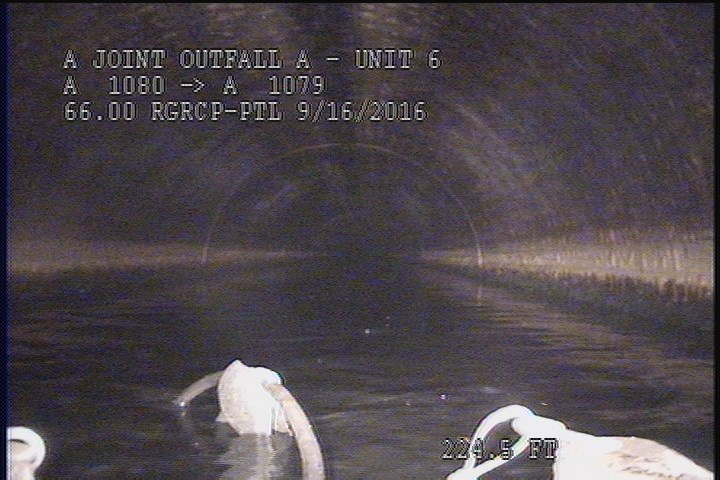

  • Upstream Manhole, Survey Begins - 8:59 AM

    0 ft. - Upstream Manhole, Survey Begins - 8:59 AM

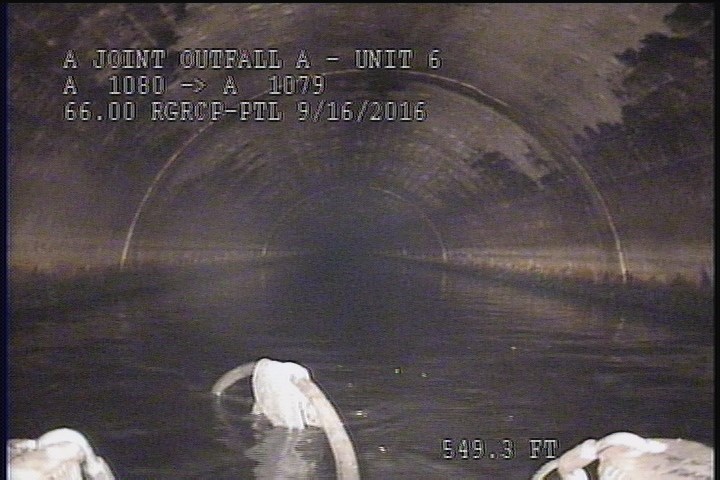

  • Water Level, 45 %of cross sectional area

    0 ft. - Water Level, 45 %of cross sectional area

All inspections of P21060Work order 0592183

Observations (4)

DistanceCodeObservation
0AMH8:59 AM
716.5AMH9:33 AM
0MWL—
0MWM—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-09-16T08:14:14-07:00
