Wastewater/Activity/PacpInspection/1.0Sep 10, 2016, 09:20 AM
02 2007_02 2006_9102016_023416.mp4
- Date
- 09/10/2016
- W/O
- 0595546
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00239
- PipeID
- P04361
- Time
- 2:20 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0271
- Sewer Name
- 02 BELVEDERE RELIEF TRUNK
- City
- LOS ANGLES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20160910MDM_BELVEDERE_RELIEF_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 02 2007
- Downstream MH
- 02 2006
- Dir. of Survey
- Downstream
- Length Surveyed
- 606.5 ft.
- Total Length
- 606.5 ft.
- Structural Index
- 2
- Structural Quick
- 2300
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

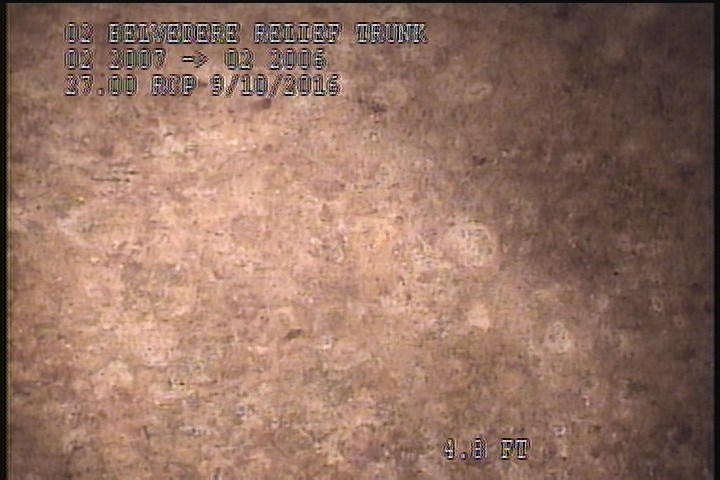

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - FLAKING,BLISTERING LAITANCE COAT

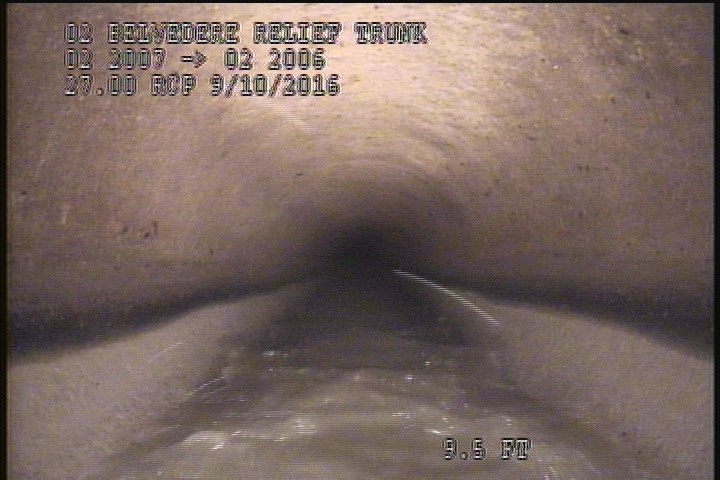

9.5 ft. - General Observation - 27" RCP

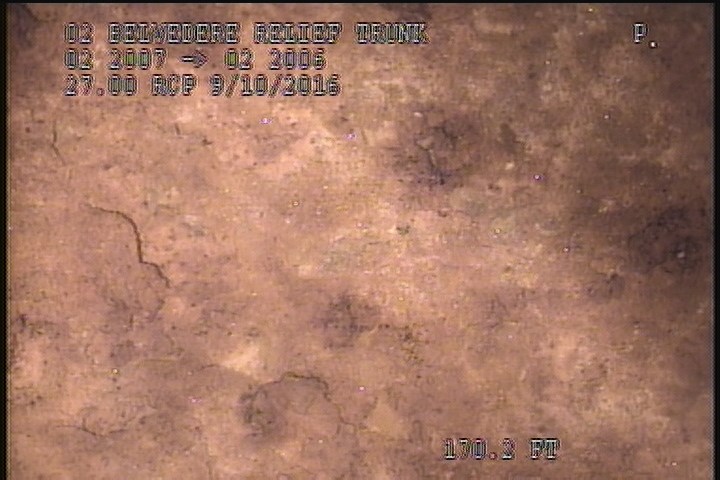

170.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - FLAKING,BLISTERING LAITANCE

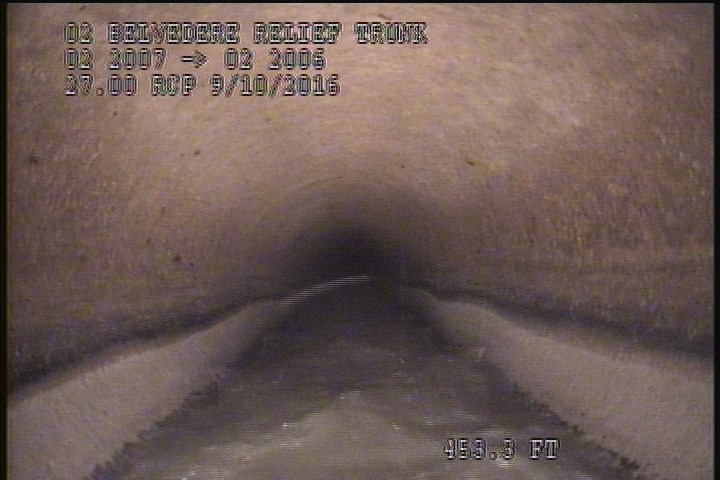

453.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 170.2 | SSS | FLAKING,BLISTERING LAITANCE |
| 0 | MWL | — |
| 453.3 | SSS | — |
| 0 | MWM | — |
| 2 | SSS | FLAKING,BLISTERING LAITANCE COAT |
| 9.5 | MGO | 27" RCP |
| 453.3 | MWL | — |
| 453.3 | MWM | — |
| 606.5 | AMH | 3:00AM |
| 0 | AMH | 2:25AM |
| 606.2 | SSS | FLAKING,BLISTERING LAITANCE COAT |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-10T02:20:00-07:00
