Wastewater/Activity/PacpInspection/1.0Sep 8, 2016, 05:17 PM
05 1967_05 1966_982016_104804.mp4
05 1967_05 1966_982016_110836.mp4
- Date
- 09/08/2016
- W/O
- PENDING
- Weather
- Very Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00503
- PipeID
- P07493
- Time
- 10:17 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Jetting
- Media Label
- G7227R
- Sewer Name
- 05 PV NORTH SLOPE TRUNK, SECTS 2&3
- City
- ROLLING HILLS ESTATES
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 34
- Purpose
- Maintenance Related
- Project
- 20160908AM_PV_NORTH_SLOPE_TRUNK_SECTS_2_3
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 14 in.
- Upstream MH
- 05 1967
- Downstream MH
- 05 1966
- Dir. of Survey
- Downstream
- Length Surveyed
- 407 ft.
- Total Length
- 407 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4131
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

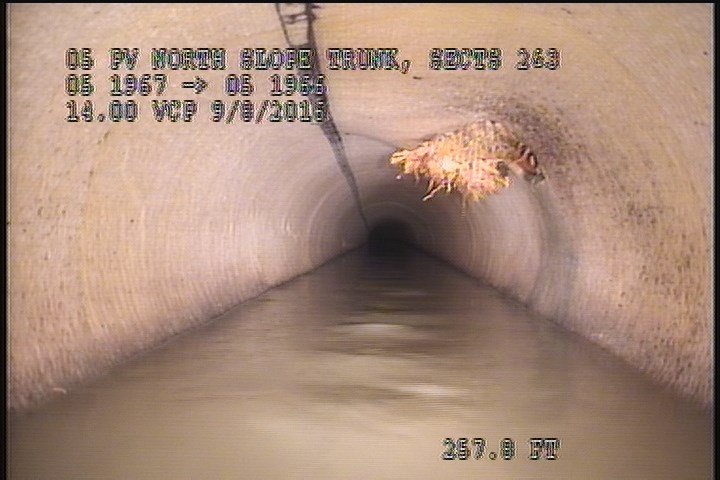

0 ft. - Water Level, 40 %of cross sectional area

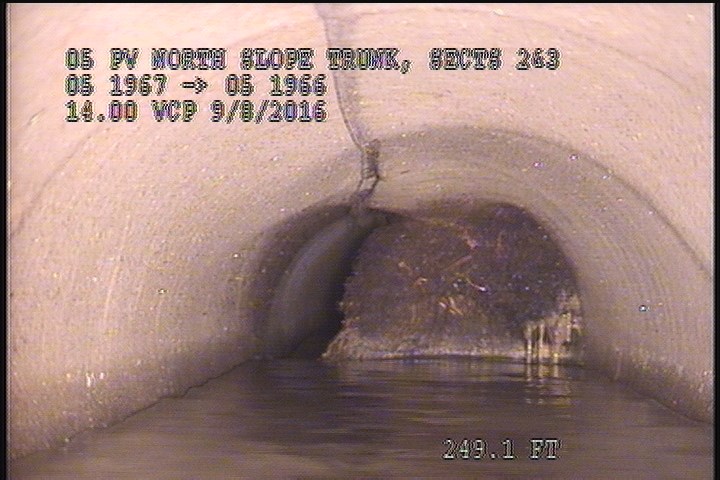

0 ft. - General Observation - ROOT EVALUATION ONLY

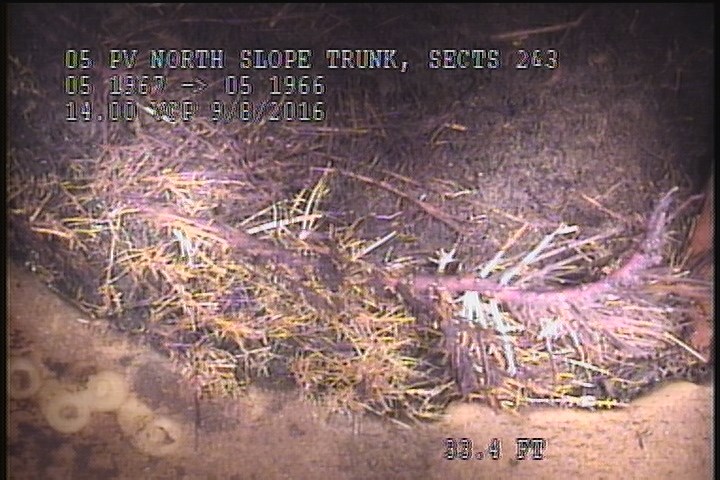

33.4 ft. - Roots Fine Lateral, at 11 o'clock

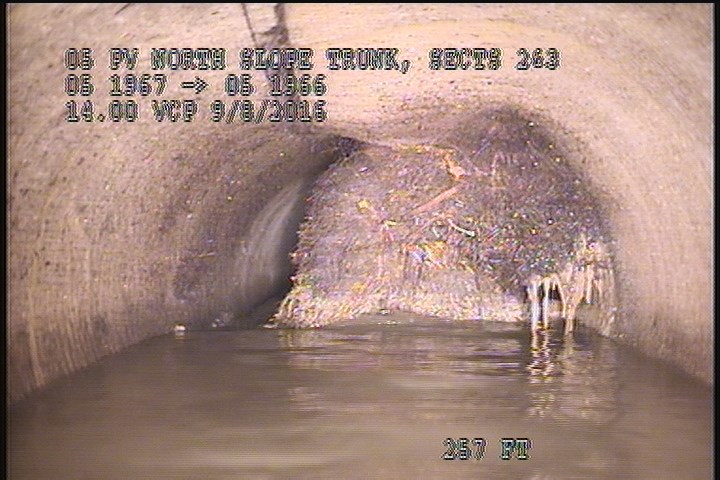

260.9 ft. - Roots Ball Lateral, from 11 to 04 o'clock, 80 %, within 8 inches of joint: NO
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 260.9 | RBL | — |
| 0 | AMH | 10:47 AM |
| 407 | AMH | — |
| 33.4 | RFL | — |
| 0 | MGO | ROOT EVALUATION ONLY |
| 260.8 | RML | — |
Properties (4)
- additional_info
- ROOT EVALUATION ONLY
- customer
- LACSD
- datetime
- 2016-09-08T10:17:32-07:00
- year_laid
- 19890621
