Wastewater/Activity/PacpInspection/1.0Sep 8, 2016, 07:43 AM
05 1968_05 1967_982016_014535.mp4
- Date
- 09/08/2016
- W/O
- 0585481
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00503
- PipeID
- P07494
- Time
- 12:43 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0269
- Sewer Name
- 05 PALOS VERDES NORTH SLOPE TRUNK, SECTS 2&3
- City
- PALOS VERDES
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- 20160906MDM_PALOS_VERDES_NORTH_SLOPE_TRUNK_SECTS_2_3
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 14 in.
- Upstream MH
- 05 1968
- Downstream MH
- 05 1967
- Dir. of Survey
- Downstream
- Length Surveyed
- 405.8 ft.
- Total Length
- 405.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2400
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

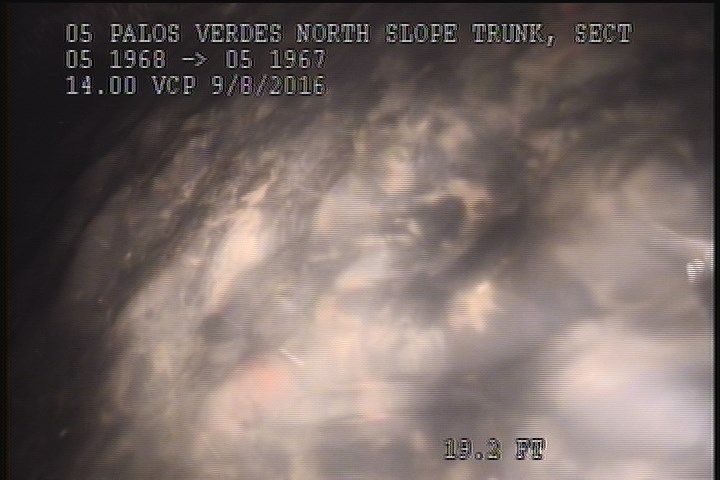

9.7 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - ROCKS

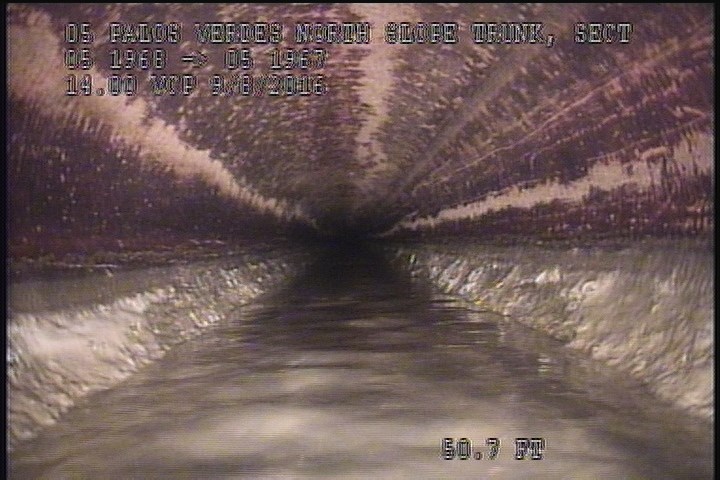

50.7 ft. - General Observation - 14" VCP -CIPP

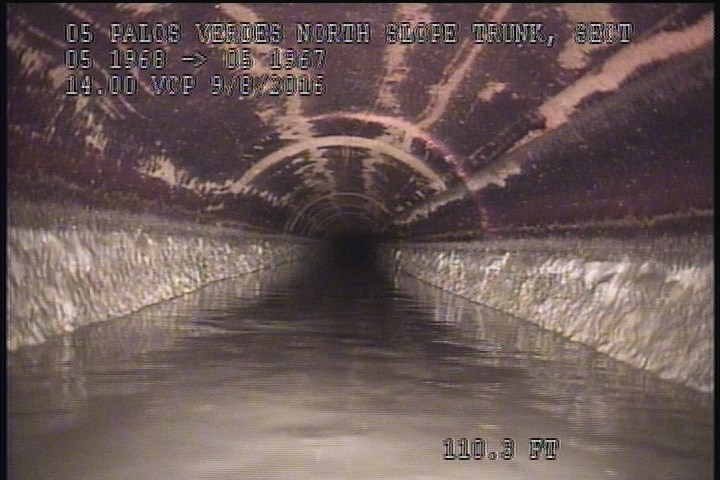

110.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1:45AM |
| 44.9 | DSZ | ROCKS |
| 50.7 | MGO | 14" VCP -CIPP |
| 70 | DSZ | ROCKS |
| 0 | MWM | — |
| 405.3 | DAGS | — |
| 86.2 | DSZ | ROCKS |
| 0 | MWL | — |
| 405.8 | AMH | 2:20AM |
| 111.8 | DSZ | ROCKS |
| 9.7 | DSZ | ROCKS |
| 110.3 | DAGS | — |
| 156 | DSZ | ROCKS |
Properties (2)
- customer
- LACSD
- datetime
- 2016-09-08T00:43:26-07:00
