Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 6, 2016, 07:53 AM

  • 05 1970_05 1969_962016_010712.mp4

Date
09/06/2016
W/O
0585481
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00503
PipeID
P07496
Time
12:53 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0267
Sewer Name
05 PALOS VERDES NORTH SLOPE TRUNK, SECTS 2&3
City
PALOS VERDES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
34
Purpose
Routine Assessment
Project
20160906MDM_PALOS_VERDES_NORTH_SLOPE_TRUNK_SECTS_2_3
Material
Vitrified Clay Pipe
Shape
Circular
Height
14 in.
Upstream MH
05 1969
Downstream MH
05 1970
Dir. of Survey
Upstream
Length Surveyed
288.4 ft.
Total Length
288.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 05 1969 to 05 1970
MH: 05 1969MH: 05 1970upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:35AM10 ft. MGO - General Observation - ZOOM 10' UPHILL TO SLIPPERY54.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open134.9 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - Open165.1 ft. MWM - Water Mark, 15 %of cross sectional area165.1 ft. MWL - Water Level, 5 %of cross sectional area240.9 ft. MWM - Water Mark, 15 %of cross sectional area280.4 ft. MGO - General Observation - 14" VCP -CIPP282.4 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: YES, 6" - Open 30% ROOTS288.4 ft. AMH - Downstream Manhole, Survey Begins - 12:55AM288.4 ft. MWL - Water Level, 10 %of cross sectional area288.4 ft. MWM - Water Mark, 30 %of cross sectional area

Observation photos (3)

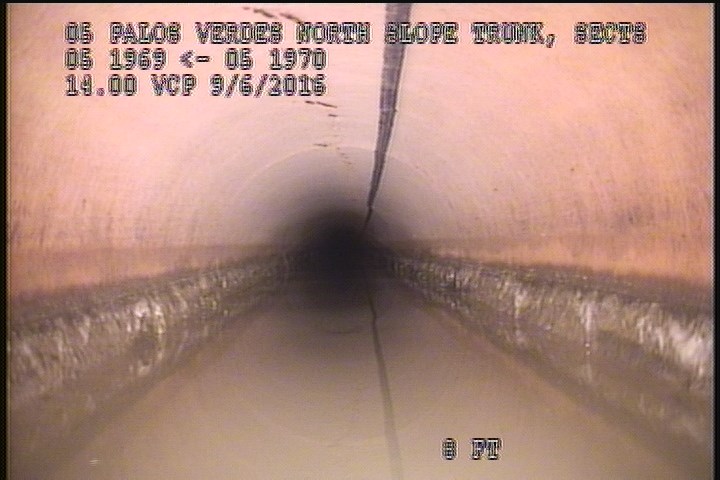

  • General Observation - 14" VCP -CIPP

    8 ft. - General Observation - 14" VCP -CIPP

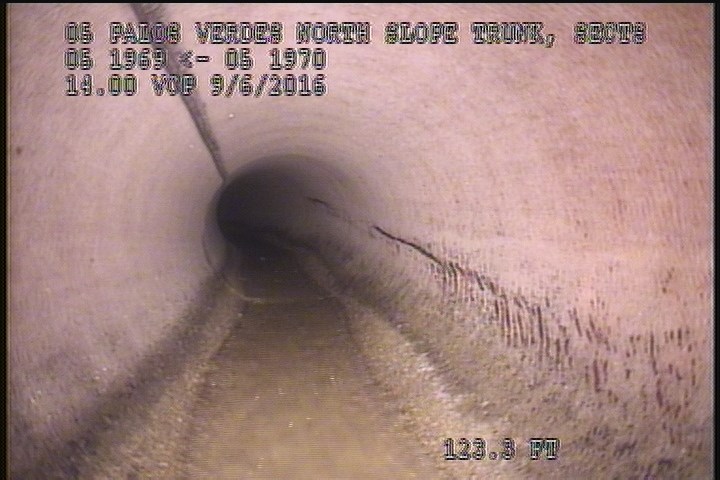

  • Water Level, 5 %of cross sectional area

    123.3 ft. - Water Level, 5 %of cross sectional area

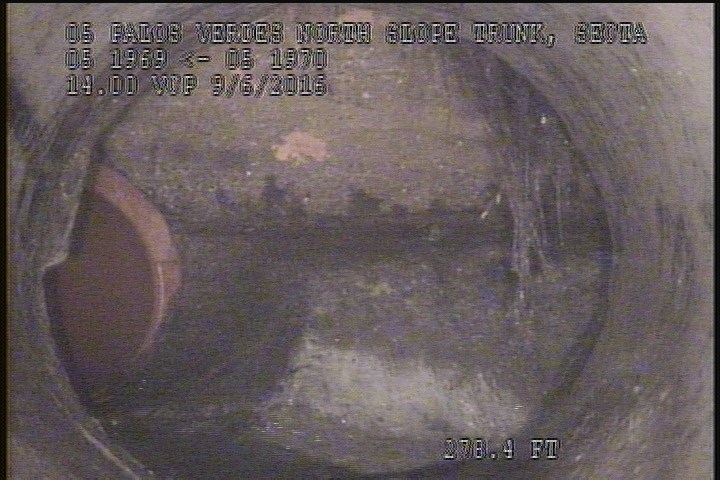

  • General Observation - ZOOM 10' UPHILL TO SLIPPERY

    278.4 ft. - General Observation - ZOOM 10' UPHILL TO SLIPPERY

All inspections of P07496Work order 0585481

Observations (12)

DistanceCodeObservation
288.4AMH1:35AM
0AMH12:55AM
8MGO14" VCP -CIPP
6TBDOpen 30% ROOTS
123.3MWM—
47.5MWM—
0MWL—
278.4MGOZOOM 10' UPHILL TO SLIPPERY
234.1TBOpen
153.5TBOpen
123.3MWL—
0MWM—

Properties (4)

custom_field_two
4
customer
LACSD
datetime
2016-09-06T00:53:15-07:00
year_laid
19890621
