Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 2, 2016, 07:38 AM
Date
09/02/2016
W/O
0591702
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00013
PipeID
P00373
Time
12:38 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0265
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
13
Purpose
Routine Assessment
Project
20160902VMR_KEYSTONE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0325
Downstream MH
08 0324
Dir. of Survey
Downstream
Length Surveyed
176.3 ft.
Total Length
176.3 ft.
Structural Index
2
Structural Quick
3129
Structural Rating
23
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole 08 0325 to 08 0324
MH: 08 0325MH: 08 0324downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01:58 AM0 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 10"4 ft. CC - Crack Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES4 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES7.3 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES7.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES9.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"9.6 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES9.6 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES12.6 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start12.6 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start36.3 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6"46 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish46 ft. CC - Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES46 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish52.5 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6"55.8 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Start55.8 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start79.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES171.2 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish171.2 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Finish176.3 ft. AMH - Downstream Manhole, Survey Ends - 02:30 AM

Observation photos (1)

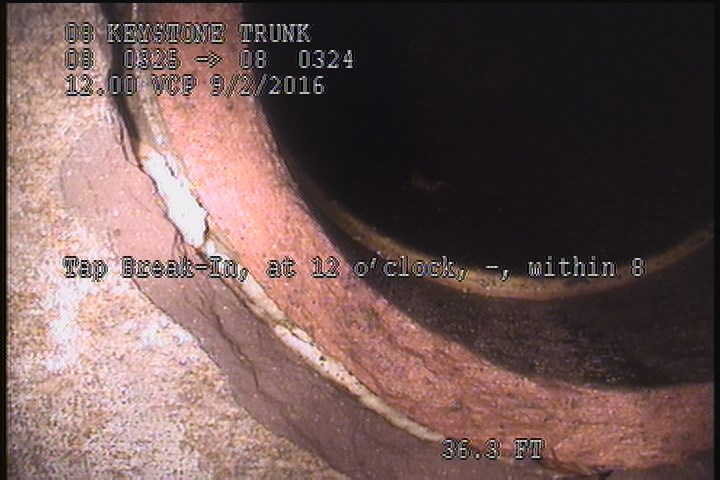

  • Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6"

    36.3 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6"

All inspections of P00373Work order 0591702

Observations (24)

DistanceCodeObservation
46CL—
0MWL—
46CC—
7.3CL—
46CL—
176.3AMH02:30 AM
12.6CL—
0MWM—
9.6CL—
0AMH01:58 AM
0TFA—
9.6CL—
36.3TB—
4CC—
79.3CM—
171.2CL—
55.8CL—
4CL—
55.8CL—
52.5TF—
12.6CL—
7.3CL—
9.2TFC—
171.2CL—

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2016-09-02T00:38:14-07:00
