Wastewater/Activity/PacpInspection/1.0Sep 3, 2016, 12:59 PM
19 0189_19 0188_932016_060146.mp4
- Date
- 09/03/2016
- W/O
- 0591703
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00726
- PipeID
- P15158
- Time
- 5:59 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7224
- Sewer Name
- 19 NORWALK BOULEVARD TRUNK
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- 20160902AM_NORWALK_BOULEVARD_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 19 0189
- Downstream MH
- 19 0188
- Dir. of Survey
- Downstream
- Length Surveyed
- 442.1 ft.
- Total Length
- 442.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (5)

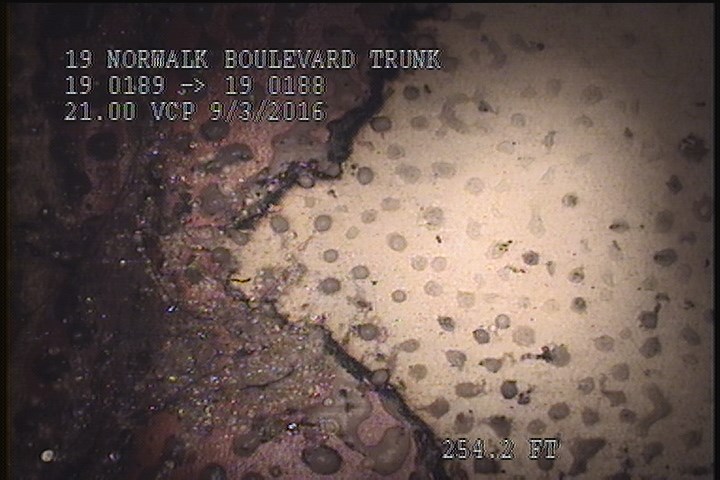

0 ft. - Upstream Manhole, Survey Begins - 6:00 AM

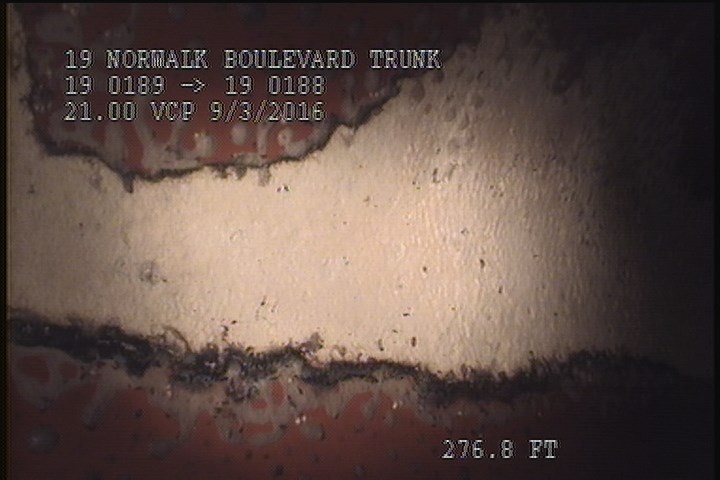

0 ft. - Water Mark, 25 %of cross sectional area

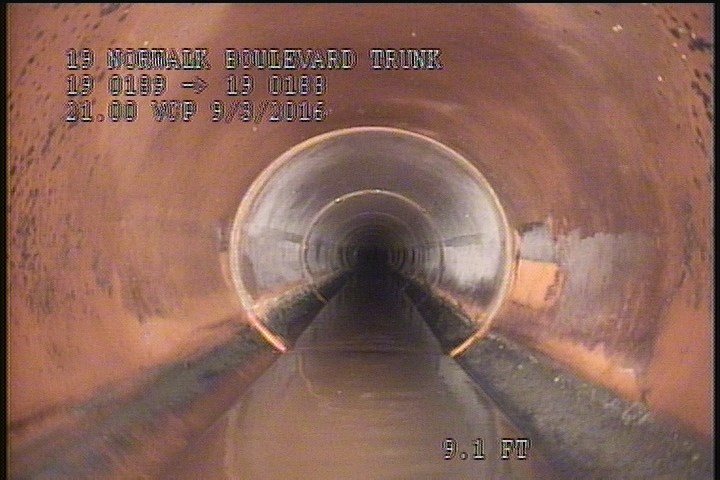

0 ft. - Water Level, 10 %of cross sectional area

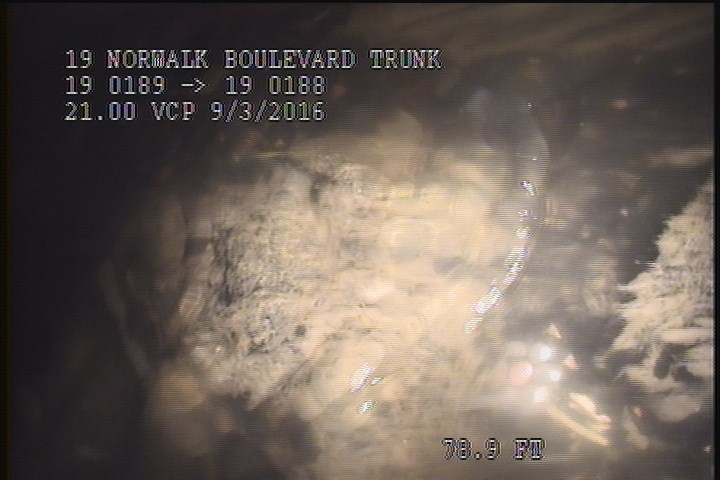

78.9 ft. - Deposits Attached Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

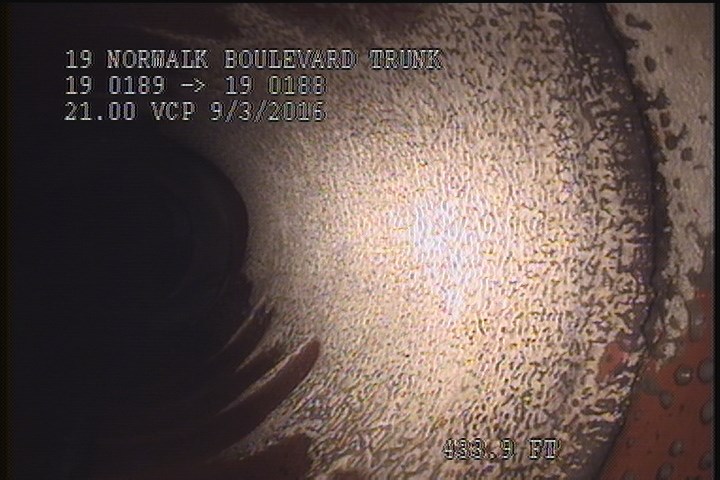

439.5 ft. - General Observation - SLIGHT GREASE/SCALE/CALCIUM THROUGHOUT THE REACH
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 328.4 | TF | OPEN |
| 204.2 | TFC | — |
| 0 | AMH | 6:00 AM |
| 0 | MWM | — |
| 439.5 | MGO | SLIGHT GREASE/SCALE/CALCIUM THROUGHOUT THE REACH |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 405.5 | TFC | — |
| 442.1 | AMH | 6:19 AM |
| 92.9 | DAZ | DEBRIS |
| 440.6 | MGO | ROACHES INSIDE THE MH. |
| 0 | MWL | — |
| 78.9 | DAZ | DEBRIS |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-03T05:59:22-07:00
