Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 1, 2016, 02:16 PM

  • 29 0292_29 0286_912016_094931.mp4

Date
09/01/2016
W/O
0591654
Weather
Dry
Operator/Surveyor
DEVIN FRANKLIN
Sewer ID
Z00375
PipeID
P24202
Time
7:16 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7223
Sewer Name
29 ORANGE AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
20160901DF_ORANGE_AVE_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0292
Downstream MH
29 0286
Dir. of Survey
Downstream
Length Surveyed
298.9 ft.
Total Length
298.9 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 29 0292 to 29 0286
MH: 29 0292MH: 29 0286downstream0 ft. AMH - Downstream Manhole, Survey Begins - 9:45 AM1 ft. MGO - General Observation - ROACHES IN MH1 ft. MWM - Water Mark, 10 %of cross sectional area1 ft. MWL - Water Level, 5 %of cross sectional area21.2 ft. TFD - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 6", 6" - OPEN/10% BLOCKED23.2 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 6", 6" - Capped67.6 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6", 6"71.5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 6"74.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 6"111.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 6"114.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 6"198.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 6"200.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 6"270.8 ft. MWLS - Water Level, Sag in pipe, 15 %of cross sectional area, Start277.9 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area, Change298.9 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area, Finish298.9 ft. AOC - Drop Connection, Survey Ends - 10:32 AM

Observation photos (4)

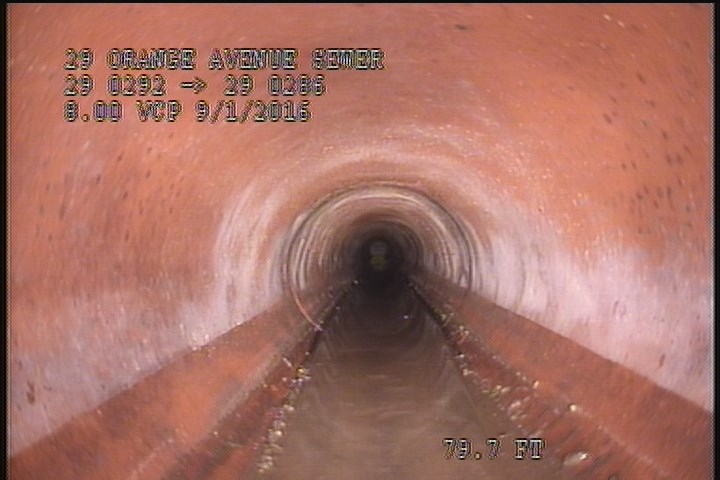

  • Water Level, Sag in pipe, 15 %of cross sectional area, Start

    270.8 ft. - Water Level, Sag in pipe, 15 %of cross sectional area, Start

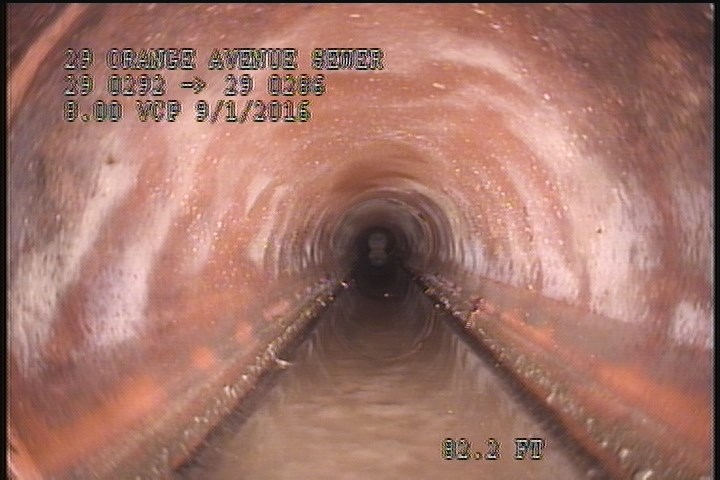

  • Water Level, Sag in pipe, 20 %of cross sectional area, Change

    277.9 ft. - Water Level, Sag in pipe, 20 %of cross sectional area, Change

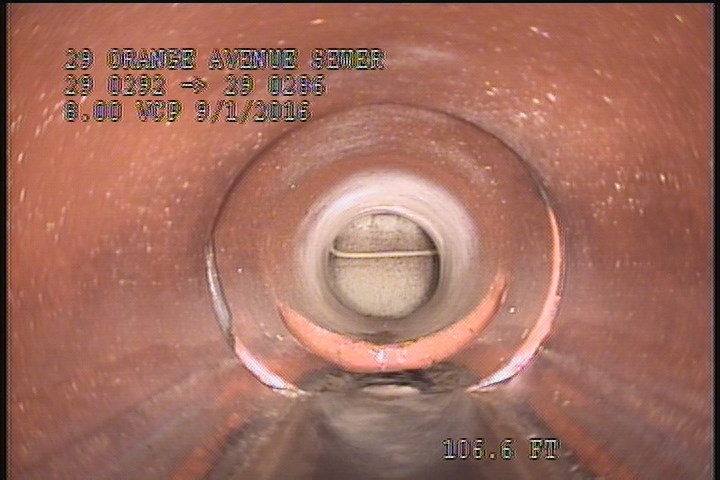

  • Water Level, Sag in pipe, 20 %of cross sectional area, Finish

    298.9 ft. - Water Level, Sag in pipe, 20 %of cross sectional area, Finish

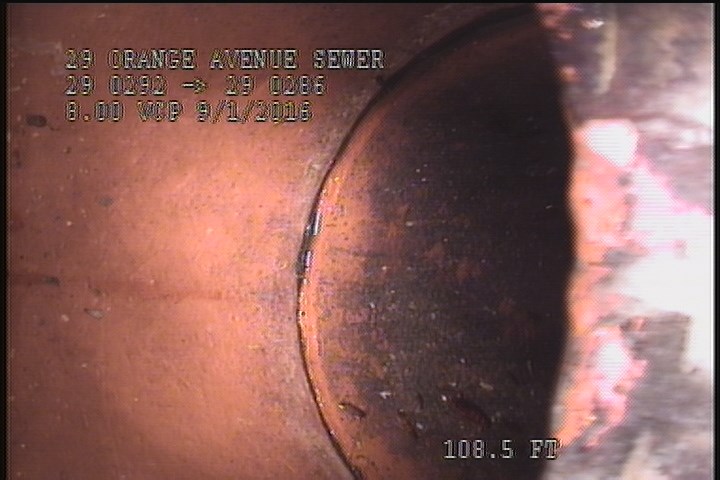

  • Drop Connection, Survey Ends - 10:32 AM

    298.9 ft. - Drop Connection, Survey Ends - 10:32 AM

All inspections of P24202Work order 0591654

Observations (17)

DistanceCodeObservation
0AMH9:45 AM
1MGOROACHES IN MH
74.1TFC—
198.1TFC—
111.9TFC—
71.5TFC—
67.6TBA—
298.9MWLS—
1MWM—
270.8MWLS—
21.2TFDOPEN/10% BLOCKED
23.2TFCCapped
200.9TFC—
1MWL—
277.9MWLS—
298.9AOC10:32 AM
114.7TFC—

Properties (5)

custom_field_three
PIPE IN GOOD CONDITION
custom_field_two
4
customer
LACSD
datetime
2016-09-01T07:16:31-07:00
year_laid
20070801
